Configuring Through a Web Browser

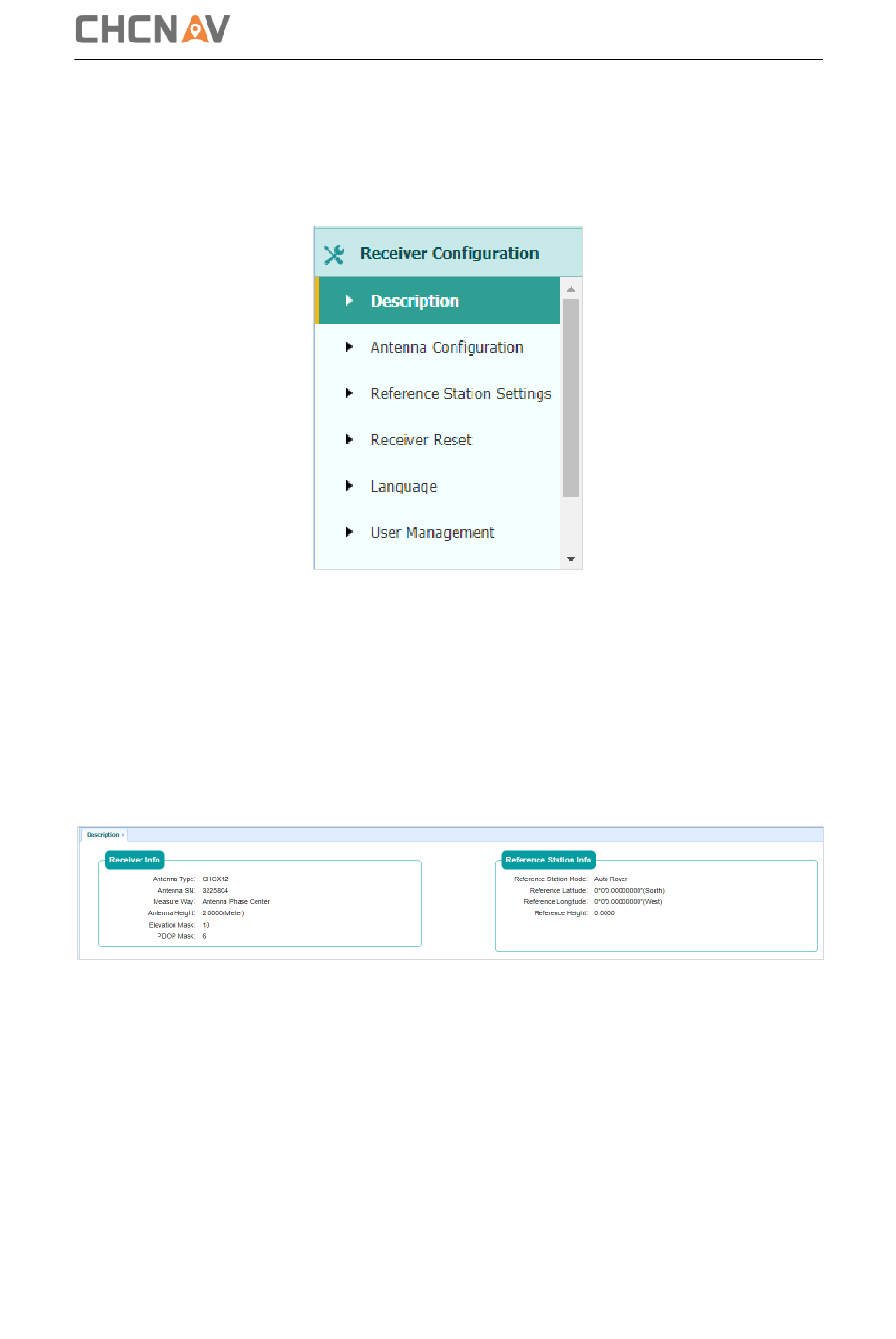

5.3 Receiver Configuration Menu

Use this menu to configure settings such as the antenna type and height, elevation mask and
PDOP setting, the reference station coordinates, receiver resetting and web interface language:

5.3.1 Description

This submenu shows the receiver information and reference station information, including
antenna related information, elevation mask angle, reference station work mode and position,
etc.

5.3.2 Antenna Configuration Submenu

Use this screen to configure all the items related to the GNSS antenna. You must enter the
correct values for all antenna-related fields, because the choices you make affect the accuracy
for logged data and broadcast correction data significantly:
