Real-Time Rover Station Setup - CHCNAV iBase GNSS User Manual

Steps:
(1)
Put tripod in the target position, center and level it roughly.
(2)
Place and lock the tribrach in the tripod.
(3)
Insert the batteries into the receiver.
(4)
Screw the receiver onto the tribrach.
(5)
Center and level the receiver more precisely.
(6)
Connect the receiver to external datalink by using GPS to datalink cable.
(7)
Hang the external datalink on the tripod leg.
(8)
Connect the receiver to external battery by using external power cable if necessary.
(9)
Connect the receiver to external storage disk by using USB cable if necessary.
(10)
Turn on the receiver by pressing the power button for 3 s.
(11)
Measure the antenna height by using H.I. tape and auxiliary H.I. tool.
(12)
Turn on the external datalink and configure it as need.
If work with a data controller:
(13)
Switch on the data controller and connect it to the receiver.
(14)
Use software to configure the receiver as cellular base or UHF base mode.

4.3 Real-Time Rover Station Setup

For good performance, the following rover station setup guidelines are recommended:

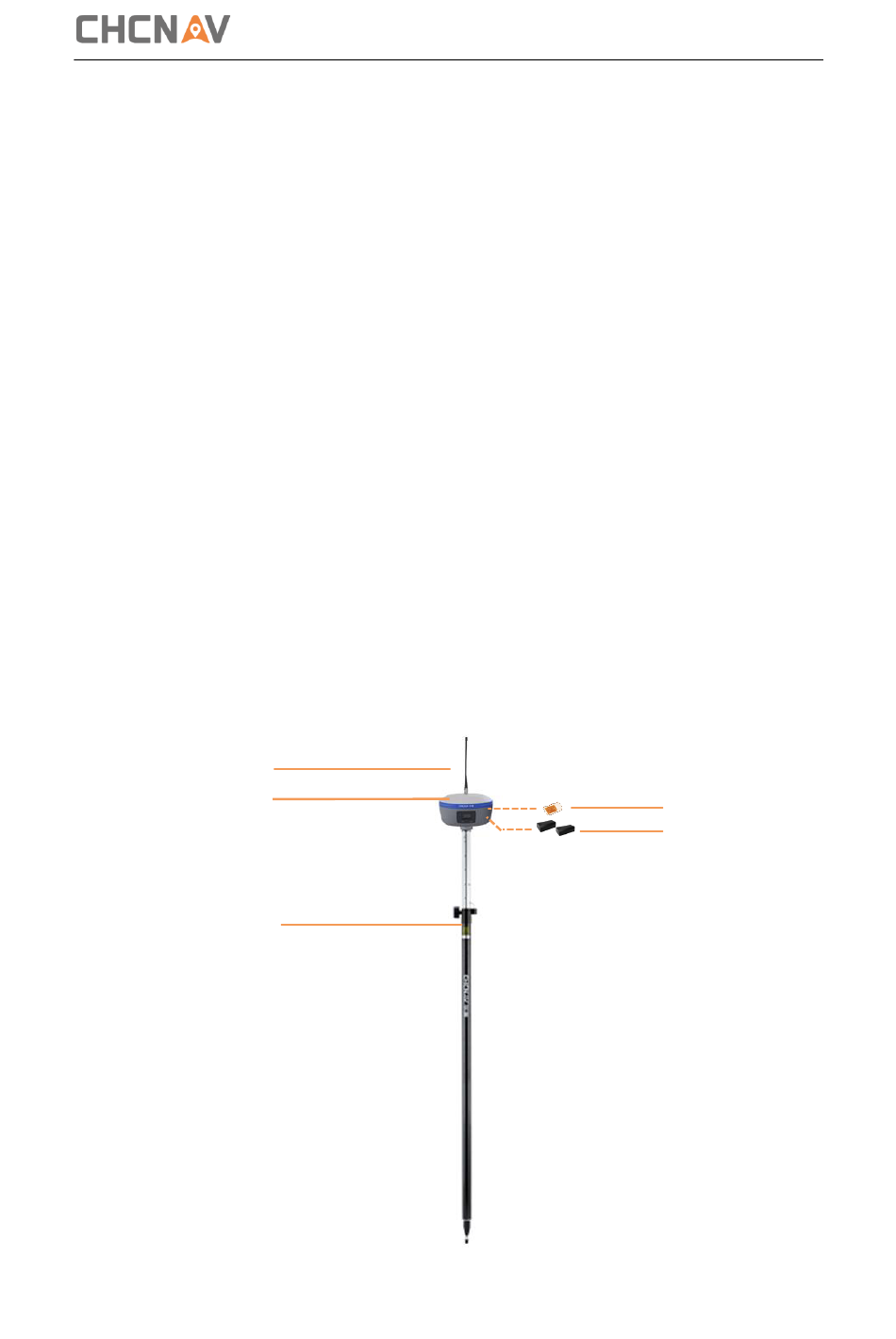

Components:
