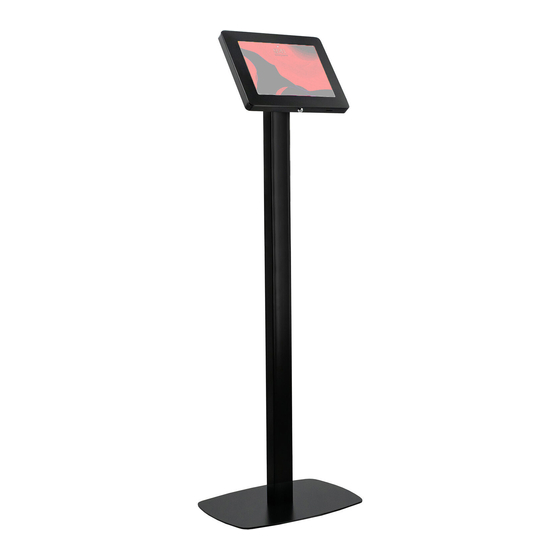

Premium Thin Profile Floor Stand
CONTENTS:
A
B
E
M5 Nut
INSTRUCTIONS:
1. INSTALLING BASE:
ALIGN BASE PLATE (B) WITH THE BODY (A) AND
ROTATE IN SCREWS (G) FROM THE BOTTOM USING THE PROVIDED
ALLEN KEY TOOL (H) AND RELATED HARDWARE NEEDED.
A
G
H
with Security Enclosure
PAD-CHKB / PAD-CHKW
INSTRUCTION - MANUAL
C
F
G
M5x12 (4)
M5x12 (4)
D
x2
Metal Anchor
H
M5 Allen Key
Foam Adapter & Sheet Bundle
2. SETTING UP
CABLE ROUTING
SLIDE IN THE POWER CORDS
AND ANY OTHER CORDS THAT
WOULD NEED TO BE
CONNECTED TO THE TABLET
THROUGH THE BODY AS
SHOWN. THERE WILL BE GAPS
AT THE TOP AND BOTTOM FOR
THEM TO ROUTE OUT TO THE
POWER SOURCE AND TO THE
DEVICE
**Wire and Cord for Illustration
Purposes Only and Not Included
888-733-4448
I
x2
J
