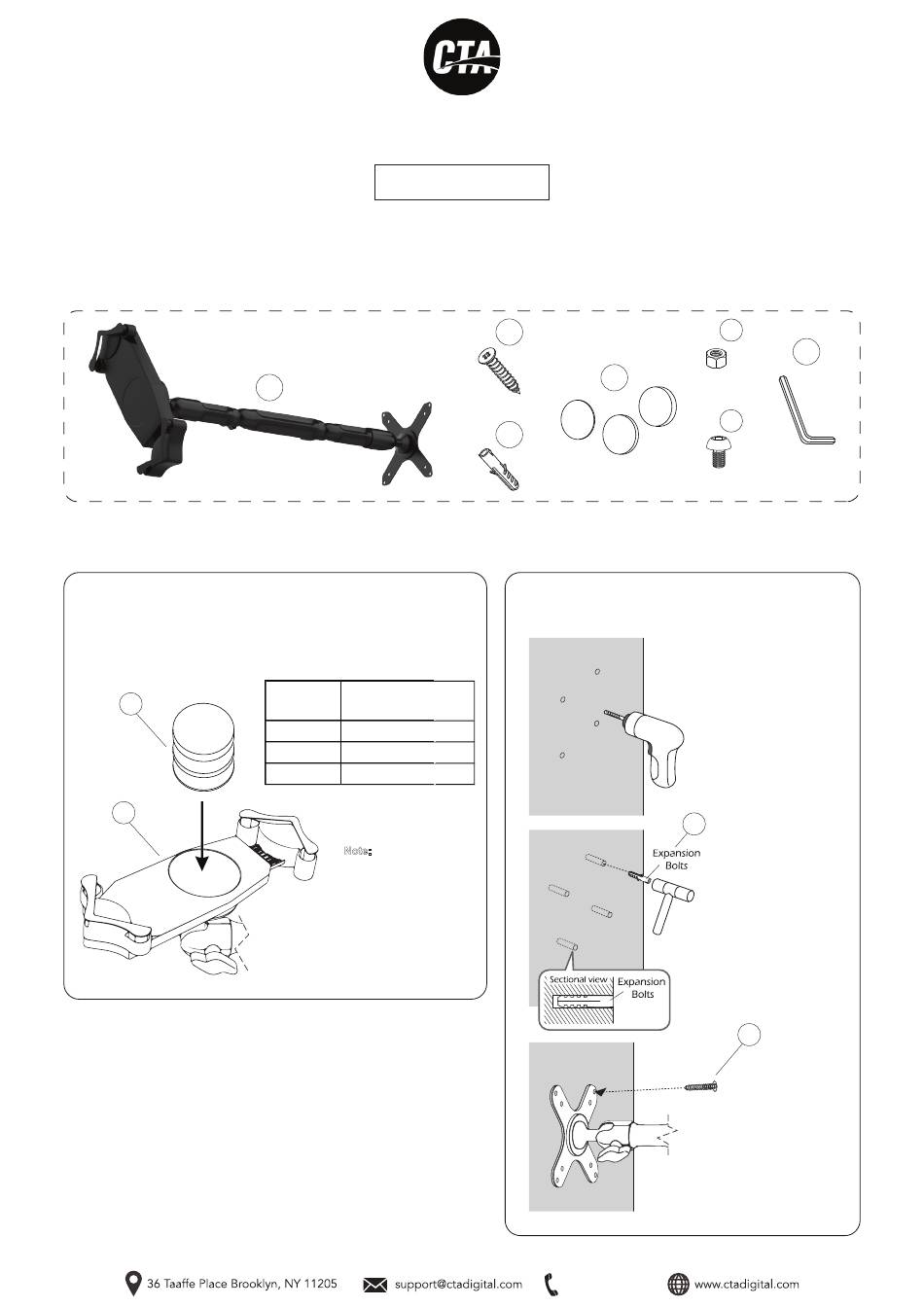

CONTENTS:
INSTRUCTIONS:
1. Attaching Foam Pad to Tablet Holder
Select the appropiate foam pad (D) according to the thickness of
your tablet (or tablet in its case), then press adhesive side into
center of the tablet holder.
D
10mm
5mm
1mm
A

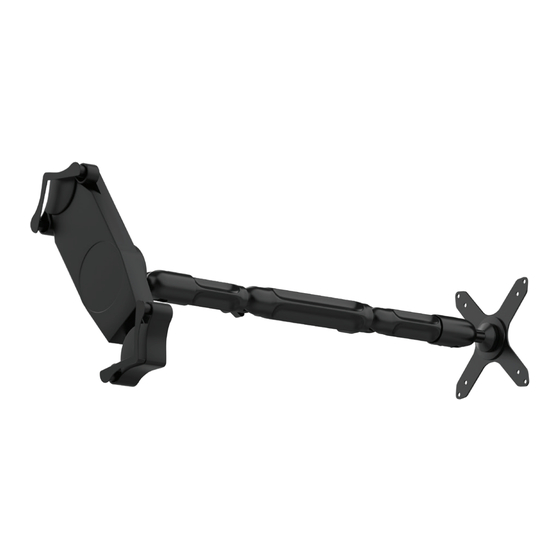

Custom Flex Wall Mount
PAD-CFWM
INSTRUCTION - MANUAL
A
x1
Foam Pad
Tablet Thickness:
Thickness:
1mm
0.67-1.06in / 17-27mm
5mm
0.51- 0.91in / 13-23mm
10mm
0.31- 0.71in / 8-18mm
Use the table above to
determine the appropiate
foam pad (D) to use with
your tablet.
Note: sizes refer to total
tablet size with or without
a case
B
x4
D
4.8x40mm
C
x4
2. Installing the Custom Flex Wall
Mount to the Wall
888-733-4448
E
G
x4
M5 Nut
x1
F
x1
x4
M5x12
**Drill for illustration
only and not included
2a. Drill the holes in
the wall to these
specifications:
diameter: 6.5~7mm
depth: 40~45mm
C
2b. Knock the
expansion bolts
(C) completely
into the wall.
B
2c. Fix it with the
screws (B) to the
wall.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CTA PAD-CFWM
Summary of Contents for CTA PAD-CFWM
- Page 1 Custom Flex Wall Mount PAD-CFWM INSTRUCTION - MANUAL CONTENTS: M5 Nut 4.8x40mm M5x12 INSTRUCTIONS: 1. Attaching Foam Pad to Tablet Holder 2. Installing the Custom Flex Wall Mount to the Wall Select the appropiate foam pad (D) according to the thickness of your tablet (or tablet in its case), then press adhesive side into center of the tablet holder.
- Page 2 3. Inserting Tablet to Holder **Tablet for illustration only and not included 3b. Insert tablet corner against the spring arm. Push adjustable arm down 3a. Press quick release button on side of tablet against opposite corner (A). Be sure it is as snug as possible. Be sure to not holder (A) to release the adjustable end.
