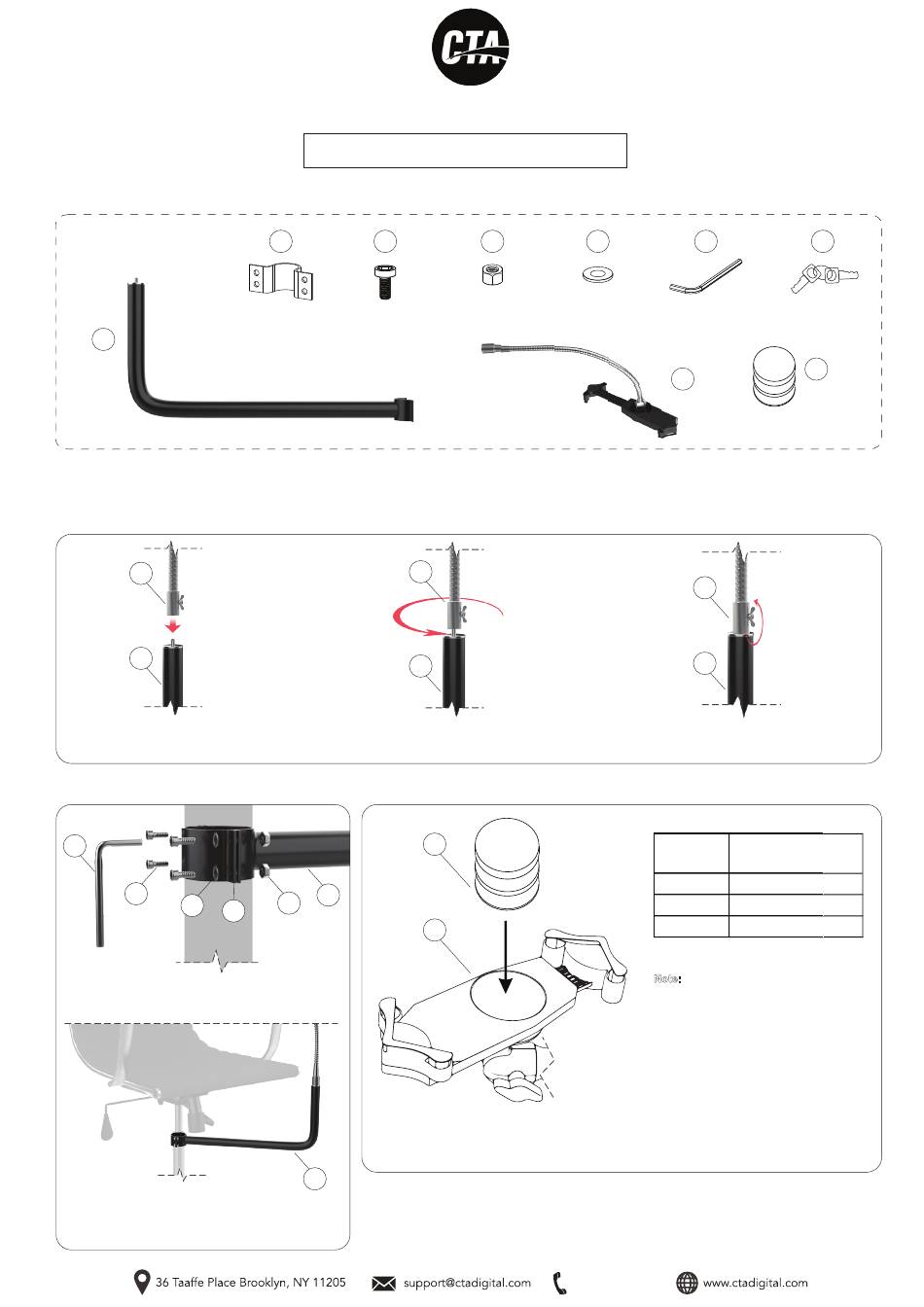

CTA PAD-CHAIRPB Instruction Manual

CONTENTS:
Outer Clamp
A
Base
x1
INSTALLATION:
1. Connecting Base with Gooseneck
B
A
1A. Align the base (A) with
the gooseneck (B).
2. Attaching Base to Chair
G
D
F
C
2A. Align both sides of the hoop (A and C) to the
chairs cylinder.
**Chair shown for
example and NOT included
2B. While holding the (4) Hex Nuts (B) in the back,
align the Washers (F) and the (4) Bolts (D) with the
holes. Use the included Allen Key (G) tool to screw
the (4) Bolts until securely tightened.
Gooseneck Chair Clamp
PAD-CHAIRPB - PAD-CHAIRPW
INSTRUCTION - MANUAL
C D
x4 x4
Bolt
B
A
1B. While aligned, rotate the goosenecks base
(B) until completely secured.
3. Attaching Foam Pad to Tablet Holder
I
A
E
B
3A. Select the appropiate foam pad (I) according to the thickness of your tablet (or tablet in
A
E F
x4 x4
Hex Nut Washer
Gooseneck &
Tablet Holder
1C. Rotate butterfly knob to securely fasten
gooseneck (B) to body (A).
10mm
5mm
1mm
its case), then press adhesive side into center of the tablet holder.
888-733-4448
G H
x1
Allen Key 2 Keys
I
B
10mm
x3
5mm
x1
1mm
Foam Pads
B
A
Foam Pad
Tablet Thickness:
Thickness:
1mm 0.67-1.06in / 17-27mm
5mm 0.51- 0.91in / 13-23mm
10mm 0.31- 0.71in / 8-18mm
- Use this table to determine the appropiate
foam pad (B) to use with your tablet.
Note: sizes refer to total tablet size with or
without a case
x1
