NEXSYS Series Compact PDU User Manual

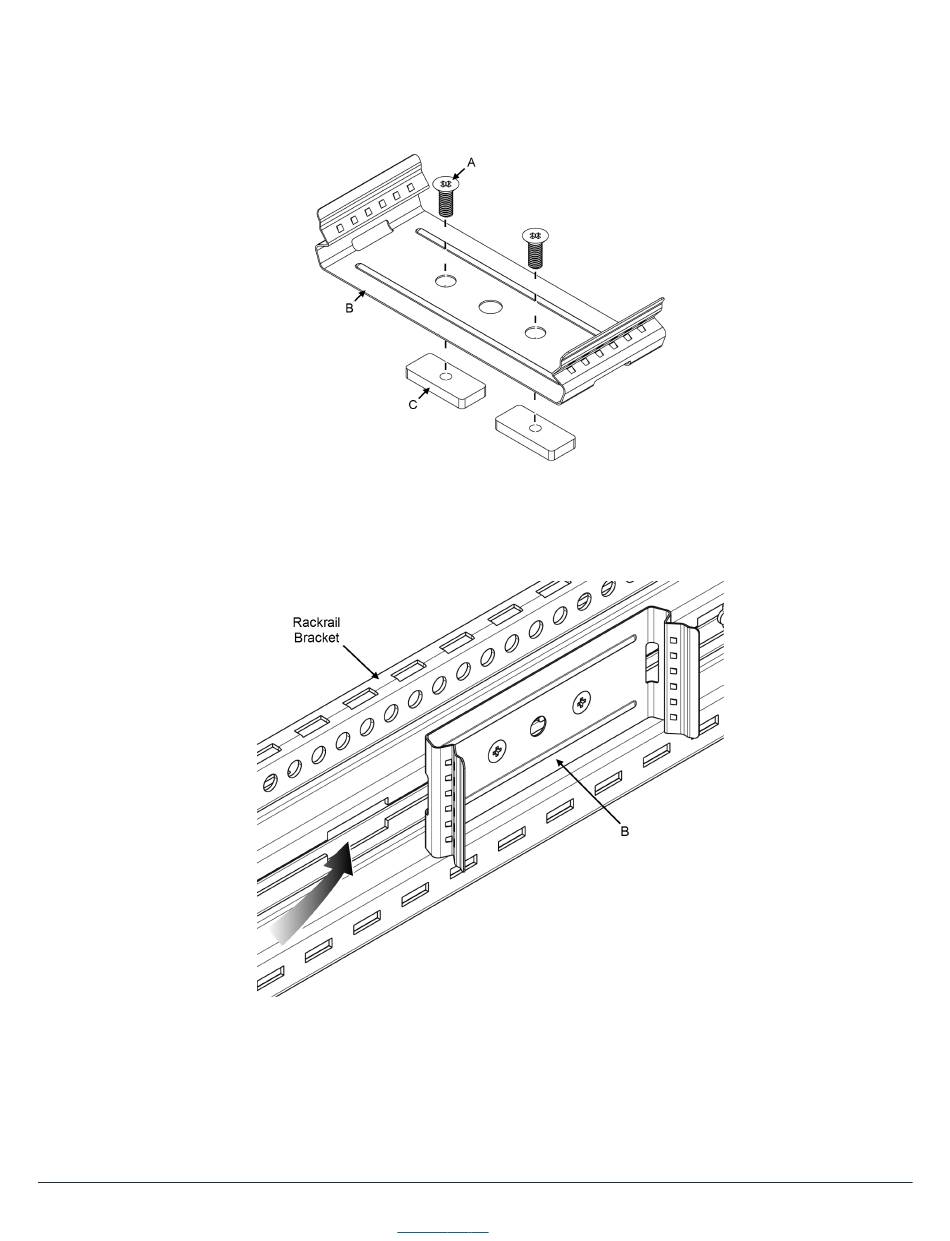

1. Put (2x) mounting clip screws (A) through holes on the mounting clip (B), and thread them

(approximately 2-3 full clockwise turns) into (2x) rectangular nuts (C) as shown.

2. Insert the rectangular nuts (C, partially assembled to the clip with the screws) through a

nearby slot opening in your desired location along one of your enclosure's rackrail brackets.

3. Use a #2 Phillips screwdriver and tighten the (2x) mounting clip screws (A) until the clip (B) is

securely fixed in your desired position along the rackrail bracket.

Mounting Your Compact PDU on Rackrail Brackets or 10"

Legrand AV,

Lever Lock Plates
