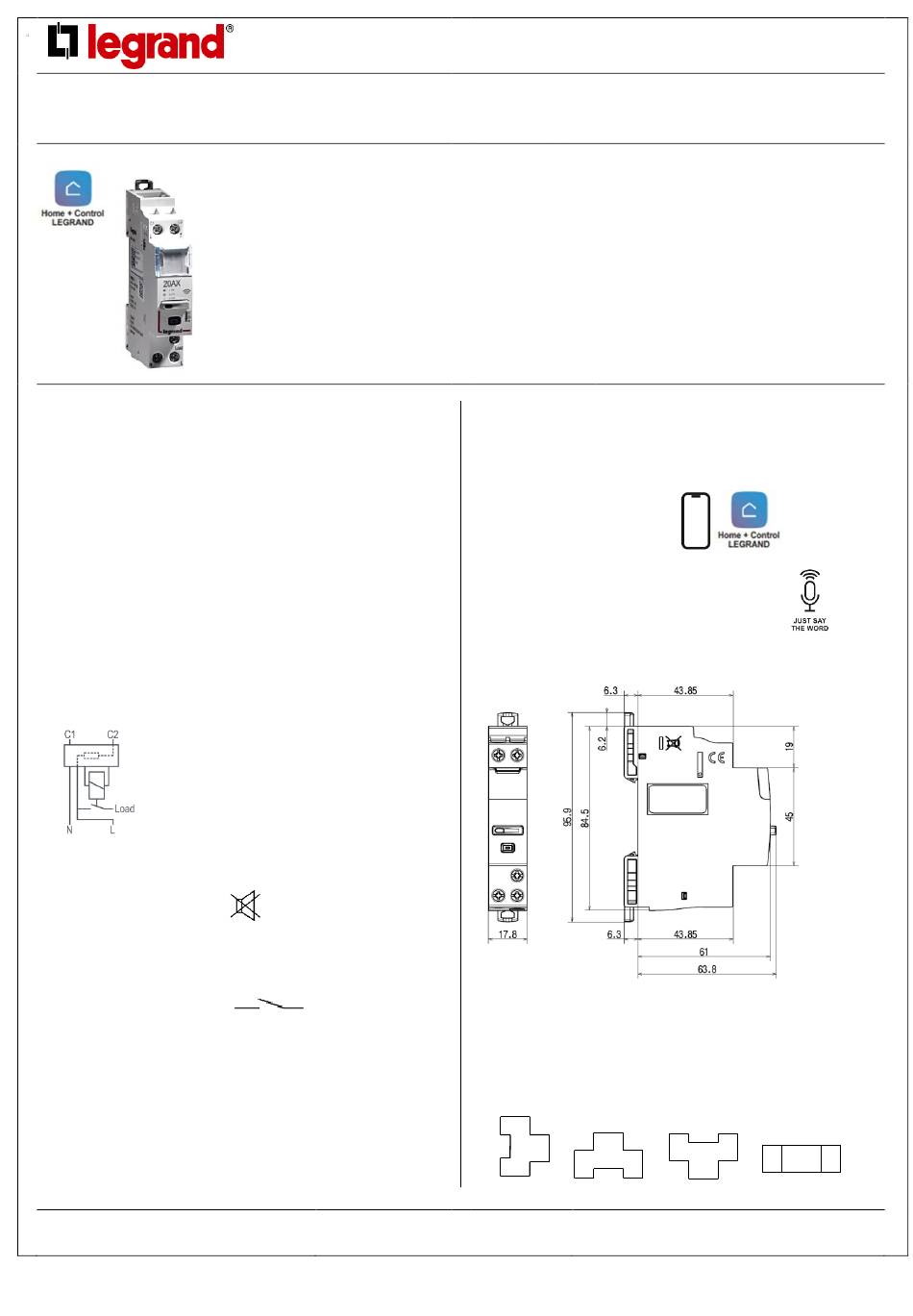

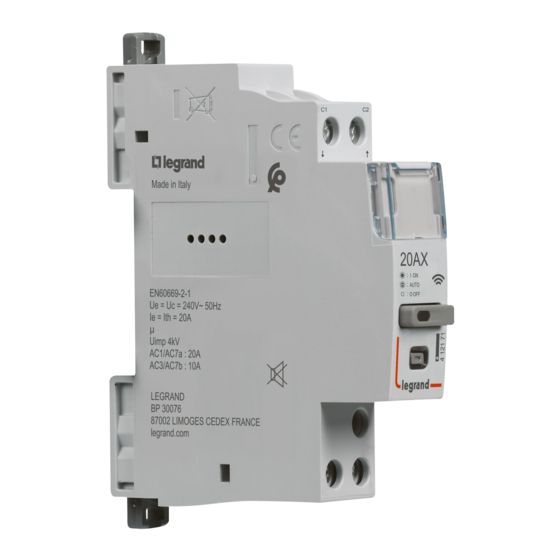

LEGRAND 4 121 71 Manual

Connected Contactor
1. DESCRIPTION - USE
Use:
Enables to remotely control (ON / OFF) loads (like water heater
swimming pool pomp, heaters, charging plug for electric cars...) by
smartphone with Home + Control app and / or by voice via a voice
assistant. This connected version also offers functions such as:
- Energy consumption: automatically
information is available for the circuit to whom the connected
contactor is wired to.
- Scheduling: automatic opening and reclosing action scenarios
based on a timeline. (daily/weekly/specific event such as
"holidays")
Technology:
. Connected contactor with control by single contact, via
smartphone, voice assistants and / or by its own push button on
the front.
Symbol :
2. RANGE
Noise level:
. Noiseless switch: <10bB.
Width:
. 1 module. 17.8 mm wide.
Types of contact:
. Normally open contact type
Rated current:
. 20 A
Rated voltage:
. 100 to 240V AC
Rated frequency:
. 50 / 60 Hz
Poles:
. 1 pole « NO »
Technical data sheet: F03037EN/03
Requires prior installation
of a "with Netatmo"
connected starter pack or
a Gateway module.
energy consumption
Updated on: 31/08/2020
87045 LIMOGES Cedex - FRANCE
Telephone : +33 (0)5 55 06 87 87 - Fax : +33 (0)5 55 06 88 88
Cat. number : 4 121 71 / 4 121 91
CONTENTS
1. Description - Use .....................................1
2. Range ..........................................................1
3. Overall dimensions ...................................1
4. Preparation - Connection .......................1
5. General characteristics ...........................6
6. Compliance and approvals .................... 7
7. Auxiliaries and accessories ................... 7
2. RANGE (continued)
Configuration and use:
. Can be used as a " standard " contactor not connected
And /Or
Can be used with:
- Legrand smartphone app
" HOME + CONTROL"
. Available for free on Google Play or App Store
- Voice assistants (compatible with the main
assistants of the market).
3. OVERALL DIMENSIONS
4. PREPARATION - CONNECTION
Mounting:
. On symmetrical rail EN / IEC 60715 or DIN 35.
Operating position:
. Vertical, Horizontal, Flat.
Pages
voice
Created on: 04/10/2019
1/7
