LEGRAND MIDDLE ATLANTIC Premium+ Series Quick Start Manual

Premium+ Series PDU with RackLink
Quick Start Guide
I-00827 Rev D
Supplied Components and Hardware (Continued)
NOTE:
•
To order more hardware, contact support at av.support@legrand.com or (866) 977-
3901.
•
Additional hardware is included that may not be required for your installation.
Required Tools
•
#1 Phillips Screwdriver
Setting Up Your RackLink Device
NOTE: Prepare the installation site. Make sure the installation area is clean
and not exposed to extreme temperatures or humidity. Allow sufficient space
around the device for cabling and outlet connections.

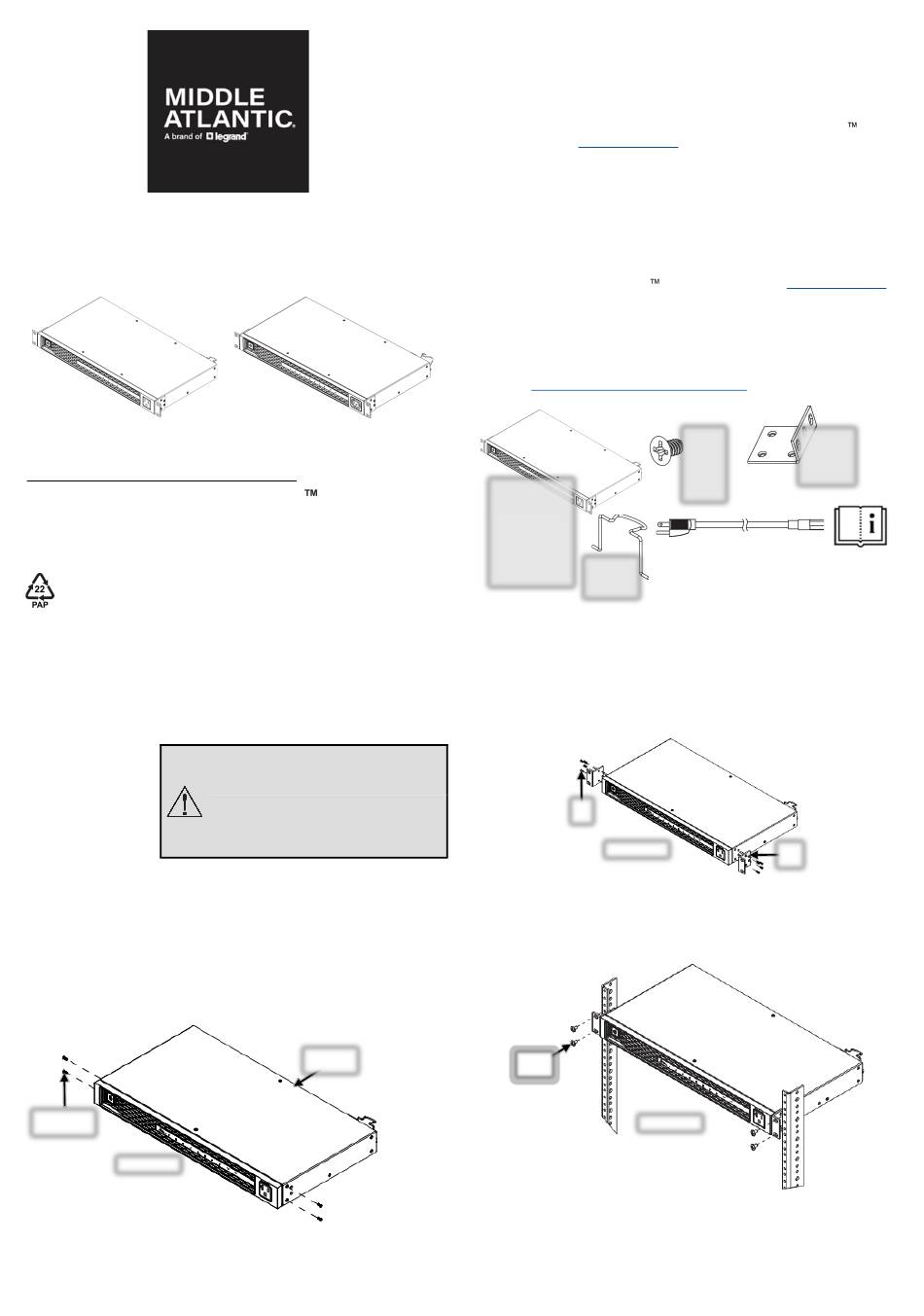

1. Use #1 Phillips screwdriver and remove (2x) pre-installed 5/16"
screws from both sides of the PDU (A) as shown. (FIGURE A)
Pre-Installed
Screws
FIGURE A
Use tools with caution and
WARNING
follow all safety protocols.
Utiliser des outils avec pru-
dence et suivre tous les
AVERTISSEMENT
protocoles de sécurité.
A
- 3 -
IMPORTANT SAFETY INSTRUCTIONS—EN
SAVE THESE INSTRUCTIONS - This manual contains important instructions that should
be followed during installation and maintenance of the power distribution unit (PDU).
For complete safety instructions, refer to the Premium+ PDU with RackLink
Manual (I-00826) at www.legrandav.com.
•
Only use attachments and accessories specified by the manufacturer.
•
Read all instructions before using the product.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ–FR
CONSERVER CES INSTRUCTIONS - Ce manuel contient des instructions importantes
qui doivent être suivies lors de l'installation et de la maintenance de unité de distribution
d'énergie (PDU).
Pour obtenir des instructions de sécurité complètes, reportez-vous aux manuel d'utilisa-
tion Premium+ PDU with RackLink
•
Utiliser uniquement les accessoires spécifiés par le fabricant.
•
Lisez toutes les instructions avant d'utiliser le produit.
Supplied Components and Hardware
After carefully opening all product packaging, identify the supplied components and hard-
ware shown. If pieces are missing or damaged, please report it immediately to Technical
Support at av.middleatlantic.techsupport@legrand.com
Keep the original packaging in a safe place for future use.
Rackmount
Unit
NOTE: Form factor
and outlet type vary
based on model
purchased.
Cord
Retainer
A
D
Setting Up Your RackLink Device (Continued)
2. Use screwdriver, (2x) removed screws, and additional (2x) 5/16" screws
(B) to attach a mounting bracket (C) to each side of the unit as shown
(4x screws pre bracket). (FIGURE B)
B
FIGURE B
3. Attach the mounting brackets to the rack using rack screws (not provided)
as shown. (FIGURE C)
Rack
Screw
FIGURE C
User Manual (I-00826) à www.legrandav.com.
or (866) 977-3901.
(2x)
(4x)
Mounting
5/16"
Bracket
Phillips
Screw
C
B
Power Cord
NOTE: Cord provided varies
based on model purchased.
E
- 2 -
C
- 4 -
User
Quick
Start
Guide
