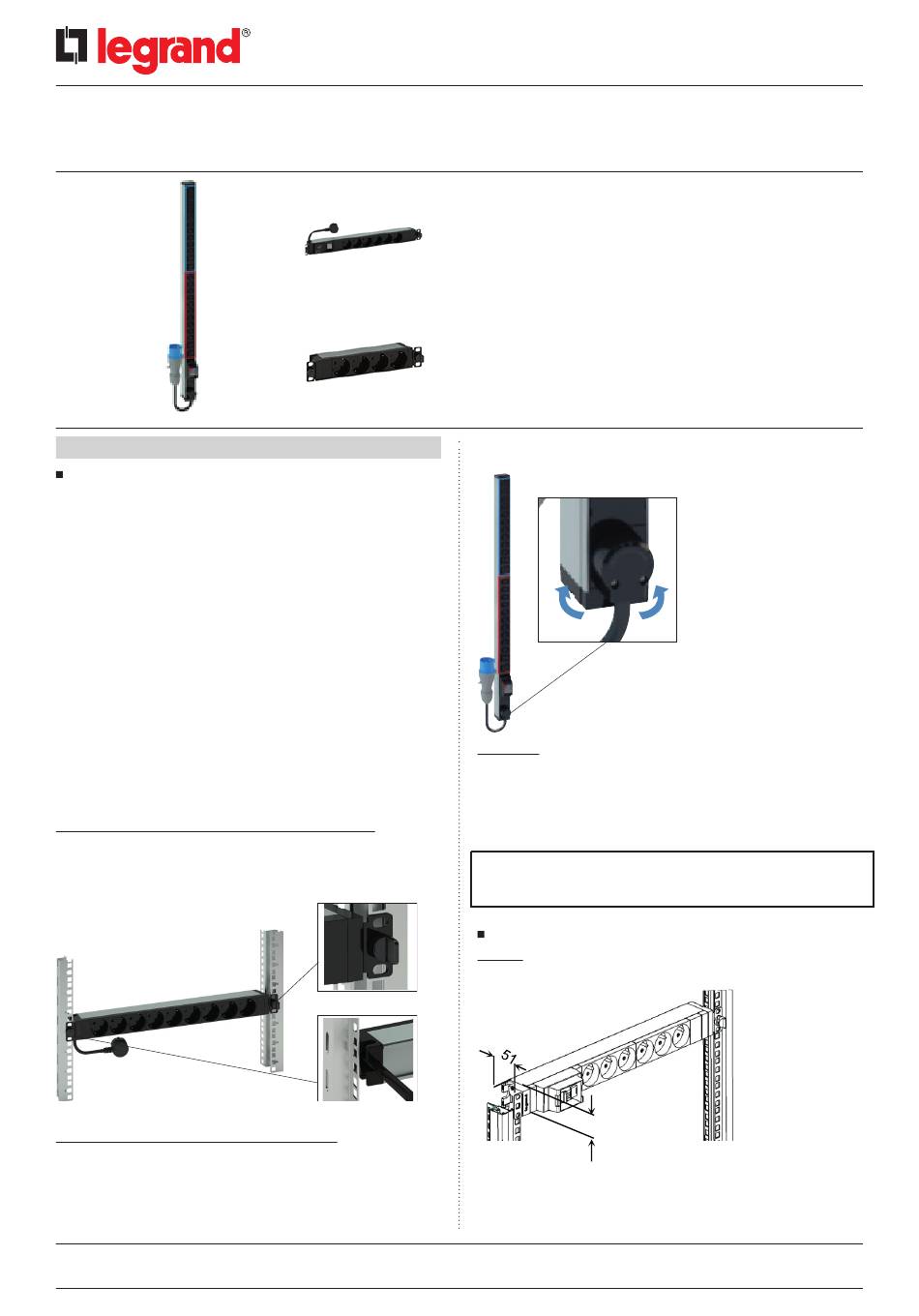

1. GENERAL CHARACTERISTICS
1.1 Presentation
Legrand PDUs are designed for supplying power to equipment in 19''
enclosures.
They comprise:
- an aluminium casing
- socket modules
- additional functions
- a termination solution
- a mounting solution
Single-phase 230V – 50/60 Hz or three-phase 380 V – 50/60 Hz power
supply
The range features three main product families:
- PDUs designed for horizontal installation (10'' and 19'' PDUs)
- PDUs designed for vertical installation (Zero-U PDUs)
- Accessories
PDUs designed for horizontal installation (10'' and 19'' PDUs)
10'' PDUs to be installed on 10'' mounting uprights and 19'' PDUs to be
installed on 19'' mounting uprights. 1U height casing for compactness.
Integrated cable guide. Screwless snap-on fixing. End pieces with 180°
reversible metal brackets for vertical mounting capability.

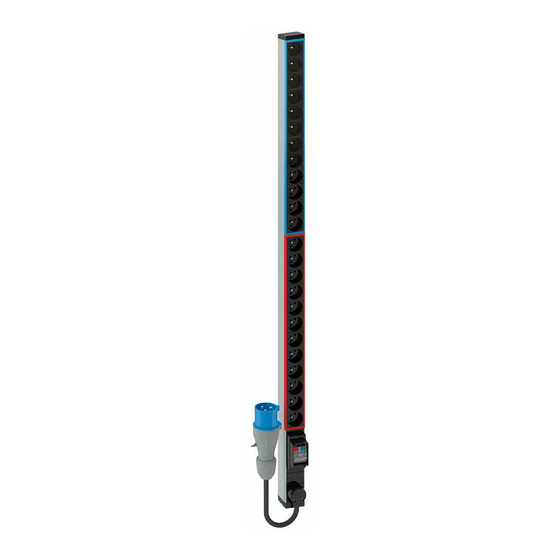

PDUs designed for vertical installation (Zero-U PDUs)
For vertical installation on the rear of cabinets to save 19'' space within
it.
Cable inlet can be rotated 330° to ensure perfect alignment of the
power cable.
Data sheet: S000093176EN-05
CONTENTS
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex - France
Tel: +33 (0)5 55 06 87 87 Fax: +33 (0)5 55 06 88 88
www.legrand.com
Updated: 29/03/2018
Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/19/20/
21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/
45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/
CONTENTS
1. GENERAL CHARACTERISTICS . . . . . . . . . . . . . 1
2. EQUIPMENT AND PERFORMANCE . . . . . . . . 3
3. FUNCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . .12
Supplied with 2 sets of metal fixings: button for screwless fixing, or
standard screw-type brackets.
Accessories
- Replacement surge protection module to ensure continuity of service
- Locking caps for locking out the use of an outlet
See the detailed description of these accessories in the "Functions"
section.
Legrand's PDU offer is available as standard catalogue versions (see
the corresponding descriptions in the "Equipment and performance"
section) and as customized configurations.
1.2 Mechanical characteristics
- Casing: 6060 T5-R19 natural anodised aluminium
Dimensions in mm:
1U casing
44.3
95/97/98/99
Page
23° view
Created: 25/10/2016
1/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10’’ and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND 10’’

Summary of Contents for LEGRAND 10’’

  • Page 1 1. GENERAL CHARACTERISTICS Supplied with 2 sets of metal fixings: button for screwless fixing, or standard screw-type brackets. 1.1 Presentation Legrand PDUs are designed for supplying power to equipment in 19’’ enclosures. They comprise: - an aluminium casing - socket modules...
  • Page 2 Italian standards and electrical appliance connectors (C13 and C19) and 52 °C for the UK standard. Final inspection: Compliant with European standard requirements and Legrand's own manufacturing requirements, all products undergo production tests, including: - Electrical continuity to ensure the product is wired correctly...
  • Page 3 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 2. EQUIPMENT AND PERFORMANCE 2.1 Composition of each catalogue number 10" PDUs 6 468 98 6 468 00 6 468 01 Number of phases Input voltage 230 V 230 V 230 V...
  • Page 4 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 19" PDUs (continued) 6 468 15 6 468 18 6 468 19 6 468 20 6 468 21 6 468 22 6 468 23 6 468 24 6 468 30 Number of phases Input voltage...
  • Page 5 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 19" PDUs (continued) 6 468 31 6 468 32 6 468 33 6 468 35 6 468 36 6 468 40 6 468 41 6 468 42 6 468 43 Number of phases Input voltage...
  • Page 6 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 19” PDUs (continued) 6 468 44 6 468 45 6 468 99 Number of phases Input voltage 230 V 230 V 230 V Input current 16 A 16 A 16 A Maximum power...
  • Page 7 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 Zero-U PDUs (continued) 646857 646859 646860 646861 646865 646870 Number of phases Input voltage 230 V 230 V 230 V 230 V 230 V 400 V Input current 32 A 32 A...

  • Page 8: Configuration Examples

    45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 2.2 Customized products German Legrand PDUs can be delivered with custom configurations to meet 2P+E 16 A specific customer requirements. Contact your local sales representative Terminals equipped with protective shutters to discuss your requirements. Outlet recess at 55° angle...

  • Page 9: Operation

    10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/19/ 20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 3.5 Surge protection and replacement module Technical data Protection between Line and neutral of socket outlets connected Number of poles downstream against overloads generated by the electrical network Neutral system TT - TNS upstream of the surge protective device by creating a discharge current...

  • Page 10: Colour-Coding

    10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/19/ 20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 3.6 Protection devices 3.8 Thermal overload breaker (custom configured version) Protection devices are integrated in all standard catalogue PDUs and For protecting equipment against short-circuits and overloads customized PDUs.
  • Page 11 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/19/ 20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 3.10 Locking caps 10’’ PDUS For locking out the use of a socket. All 10’’ catalogue numbers To be equipped catalogue number excluding 6 468 98 6 468 98 52.5 Require a key to unlock access.
  • Page 12 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 5. INSTALLATION TERMINATION Depending on the configuration, the PDUs can be connected in different ways. 1) Supplied with power cord See section 2 "Equipment and performance" to see which standard catalogue products have an integrated cord. 2) Terminal block connection Some products are supplied without a cable;...
  • Page 13 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 3) Connection via fast connector or C20 connector (custom configured version) Connectors mounted on the front panel of the PDU. The PDU is powered via a separate cable that plugs into these connectors. Wieland GST18 Wago Wieland GST18...

  • Page 14: Mounting Solutions

    10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 PDUs can be supplied with a cable input via cable gland by special request (input on front face or on the end). MOUNTING SOLUTIONS 1) 10’’ and 19’’ Horizontal mounting with snap-on fixing (for square holes 9.5 x 9.5).
  • Page 15 10’’ PDUs Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1 9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/ 19’’ PDUs 45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/ Zero-U PDUs 95/97/98/99 2) Zero-U Zero-U PDUs are designed for vertical installation and supplied with 2 sets of fixing accessories: - 2 button: for screwless fixing. The height of the fixing centre can be set at any point along the full height of the PDU by sliding the button slots into the groove on the rear of the PDU.
