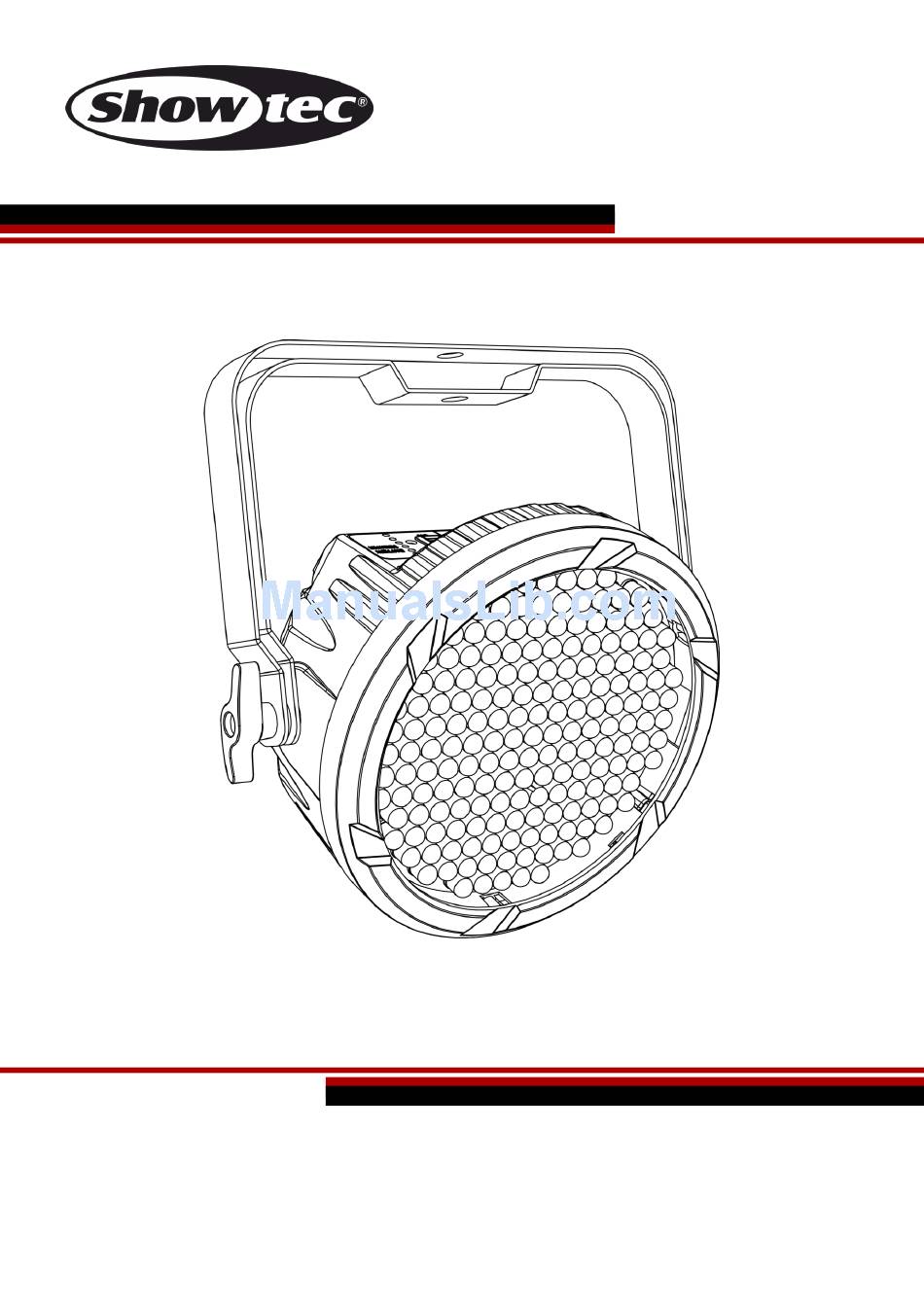

- Page 1 MANUAL ENGLISH EventLITE 177IR Ordercode: 44010 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
EventLITE 177IR Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories..............................7 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec EventLITE 177IR IEC power cable (1,5 m) ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: • If the EventLITE 177IR is lowered from the ceiling or high joists, professional trussing systems have to be used. • Use a clamp to mount the EventLITE 177IR, with the mounting bracket, to the trussing system. -
Page 6: Connection With The Mains
EventLITE 177IR The EventLITE 177IR can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
EventLITE 177IR Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
EventLITE 177IR Description of the device Features The Showtec EventLITE 177IR is a compact, lightweight and powerful mobile spot. The special led-matrix and very precise electronics ensures a smooth color mixing. Compact size Long battery life Built-in battery charger and protection ... -
Page 9: Frontside
EventLITE 177IR Frontside Fig. 01 01) Adjustment screw 02) Mounting bracket 03) 177x 10mm (60xR, 60xG, 57xB) LEDs Ordercode: 44010... -
Page 10: Backside
09) IEC power connector IN + Fuse T1L/250V Installation Remove all packing materials from the EventLITE 177IR. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Charging The Built-In Battery
01) In order to charge the battery, you need the included IEC power cable. 02) Turn off the power. 03) Connect the IEC power cable to the EventLITE 177IR. 04) Then plug the other end of the IEC power cable into a proper electric power supply socket. -
Page 12: Multiple Eventlites (Master/Slave Control)
EventLITE 177IR Multiple EventLITEs (Master/Slave control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the EventLITEs and other devices. -
Page 13: Multiple Eventlites (Dmx Control)
EventLITE 177IR Multiple EventLITEs (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the EventLITEs and other devices. -
Page 14: Fixture Linking
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The EventLITE 177IR can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 44010... -
Page 15: Control Panel
EventLITE 177IR Control Panel A) LED display MODE button C) SETUP button D) UP button DOWN button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 16: Menu Overview
EventLITE 177IR Menu Overview Ordercode: 44010... -
Page 17: Main Menu Options
EventLITE 177IR Main Menu Options Built-in programs Auto run Sound-controlled Mode DMX address / DMX configuration Master-Slave Static Color Mode Eco Mode 1. Built-in programs With this menu you can set the built-in programs. 01) Press the MODE button until the display shows 02) Press the SETUP button to open this menu. -
Page 18: Auto Run Program
EventLITE 177IR 2. Auto Run Program With this menu you can set the Auto run mode of the EventLITE 177IR. 01) Press the MODE button on the device until the display shows 02) The EventLITE will immediately start the Auto Run program. -
Page 19: Static Color Mode
01) Press the MODE button until the display shows 02) Use the UP/DOWN buttons to choose between normal mode and economy mode. 03) When you choose “E - OFF” the EventLITE 177IR will have 100% of the luminance, this is the normal mode. - Page 20 EventLITE 177IR Button Function Description On / Off Switch the device ON or OFF Auto Mode Activate Built-in Auto Show mode Program Mode Activate Built-in Programs Show mode Sound-controlled Mode Activate Sound-controlled mode Speed Mode Activate Speed Mode Strobe Mode...
-
Page 21: Built-In Auto Show
EventLITE 177IR 1. Built-in Auto Show 01) Press the button to activate the Built-in Auto Show mode. 02) The EventLITE will automatically start with its built-in program. 03) In this mode you can control the speed of the program by pressing the button. -
Page 22: Dmx Channels
EventLITE 177IR DMX Channels 2 channels Channel 1 – Preset Colors & Built-in Programs & Sound mode No function 10-19 20-29 Yellow 30-39 Green 40-49 Cyan 50-59 Blue 60-69 Purple 70-79 Pink 80-89 White 90-99 Program 1 100-109 Program 2... -
Page 23: Maintenance
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the EventLITE 177IR, as this may damage the unit and the warranty will become void. - Page 24 EventLITE 177IR Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 25: Product Specifications
EventLITE 177IR Product Specifications Model: Showtec EventLITE 177IR Input Voltage: 100-240V AC, 50/60Hz Power consumption: 30W (full output) DMX linking: 30pcs Battery storage: Operating time at full RGB: 6 hours Operation temperature: -20° to +40° Charging time: 10 hours Spare battery:... -
Page 26: Dimensions
EventLITE 177IR Dimensions Ordercode: 44010... -
Page 27: Notes
EventLITE 177IR Notes Ordercode: 44010... - Page 28 ©2016 Showtec...
