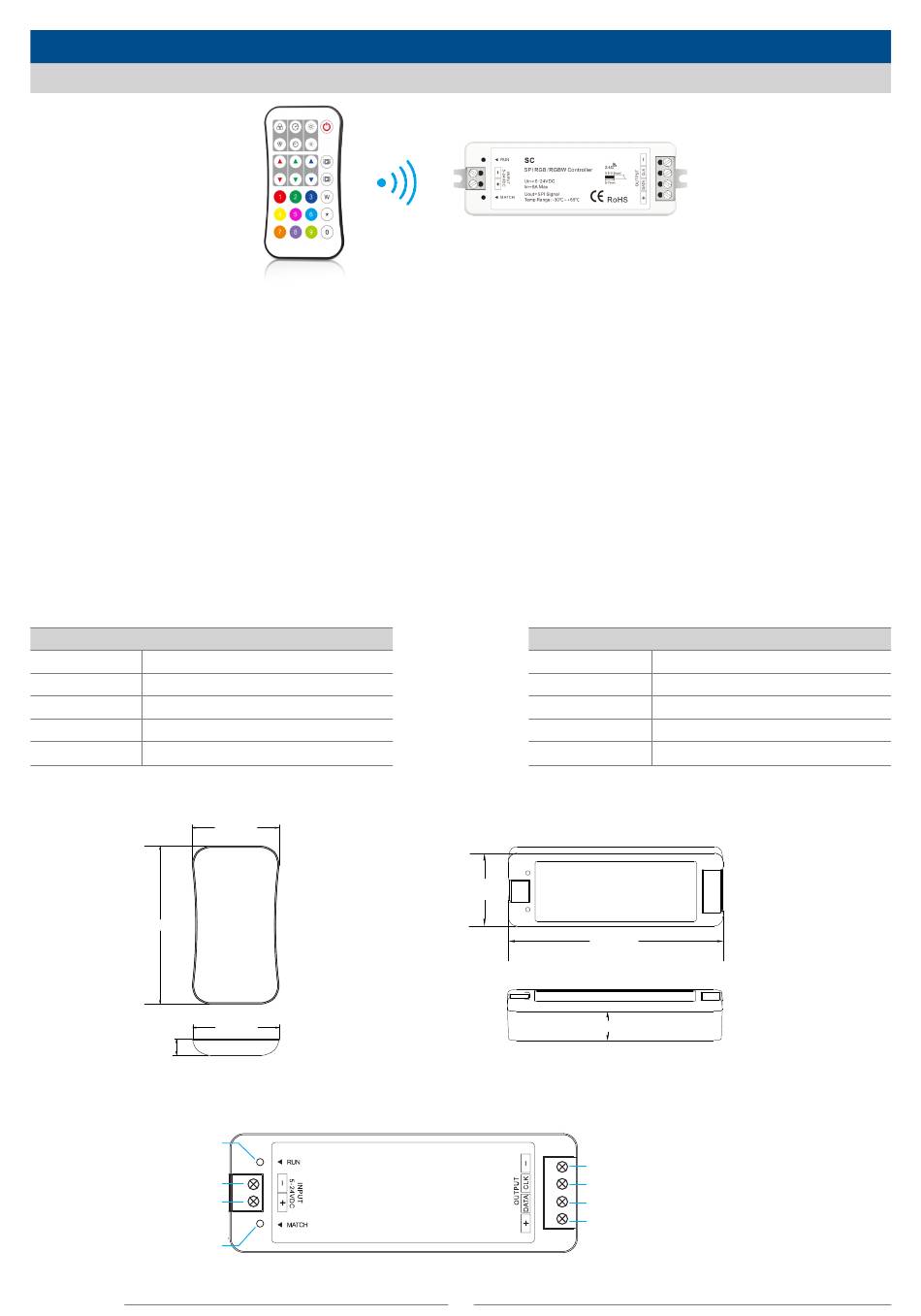

SKYDANCE SC + R9 Manual

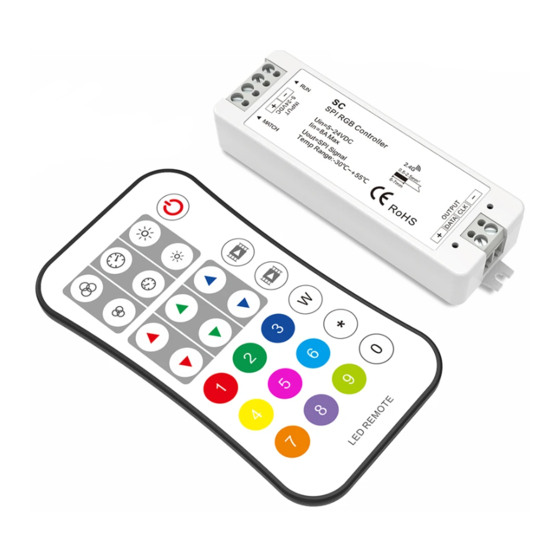

RF 2.4G RGB/RGBW LED SPI Controller Set
Model No.: SC + R9
SC control LED lights with the following 46 kinds of compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829,TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW),
SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101,D705, UCS6909, UCS6912, LPD8803, LPD8806,
WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603,
SM16714D.
By RF remote controls you can select from a variety of dynamic lighting effects, adjust changing speed and brightness, set control pixels quantity,
adjust RGB sequence, select IC type etc.
you can also customize two kinds of scene modes to bring you fantastic color.
Features
● Mini-style RF 2.4G multi-pixel RGB/RGBW controller with SPI signal output.
● Output SPI signal to control a variety of digital LED lights with the compatible ICs listed above.
IC type and R/G/B order can be set through the Remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Built in 40 dynamic mode, include horse-race, chase, flow, trail, gradual change style.
Technical Parameters
LED Remote
Output signal RF(2.4GHz)
Working voltage 3VDC(CR2032)
Standby time 2 years
Remote distance 30m
Size L107×W58.5×H9mm
Dimension
107mm
9mm
Interface instruction
Indicator
Power input -
Power input+
Match key
User Manual Ver 2.0.1
58.5mm
58.5mm
LED Receiver
Input voltage
Input Current
Output signal
Output dots
Size
33mm
97mm
18mm
Power output -
Clock signal output
Data signal output
Power output+
1
5-24VDC
8A
SPI (DATA / CLK)
1024 Max
L97×W33×H18mm
