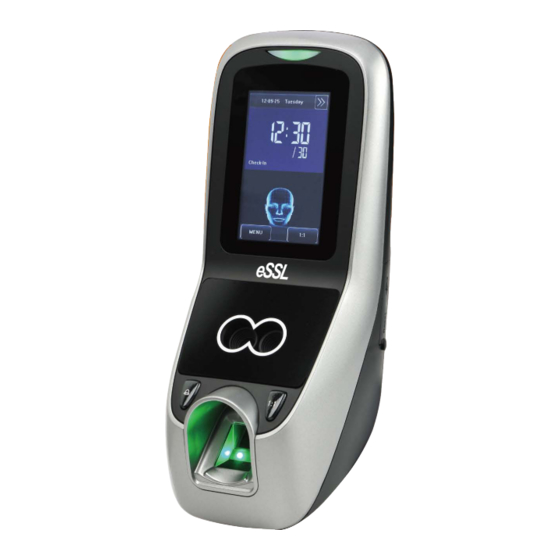

ZKTeco MultiBio 700 Installation Manual

MultiBio 700 Installation Guide
1. Equiment Installation
MultiBio 700 Mounting Paper
(only for your reference)
Instruction for the Mounting Paper
Before the device is fastened, please
stick the paper to the place where you
want to install it, then make holes and
lay cables according to the mounting
paper.
Wiring Hole
10
11
12
(1) Post the mounting template on the (2) Remove the screw on the bottom
wall.Drill the holes according to
of device.
the marks on the template (holes
for screw and wiring).
(4) Fix the back plate on the wall (5) Fix the device to the back plate.
according to the mounting paper.
2. Structure and Function
TCP/IP
RS485
⑦
RS232/RS485 Converter
Exit Button
④
⑥
① ②
Lock Sensor
Door Bell External Reader
③
Alarm
Version: V1.2 Date: Jan. 2015
(3) Take away the back plate.
Access Control System Function
(1) If a registered user verified, the device will export the signal
to unlock the door.
(2) Door sensor will detect the on-off state. If the door is un-
⑤
expected opened or improperly closed, the alarm signal
EXIT
BUTTON
(digital value) will be triggered.
(3) As the d evice is removed illegally , it will output an alarm signal.
External card reader
(4) is supported.
(5) External exit button is supported, it is convenient to open the
door inside.
(6) External door bell is supported.
(7) Supports RS485 TCP/IP , modes to connect with
manage multiple devices.
3.Lock Connection
(1) Shares power with the lock:
+
-
DC12V
NC LOCK
-
+
(2) Does not share power with the lock:
+
-
DC12V
+
-
DC power
NC LOCK
(1) The system supporst NO LOCK and NC LOCK. For example the NO LOCK (normally open at power on) is connected
with 'NO' terminal, and the NC LOCK is connected with 'NC' terminal.
(2) When the Electrical Lock is connected to the Access Control System, you need to parallel one FR107 diode (equipped
in the package) to prevent the self-inductance EMF affecting the system, do not reverse the polarities.
4. Connected with other parts:
Door Bell
Exit Button
Alarm Power
Alarm
+
-
Voltage output ≤ DC 12V for Alarm
PC. One PC can
①:'I': device output current, '
+
+12V
GND
-
BELL-
BELL+
DC12V
SEN
GND
NO LOCK -
BUT
FR 107
NO
+
COM
FR 107
NC
AL+
AL-
+
+12V
GND -
DC12V
BELL-
-
BELL+
FR 107
SEN
+
GND
NO LOCK
BUT
-
NO
COM
+
NC
+
AL+
FR 107
AL-
DC power
5. Connected with Power:
BELL-
Input DC 12V, 500mA (50mA standby)
BELL+
Positive is connected with '+12V', negative is connected
SEN
with 'GND' (do not reverse the polarities).
GND
BUT
EXIT
BUTTON
NO
COM
NC
Door Sensor
AL+
AL-
U ': lock voltage,' I ': lock current
LOCK LOCK
！
Warning: No operating with power on
+12V
GND
Device shares power with the lock:
BELL-
BELL+
>1A...... ①
U =12V, I-I
LOCK LOCK
SEN
GND
And the lock is near to the device.
BUT
NO
COM
NC
AL+
AL-
+12V
GND
Device does not shares power with the lock:
BELL-
≤1A;
A. U =12V I- I
LOCK LOCK
BELL+
SEN
B ≠12V;
. U
LOCK
GND
BUT
C. The lock is far apart from the device.
NO
COM
NC
AL+
AL-
+
+12V
-
GND
DC12V
