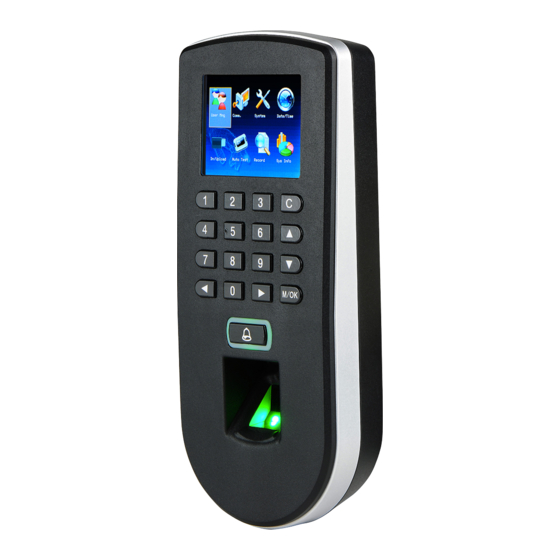

ZKTeco F19 Installation Manual

Installation Guide
Version: 1.0 Date: June, 2012

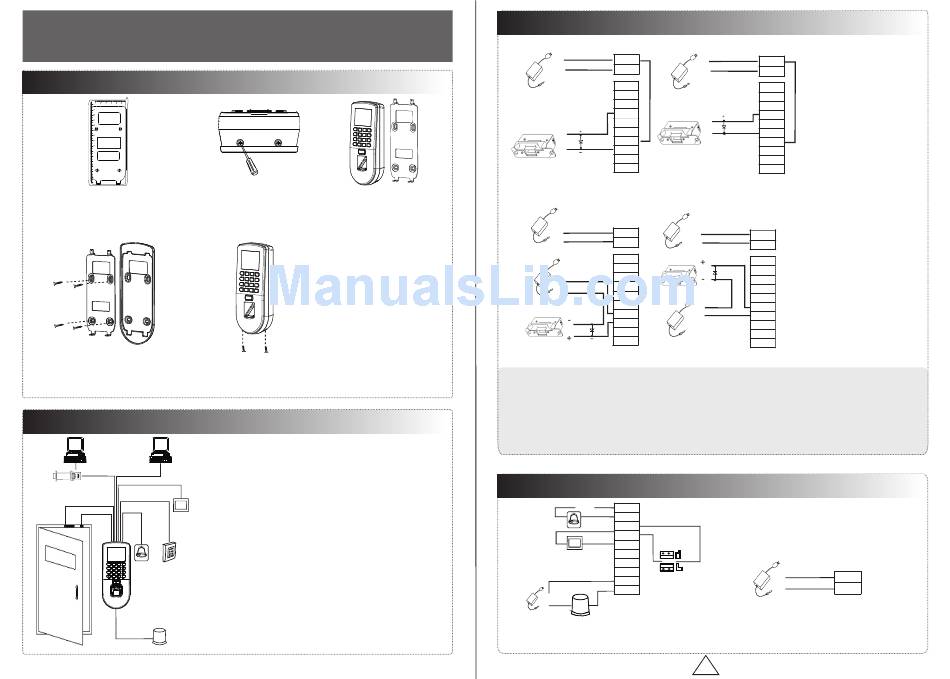

1. Equipment Installation

Mounting Paper
Wiring Hole
Fixing Hole Fixing Hole
Instruction for the Mounting Paper
Stick this mounting paper to the wall or
door frame. Drill the holes according to
the mounting paper.
10
11
12
13
14
Fixing Hole Fixing Hole
15
16
(1) Paste the mounting template on the (2) Remove the screw on the
wall. Drill the holes according to
the marks on the template (holes
for screws and wiring).
(4) Fix the rubber pad and the back (5) Place the unit onto the mounting bracket,
plate on the wall according to
the mounting paper.

2. Structure and Function

RS485 TCP/IP
⑦
⑤
RS232/RS485 Converter
④ Exit
①
⑥
②
Lock Sensor Exit Button
1 2 3 C
Bell Reader
4 5 6
7 8 9
0 M/OK
③
Alarm
* All rights reserved .
(3) Take away the back plate.
bottom of device.
and tighten the screw at the bottom of the unit.
Access Control System Function
(1) If a registered user verified, the device will send a signal
to unlock the door.
(2) The door sensor will detect the ON-OFF state. If the door
is unexpectedly opened or improperly closed, the alarm signal
(digital value) will be triggered.
(3) If the d evice is i llegal ly removed , the device will signal the alarm.
(4) External card reader is supported.
(5) External exit button is supported.
(6) External door bell is supported.
(7) Supports RS485 TCP/IP , communication to be able to connect with
PC. One PC can manage multiple devices.
3.Lock Connection
(1) Share power with the lock:
+
+12V
-
GND
BELL-
DC12V
BELL+ DC12V
SEN
GND
BUT
NC LOCK
-
NO1
COM1
FR 107
+
NC1
NO LOCK
NO2
COM2
(2) Does not share power with the lock:
+
+12V
GND
-
DC12V
DC12V
BELL-
BELL+
+
SEN
GND
- NO LOCK
BUT
DC Power
NO1
COM1
+
NC1
FR 107
NO2
COM2
DC Power
NC LOCK
(1) The system supports NO LOCK and NC LOCK. For example the NO LOCK (normally open at
power on) is connected with ' NO' and COM terminals, and the NC LOCK(normally close at power '
on) is connected with 'NC'and 'COM' terminals.
(2) When the Electrical Lock is connected to the Access control System, you need to connect one FR107
diode (shipped in the package) in parallel with the connection
feedback the system. NB: Do not reverse the polarities!

4. Other Connections

+Power- BELL-
BELL+
Door Bell
SEN
GND
Exit
BUT
NO1
Exit Button
COM1
NC1
Alarm Power
Door Sensor
NO2
- COM2
+
Alarm
Alarm Voltage output ≤ DC 12V
①:
'I': device output current, ' U ': lock voltage,
LOCK
+
+12V
GND
-
Device shares power with the lock:
BELL-
BELL+
U =12V, I-I >1A...
LOCK LOCK
SEN
- GND
And the distance between the lock
BUT
FR 107
and the device is equal or less
NO1
+
COM1
than 10 meters.
NC1
NO2
COM2
+
+12V
- Does not shares power with the lock:
GND
≤1A;
A. U =12V I- I
- BELL-
LOCK LOCK
BELL+
FR 107 ≠12V;
B . U
LOCK
SEN
+
C. The distance between the lock and
GND
BUT
-
the device is more than 10 meters.
NO1
COM1
+
NC1
NO2
COM2
'
to prevent the self-inductance EMF

5. Power Connection

The device working voltage DC 12V, electric current
500mA (50mA standby). Positive is connected with
'+12V', negative is connected with 'GND'.
(Do not reverse the polarities)
+
+12V
-
GND
DC12V
' I ': lock current
LOCK
！
WARNING: Do Not operate with Power connected.
①
