WICED User Manual
Table 12: Wi-Fi Module Pinout and Mapping to the Carrier Board (Cont.)
Module
Pin# Wireless Module Signal Name
36 MICRO_RST_N
37 MICRO_ADC_IN1
38 MICRO_WKUP
39 GND
40 MICRO_ADC_IN2
41 MICRO_ADC_IN3
42 MICRO_GPIO_5
43 MICRO_ADC_IN15
44 GND
45 GND

Mechanical Information

Figure 12 shows a silkscreen of the carrier board.
Broadcom
®
November 19, 2015 • WICED-UM200-R
Connector / Device Pin#
JTAG or SW1 pushbutton
reset, JX1-3
JX2.1
JX2.4
JX3.7, JX1.6, JX1.7
JX2.2
JX2.3
–
–
JX3.7, JX1.6, JX1.7
JX3.7, JX1.6, JX1.7

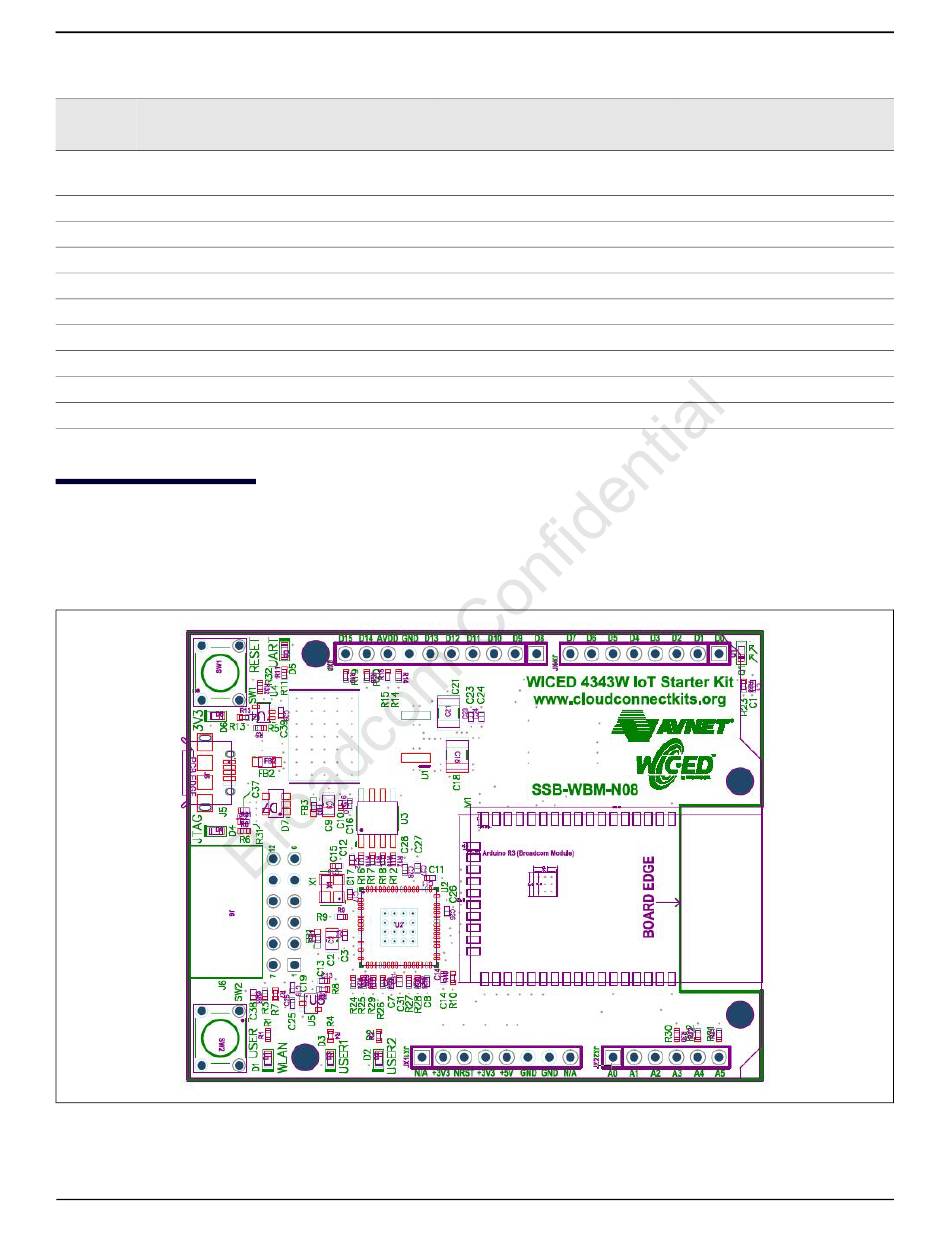

Figure 12: Carrier Board Silkscreen

Mechanical Information
Other Name / Comments
Reset
A0
A3
GND
A1
A2
USER1 LED (Green)
Ambient light sensor
GND
GND
Page 25
