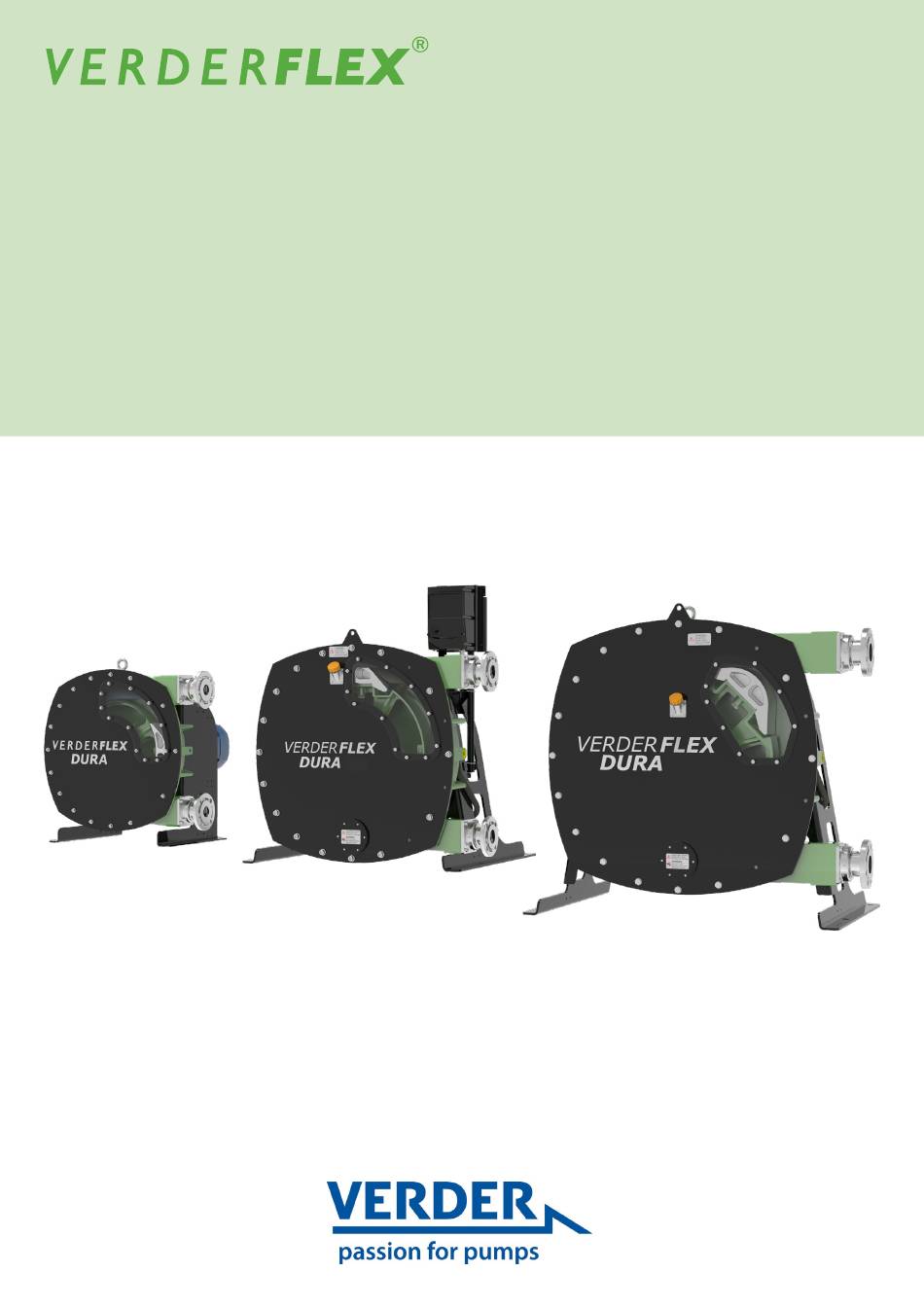

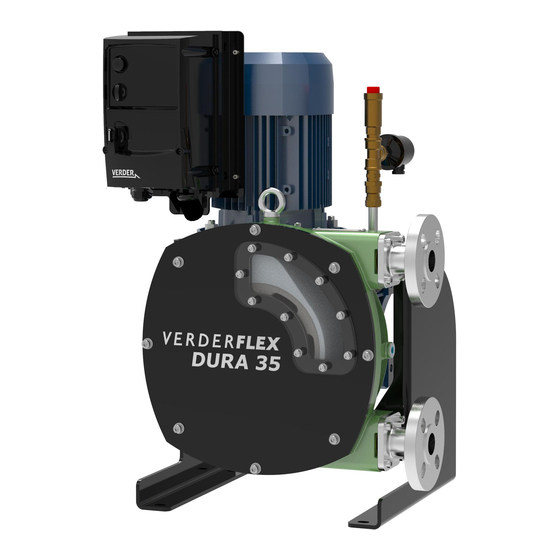

- Page 1 Peristaltic Industrial Hose Pump Supplementary iDura 5-80 document Version 2.0v-02/2023...
- Page 2 5-80 - Supplementary document Version 2.0v-02/2023 The information in this document is essential for the safe operation and servicing of Verderflex® iDura pumps. This document must be read and understood thoroughly prior to installation of unit, electrical connection and commissioning.
-
Page 3: Table Of Contents
5-80 - Supplementary document Table of Contents Declaration of Conformity ........................5 About This Document ..........................7 Target groups ..............................7 Warnings and symbols ..........................7 Safety ..............................8 Intended use ..............................8 General safety instructions..........................8 3.2.1 Product safety ..........................8 3.2.2 Obligation of the operating company ....................8 3.2.3... - Page 4 5-80 - Supplementary document Trademarks ............................17 Document History ..........................17 List of tables Table 1. - Target groups Table 2. - Warnings used in the manual Table 3. - Symbols used in the manual Table 4. - iDura inverter parameters Table 5.
-
Page 5: Declaration Of Conformity
5-80 - Supplementary document Declaration of Conformity (EC) EC declaration of conformity according to machinery directive, appendix II A VERDER Ltd., Unit 3 California Drive, Castleford hereby declare that the following machine adheres to the relevant EC directives detailed below:... - Page 6 5-80 - Supplementary document Declaration of Conformity (UK) In accordance with the UK Supply of Machinery (Safety) Regulations 2008, No 1597 ANNEX II, Part I, Section B VERDER Ltd., Unit 3 California Drive, Castleford hereby declare that the following machine adheres to the relevant UK legislation detailed below:...
-
Page 7: About This Document
About This Document This manual is a guideline for qualified users for the safe operation and maintenance of Verderflex® iDura pumps. This is a supplementary document to the Dura operating manual and the Inverter instruction manual. The operating manuals must be read and understood both by the installing personnel and the responsible trained personnel / operators prior to following additional guidelines in this document. -
Page 8: Safety
5-80 - Supplementary document Safety • In the event of any safety-relevant faults, shut down the pump immediately and have the malfunction corrected by qualified personnel. The manufacturer does not accept any liability for • The installation of the pump must comply with the... -
Page 9: Obligation Of Personnel
This is a precautionary measure in case of accidental hose burst whereby the pumped liquid comes in contact with the lubricant. (see ‘Verderflex Chemical Compatibility Guide’, available on the Verder website and also refer to g 11. Technical Specifications for specific lubricant limitations) Figure 1. -
Page 10: Interim Storage After Using The Pump
5-80 - Supplementary document Electrical Safety Hoses should be stored as supplied in their wrapper and should be stored away from direct sunlight, flat without 5.1 Electrical connection any bends or kinks and at room temperature with end caps fitted. -
Page 11: Connecting To The Power Supply
Weather Canopy live. Check pump rotational direction matches up with the Verderflex iDura 45-80 have the option of a weather canopy to directional switch on the inverter, refer to g 5 Operation protect the inverter against harsh weather conditions (extreme (supplementary). -
Page 12: Operation (Supplementary)
5-80 - Supplementary document Operation (supplementary) 8.1 Hose change Check inverter directional switch (1) is in central “0” WARNING position and that power is available to the inverter. Switch on the inverter using the built-in isolator switch and check no errors are displayed on screen. (2) -
Page 13: Hose Change Manually
When the hose is installed by using the inverter controls Verderflex hose burst detector and vent kit provide three basic in the opposite direction will turn the rotor to drive the functions: hose into the pump. -
Page 14: Idura Inverter Functionality
5-80 - Supplementary document 10.2 iDura inverter functionality Values set during assembly at Verder should not be changed. These have been determined to be specific to the selected hardware. Some functionality in the inverter can be set by the customer to make it work with their system and control method,... -
Page 15: Table 4. - Idura Inverter Parameters
5-80 - Supplementary document iDura inverter functionality (cont.) Parameter Description User can change? Display scaling PI controller proportional gain PI controller integral time PI controller operating mode PI reference source select PI control wake up error level User output relay hysteresis... -
Page 16: Technical Specifications
11.6 Rotor options iDura 80 6 bar Temperature of pumped < 100 °C (subject to hose Verderflex iDura 5-35 range has only standard pressure rotor. liquid material) iDura 45-80 are shimmed to suit 6 bar as follows: Max. continuous *(refer to pump datasheet) -
Page 17: Document History
5-80 - Supplementary document 12. Trademarks VERDERFLEX is a registered trademark of Verder Liquids B.V. No permission is granted to use any Verder, trademarks or trade ® names included in this document without the prior written agreement of Verder Liquids B.V.
