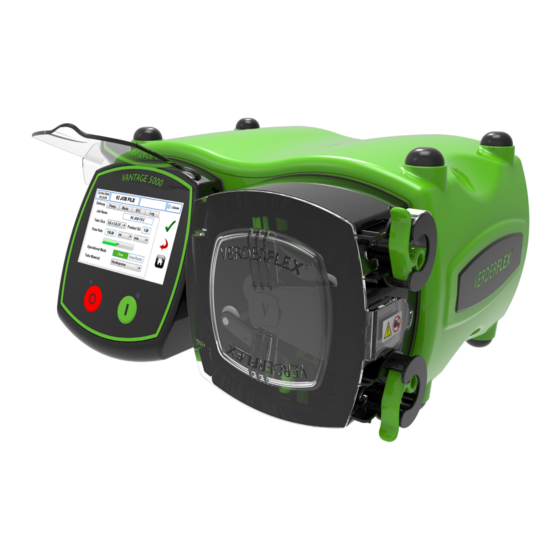

- Page 1 Peristaltic Cased Tube Pump Vantage 5000 Selectable Output Control Functionality and Setup Version 1.0v-11/2016 Print-No.
- Page 2 Table of Contents Introduction Powering the Input/Output Port Wiring for Local Voltage Sourcing Wiring for Remote Voltage Sourcing Output Port Allocation Vantage 5000 1.0v-11.2016 2 | Page...
- Page 3 6, 7 & 8, available on the 25 WAY Remote I/O Connector, to select pump functionality status. These selectable outputs are optically isolated and therefore the Input/Output (I/O) port must be powered from either a local i.e. the Vantage 5000, or a remote, nominal 24V DC power source.
- Page 4 The output port allocation menu can be found in the ‘Outputs’ submenu of the ‘Tools and settings’ menu and is shown below with its default settings. Figure 4 Tools and Settings Screen Figure 5 Output Menu with Default Settings Vantage 5000 1.0v-11.2016 4 | Page...
- Page 5 The selected output pin will be a logic 1 when the pump is in Human Machine Interface (HMI) Analogue Status mode and will be set to a logic 0 when set for 4-20mA, 0–10V or proportional flow Vantage 5000 1.0v-11.2016 5 | Page...
- Page 6 From this image it can be seen that Output 1 is set to reflect the status of the tube burst detection sensor and Output 3 is set to reflect the state of the direction control. For settings to be saved in the Vantage 5000 the green ‘Tick’ must be touched when exiting the menu.
