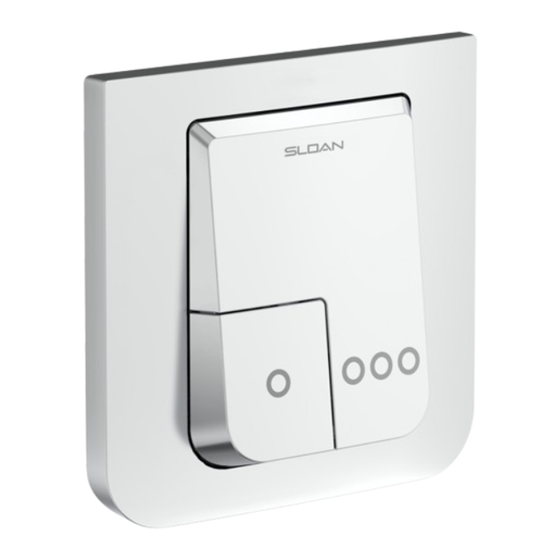

TRUFLUSH MANUAL DUAL FLUSH WALL PLATE
SLOAN
Sloan India Private Limited ("Sloan"), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan's reasonable
control. Instructions for filing claims can be found in the Limited Warranty which can be obtained at https://www.sloan.com/company/international/sloanindia or by requesting a
free copy by telephone to Sloan India toll free number 1 800 123 3080 or via Mobile: +91 729 005 0961 or via Landline : +91 124 601 3333. Sloan will repair or replace your
defective product, or provide a refund, as your exclusive remedy.
This is only a general summary of Sloan's Limited Warranty so it is important to note that the specific terms, conditions, limitations and exclusions, including the duration of
warranty coverage for your particular Sloan product, are contained in the actual Sloan Limited Warranty. The Limited Warranty is subject to applicable laws in your country, state,
province or other jurisdiction—and disputes arising under the Limited Warranty are to be resolved by binding arbitration unless you provide Sloan with an opt-out notice no later
than 30 days after your purchase date. In case of a conflict with this summary, the terms and conditions set forth in the complete Limited Warranty will prevail.

PRIOR TO INSTALLATION

Wall must be finished with complete valve assembly installed.
For more information about valve installation, refer to the Valve
Assembly Installation Manual (08160127).

TOOLS REQUIRED FOR INSTALLATION

• Phillips screwdriver

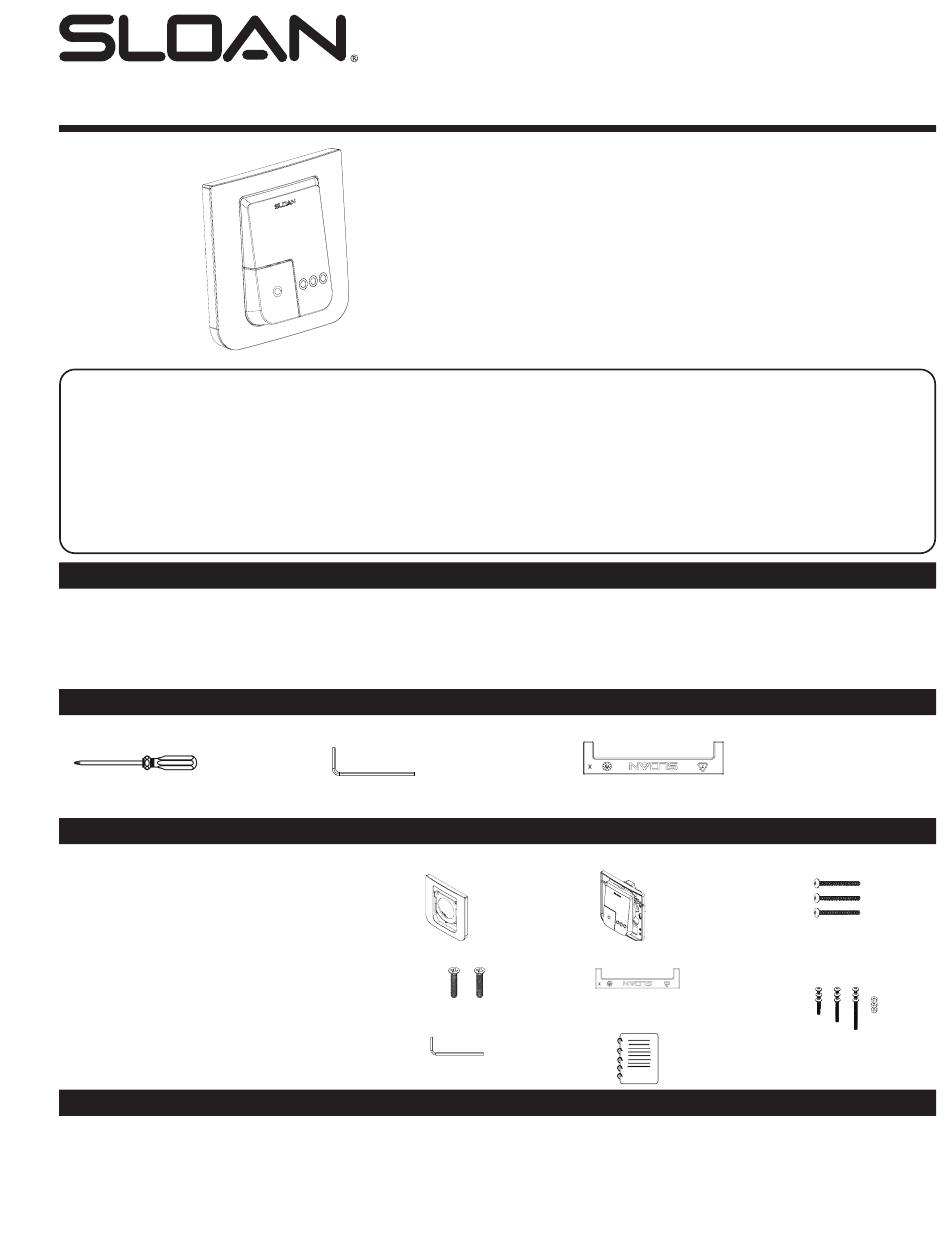

ITEMS INCLUDED WITH THE PRODUCT

WALL PLATE BOX
1. Wall Plate
2. Button and bracket assembly
3. (3) #10-32 x 2-1/2 screws to secure bracket to valve
4. (2) #8-32 x 7/8 screws to secure plate to valve
5. Depth setting tool
6. M3 screws (M3x16, M3x25, M3x34) and Locking nut
M3 for plunger
7. Hex wrench
8. Installation instructions

1. INSTALL FLUSHOMETER AND PURGE PLUMBING SYSTEM

Refer to the Valve Assembly Installation Manual (08160127).
INSTALLATION INSTRUCTIONS FOR
®
INDIA PRIVATE LIMITED — LIMITED WARRANTY SUMMARY
• 5/64" hex wrench (supplied)
1. Wall Plate
4. Plate to Valve Screws
7. Hex wrench
Manual Dual Flush Wall Plate:
TRF1000 Manual Dual Plate ASM CP
Compatible Manual Dual Flush Valves:
TRF1036-N Man Dual Flush
6/3 LPF Valve
TRF1024-N High Efficiency
4-4.5/2-2.5 LPF Valve
Wall plate opening must be minimum of 4" x 4" (102 x 102 mm) to
maximum of 4.5" x 4.5" (114 x 114 mm). Mud plate is provided and
must accompany valve for proper installation. Mud plate is removed
after wall is finished.
• Wall plate depth setting tool (supplied)
2. Button/Bracket Assembly
5. Depth Setting Tool
8. Instructions
1
Code No. 08160128
Rev. 0 (01/23)
3. Bracket to Valve Screws
6. Locking Nut for Plunger
Screws
