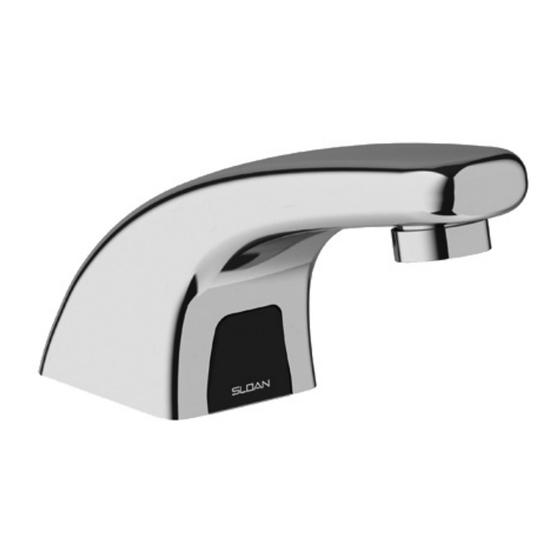

Sloan Optima EBF-615 Repair Parts And Maintenance Manual

Sloan Optima EBF-615 Repair Parts And Maintenance Manual

Faucets, low-height, hardwired/battery
Hide thumbs Also See for Optima EBF-615:

Advertisement

Quick Links

ETF-610 Low-height, hardwired
EBF-615 Low-height, battery
SPOUT ASSEMBLY
Description
Spout Assembly ETF-610/EBF-615
Sensor & Cable Assembly
Spout Mounting Kit
SPRAYHEAD OPTIONS
Description
Type
0.35 GPM/1.3 Lpm
MLM
0.5 GPM/1.9 Lpm
MLM
1.5 GPM/5.7 Lpm
LAM
2.2 GPM/8.3 Lpm
LAM
2.2 GPM/8.3 Lpm
AER
TRIMPLATE OPTIONS
Description
Code No.
4"
3365302
8"
3365303
EFP-39-A
EFP39A
EFP-10-A
EFP10A
EFP40A
Cover and Screw ONLY
EFP-40-A
Cover and Screw ONLY
EFP11A
EFP-11-1
SFP-36
SFP-37
SFP-6
SFP36
SFP37
SFP6
SFP35A
SFP-35-A
EFP100A
EFP-100-A
EFP99A
EFP-99-A
The information contained in this document is subject to change without notice.
Code No.
Part No.
0367003
EFP-3-A
0367006
EFP-6-A
0367074
EFP-74-A
Code No.
Part No.
3365756
ETF-1039-A
3365092
ETF-1023-A
0365395
ETF-688
3365162
ETF-1029-A
3365162
ETF-1024-A
Part No.
ETF-607-A
ETF-608-A
EFX-8-A
EFP-103-A
EFX8A
EFP103A
EFP-25
EFP25
EL-248-40
EL-248-40
X X
X X
X X
X X
EFP-98-A
ETF-233
ETF-416
SFP-38
ETF-233
ETF-416
SFP38
EFP98A
EFP-28-A
EFP28A
EFP-101-A
EFP101A
Repair Parts and Maintenance Guide
Optima
EBF-615/ETF-610 Faucets
®
Parts & Accessories
EFP-3-A
ETF-1039-A
ETF-1023-A
ETF-688
ETF-1029-A
ETF-1024-A
EFP-74-A
BELOW DECK ASSEMBLIES
Description
Control Box No Turbine
Control Box Turbine 0.5 gpm
Control Box Turbine 1.5 gpm
Quick Connect Spout Hose 24"
Control Box Cover w/Screw
Solenoid Assembly
Battery Pack
Double Inlet
Tee Filter Assembly
BDM & Single Inlet
Tee Filter Assembly Kit
BDT & Single Inlet
Tee Filter Assembly Kit
Replacement Filter Pack-(5) Filter
(5) Large O-rings (5) Small O-rings
24 VAC Power
Harness Assembly
110V/6 VDC Power Supply
100-240 VAC/6VDC Power Supply
120/24 VAC Power Supply
120/24 VAC Power Supply (Canada)
Plug-in
120/24 VAC Power Supply
(Box Mount)
Extension Cable
Splitter Cable
Gang Adapter Kit
Faucet to Module Ext. Cable*
NOTE: Some parts and accessories must be ordered separately.
* Not shown
179
EFP-6-A
Code No.
Part No.
0367039
EFP-39-A
0367040
EFP-40-A
0367011
EFP-11-A
0367025
EFP-25-A
0367010
EFP-10-A
0367103
EFP-103-A
3324113
EFX-8-A
0367028
EFP-28-A
0367099
EFP-99-A
0367100
EFP-100-A
0367101
EFP-101-A
0367098
EFP-98-A
0362006
SFP-6
0362016
SFP-36
0365534PK
ETF-233
0365879
ETF-416
0345370PK
EL-248-40
0362017
SFP-37
0362018
SFP-38
0362035
SFP-35-A
0367113
EFP-113-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Optima EBF-615 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sloan Optima EBF-615

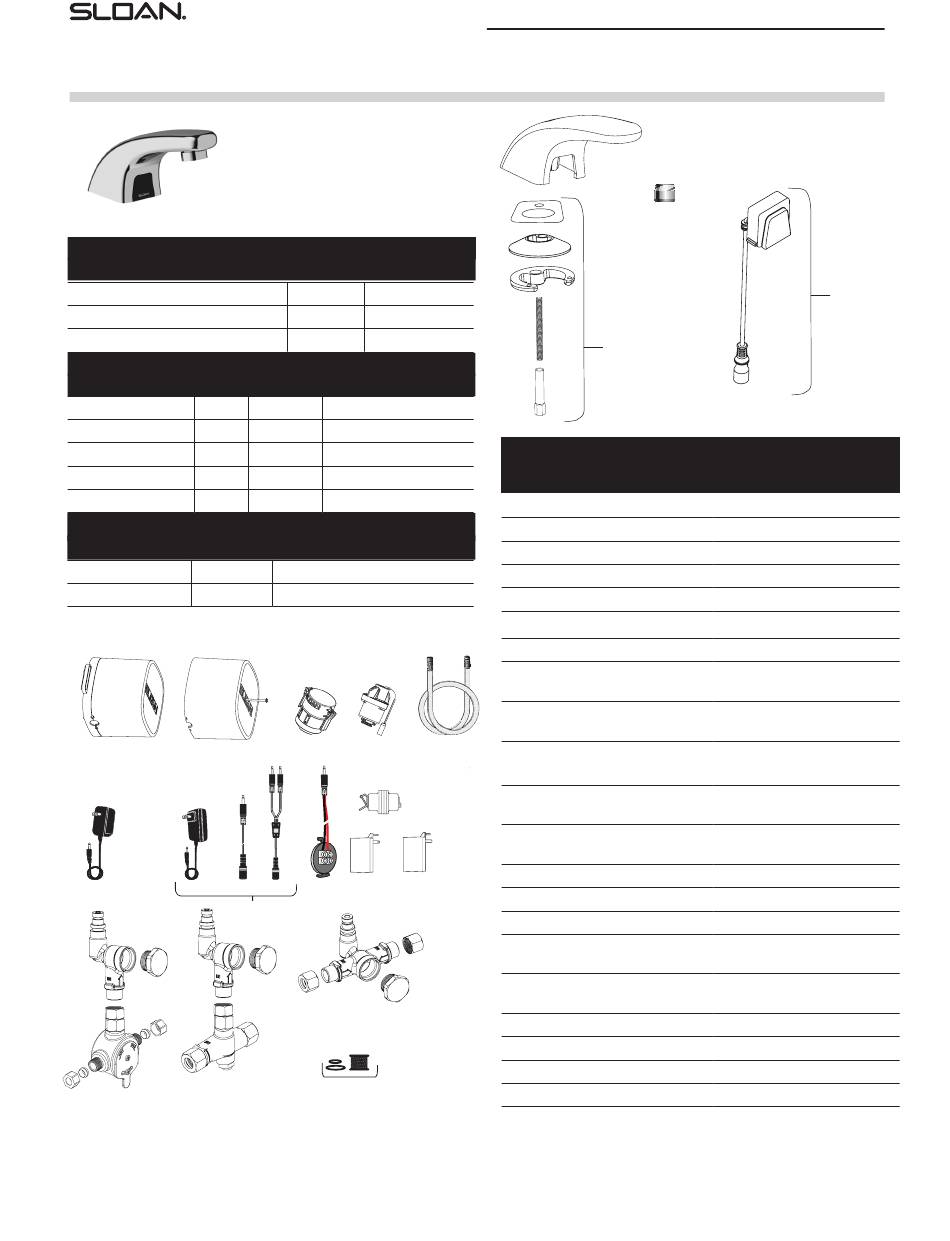

  • Page 1 Repair Parts and Maintenance Guide Optima EBF-615/ETF-610 Faucets ® Parts & Accessories EFP-3-A ETF-610 Low-height, hardwired EBF-615 Low-height, battery ETF-1039-A ETF-1023-A ETF-688 SPOUT ASSEMBLY ETF-1029-A Description Code No. Part No. ETF-1024-A Spout Assembly ETF-610/EBF-615 0367003 EFP-3-A EFP-6-A Sensor & Cable Assembly 0367006 EFP-6-A Spout Mounting Kit...
