Sloan TRUFLUSH TRF1036-N Installation Instructions

SLOAN
Sloan India Private Limited ("Sloan"), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan's reasonable
control. Instructions for filing claims can be found in the Limited Warranty which can be obtained at https://www.sloan.com/company/international/sloanindia or by requesting a
free copy by telephone to Sloan India toll free number 1 800 123 3080 or via Mobile: +91 729 005 0961 or via Landline : +91 124 601 3333. Sloan will repair or replace your
defective product, or provide a refund, as your exclusive remedy.
This is only a general summary of Sloan's Limited Warranty so it is important to note that the specific terms, conditions, limitations and exclusions, including the duration of
warranty coverage for your particular Sloan product, are contained in the actual Sloan Limited Warranty. The Limited Warranty is subject to applicable laws in your country, state,
province or other jurisdiction—and disputes arising under the Limited Warranty are to be resolved by binding arbitration unless you provide Sloan with an opt-out notice no later
than 30 days after your purchase date. In case of a conflict with this summary, the terms and conditions set forth in the complete Limited Warranty will prevail.

PRIOR TO INSTALLATION

This valve is designed for new construction or where there is easily accessed
plumbing for the fixture and the valve. This valve is designed for minimum six
inch (153 mm) wall space depth. Distance from center of the valve (inlet or
outlet pipe) to the finished surface of the wall can vary from 2"-3" (51-76 mm).

TOOLS REQUIRED FOR INSTALLATION

• Phillips screwdriver

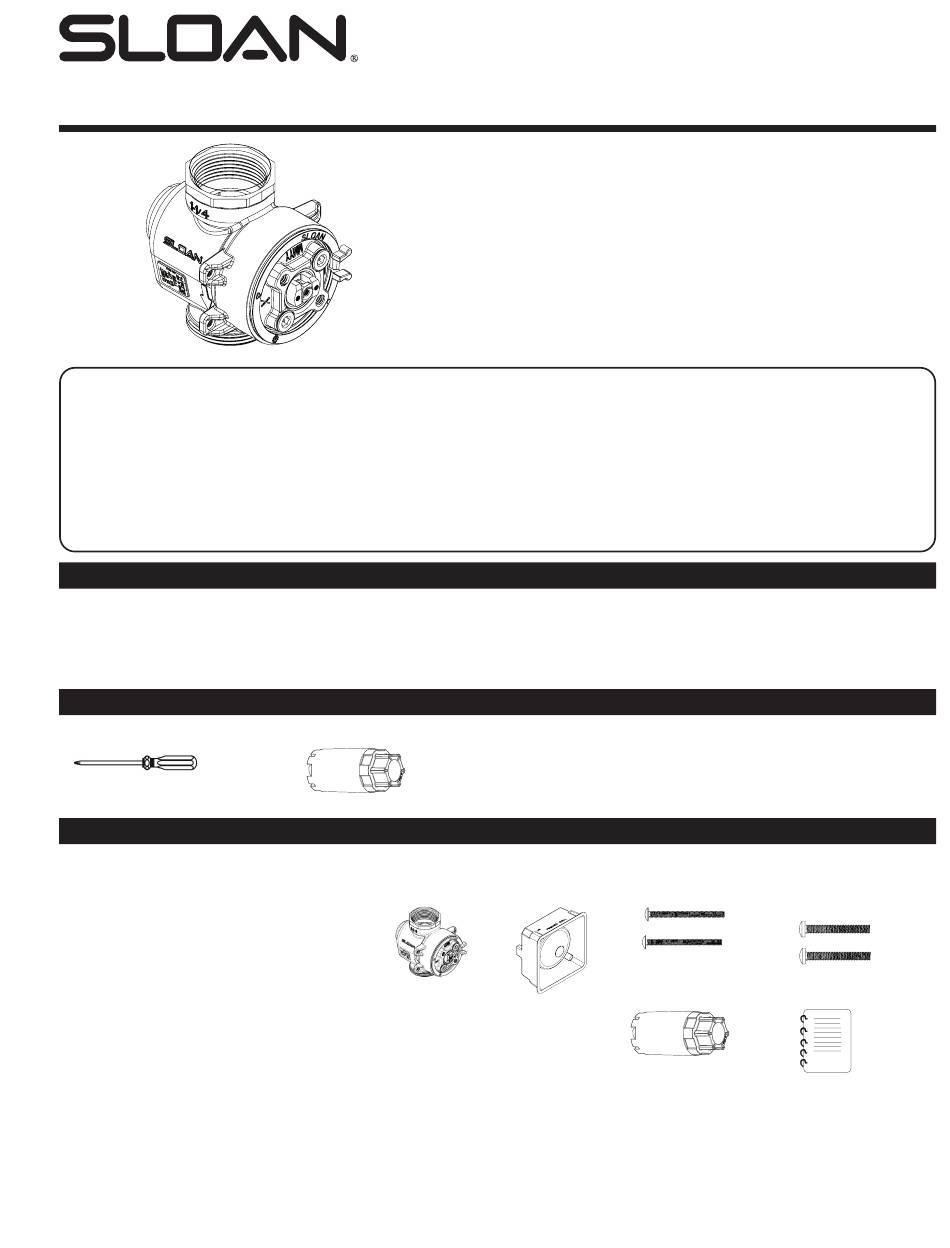

ITEMS INCLUDED WITH THE PRODUCT

VALVE BOX
1. Valve assembly
2. Mud Guard
3. (2) #10-32 x 2-1/2 screws to secure mud guard
4. (2) 1/4"-20 x 2" screws to remove activation assembly
5. Adjusingt tool
6. Installation instructions
INSTALLATION INSTRUCTIONS FOR
TRUFLUSH MANUAL DUAL FLUSH VALVE
®
INDIA PRIVATE LIMITED — LIMITED WARRANTY SUMMARY
• Adjusting tool (supplied)
1. Valve Assembly
Manual Dual Flush Models:
TRF1036-N-Man Dual Flush
6/3 LPF Valve
TRF1024-N High Efficiency
4-4.5/2-2.5 LPF Valve
Wall plate opening must be minimum of 4" x 4" (102 x 102 mm) to
maximum of 4.5" x 4.5" (114 mm x 114 mm). Mud plate is provided and
must accompany valve for proper installation. Mud plate is removed after
wall is finished.
2. Mud Guard
3. Mud Guard Screws
5. Adjusting Tool
1
Code No. 08160127
Rev. 0 (01/23)
4. Activation Assembly
Screws
6. Instructions
