Sloan TruFlush TRF1036-N Repair Parts And Maintenance Manual

Manual dual flush flushometer

Advertisement

Quick Links

1
2

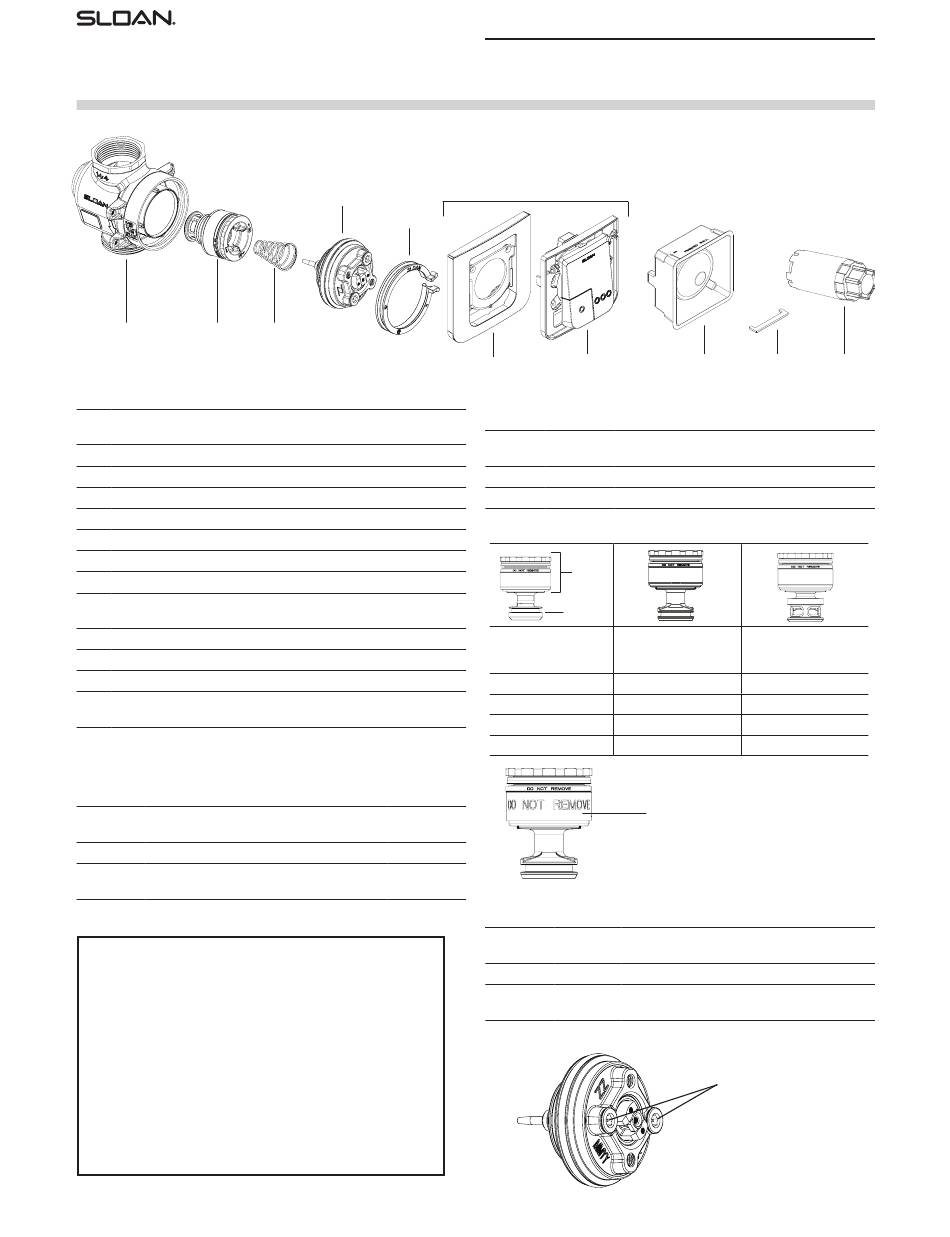

PARTS LIST
Item
No.
Code No.
Part No.
1
1A
0340085
GBL-66-A
2
See table to the right
3
See table below
4
3340011
5
GBL-1011-A
6
7
8
33400034
GBL-1061-A
3340012
9
GBL-1012-A
03400103
10
11
34000008
TRF-1000
* Included with Piston Assembly.
† Consult factory for finish options.
ITEM NO. 4 - MANUAL DUAL FLUSH ACTIVATION ASSEMBLY
SELECTION GUIDE
Code No.
Part No.
Description
33400097
GBL-1105-A
6/3 Lpf Closet Activation Assembly
33400098
GBL-1106-A
4-4.5/2-2.5 Lpf Closet Activation
Assembly
*
Colors may differ. Consult factory to confirm you have the correct activation assembly.
IMPORTANT NOTE FOR 4-4.5/2-2.5 Lpf (1.1-1.2/0.5-0.7 gpf)
FLUSHOMETERS & REPLACEMENT KITS
Sloan 4-4.5/2-2.5 Lpf (1.1-1.2/0.5-0.7 gpf) ultra-high efficiency flushometers
meets all applicable standards and requirements. However, with low flush volumes
it is imperative that they only be used in conjunction with toilet fixtures and drain
line systems designed to operate with adequate flow rates and volumes in order
to effectively eliminate waste and move it out of the building. It is the responsibility
of the user to ensure both of these conditions are met. Not doing so may void your
warranty.
Sloan 4-4.5/2-2.5 Lpf (1.1-1.2/0.5-0.7 gpf) piston kits are designed as a
replacement part for Sloan 4-4.5/2-2.5 Lpf (1.1-1.2/0.5-0.7 gpf) flushometers
only. They are not intended to be used as a means to reduce water consumption
in flushometers with higher flush volumes such as 6/3 Lpf (1.6/0.8 gpf). Using this
kit in any manner other than with a Sloan 4-4.5/2-2.5 Lpf (1.1-1.2/0.5-0.7 gpf)
flushometer may void your warranty.
The information contained in this document is subject to change without notice.
4
5
3
Description
Valve Assembly
Shut Off Sleeve (with O-Ring)
Piston Assembly with Spring
Conical Spring*
Activation Assembly
Safety Collar
TRF Manual Dual Flush Finished Wall Plate, CP
TRF Manual Dual Flush Wall Bracket with
Button Assembly
Replacement Kit, Mud Guard Manual (4 Pack)
Activation Assembly Tool
Depth Guide Tool, Dual Flush
TRF Manual Dual Flush Wall Bracket and Button
Assembly
(Includes items 6 & 7)
Aspirator
Color*
Orange/Red
Grey
Repair Parts and Maintenance Guide
TruFlush Manual Dual Flush Flushometer
TruFlush Manual Dual Flush Models
TRF1036-N – 6/3 Lpf (1.6/0.8 gpf)
TRF1024-N – 4-4.5/2-2.5 Lpf (1.1-1.2/0.5-0.7 gpf)
11
7
6
ITEM NO. 2 - MANUAL DUAL FLUSH PISTON ASSEMBLY SELECTION GUIDE
Code No.
Part No.
Description
33400083
GBL-1103-A
6/3 Lpf Closet Piston Assembly
33400064
GBL-1089-A
4-4.5/2-2.5 Lpf Closet Piston Assembly
*
Colors may differ. Consult factory to confirm you have the correct piston assembly.
PISTON
BODY
FLOW
CONTROL
Flush Volume
1.6/0.8 gpf
6/3 Lpf
Water Closet
Piston Body
Red with Screen
Flow Control
Orange
Part Number
GBL-1103-A
Code Number
33400083
FILTER SCREEN
DO NOT REMOVE
MANUAL DUAL FLUSH ASPIRATOR ASSEMBLY SELECTION GUIDE
Code No.
Part No.
Description
33400085
GBL-1099-A
6/3 Lpf Closet Aspirator Assembly
33400073IN
GBL-1095-A
4-4.5/2-2.5 Lpf Closet Aspirator
Assembly
*
Colors may differ. Consult factory to confirm you have the correct aspirator assembly.
AVAILABLE IN INDIA ONLY
8
10
9
Piston Color*
Orange/Red
Grey/Black
1.1-1.2/0.5-0.7 gpf
4-4.5/2-2.5 Lpf
Water Closet
Grey with Screen
Black Cage
GBL-1089-A
33400064
Aspirator
Color*
Orange/Red
Grey
ASPIRATORS
TRUFLUSH MANUAL DUAL FLUSH
ACTIVATION ASSEMBLY
