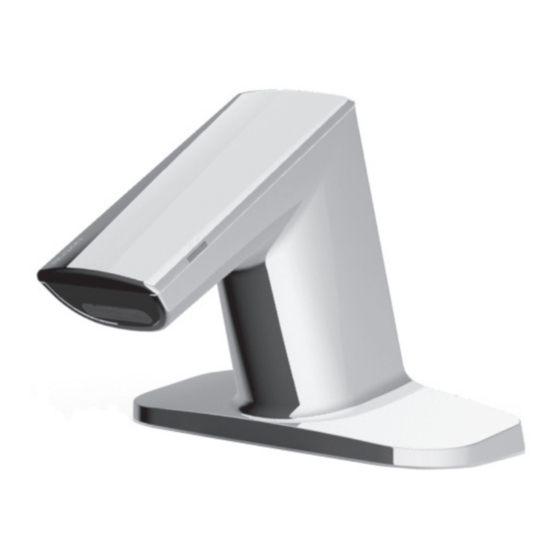

Sloan BASYS EFX-3 Series Repair Parts And Maintenance Manual

EFX-3XX SERIES
6C
6B
1B
9B
8
9A
16
10
17
18 15
The information contained in this document is subject to change without notice.
EFX-6XX SERIES
6A
3
4
2
1A
7
5
11
12
14
13
Repair Parts and Maintenance Guide
BASYS Faucet
®
Infrared Sensor Activated

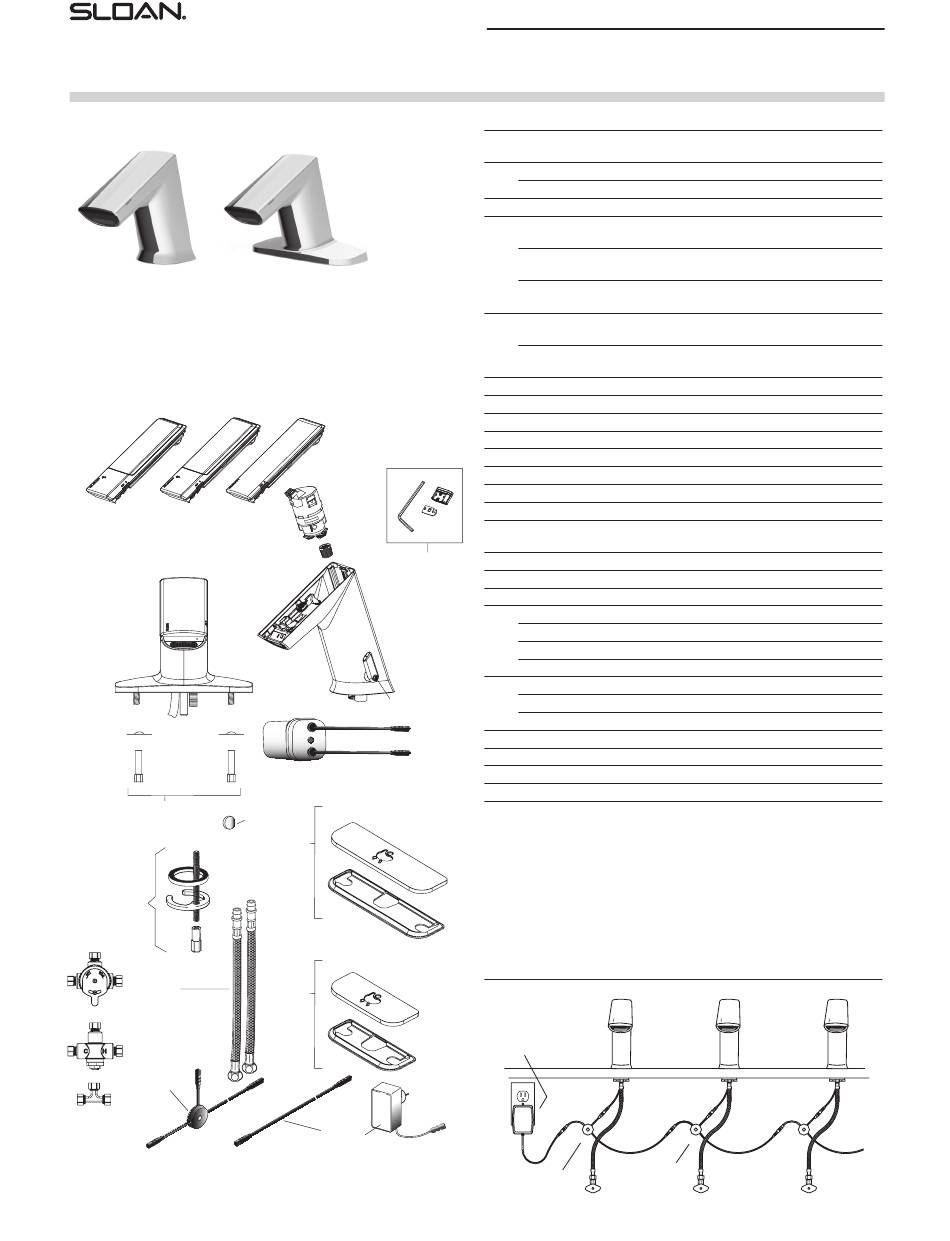

PARTS LIST—BASYS FAUCETS
Item
No. Code No. Part No. Description
—
1A. — Low Pedestal Faucet Assembly*
— — Low Pedestal Faucet Assembly with Mixer*
1B. — — Low Integrated Base Faucet Assembly†
3324104
2. EFX-1002-A 0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324103 EFX-1001-A 1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324102
EFX-1000-A 1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
—
3. EFX-37 0.5 gpm/1.9 Lpm Solenoid Valve Caddy
Assembly — Low (Green)
— EFX-38 1.5 gpm/5.7 Lpm Solenoid Valve Caddy
Assembly — Low (Blue)
0324019
4. EFX-19 Strainer (Filter)
5. 3324117 EFX-23-A Battery Pack Assembly
6A. 3324118 EFX-1-A Crown Assembly
3324119 EFX-3-A
6B. Solar Crown Assembly
3324120
6C. EFX-4-A Solar Crown with LCD Assembly
7. — — Mixer Handle Assembly (for EFX-3 IR models only)
8. — EFX-25 Handle Cap (for EFX-3 IR models only)
9A. 0335000 EAF-1 Faucet Mounting Kit (for pedestal model only)
—
9B. EFX-21-A Faucet Mounting Kit (for integrated base model
only)
10. 3335023 EAF-1008 13" (330 mm) Flexible Supply Hose (1)
11. 3324101 EFX-26-A Trim Plate for 8" Centerset Sink
3324100 EFX-20-A
12. Trim Plate for 4" Centerset Sink
0335009 EAF-11
13. Plug-in Voltage Adapter (US)
0335041 EAF-41 Plug-in Voltage Adapter (EU)
0335039 EAF-39 Plug-in Voltage Adapter (UK)
0335037
EAF-37 Box Type Voltage Adapter
0335024
14. EAF-24-A 11-13/16" (300 mm) Extension Cable
0335025 EAF-25-A 47-1/4" (1200 mm) Extension Cable
0335015 EAF-17-A 126" (3200 mm) Extension Cable
15. 0335023 EAF-23-A Splitter
3326009
16. MIX-60-A Mechanical, Below Deck Mixing Valve
0326045 MIX-135-A
17. Thermostatic, Below Deck Mixing Valve
18. 3365461 ETF-617-A Bak-Chek Tee
NOTE: If changing flow rate caddy and spray insert must be changed in conjunction.
† Single Supply faucets include Bak-Chek
®
*Integral Base model not available with integral to faucet side mixer; single supply faucets include Bak-Chek
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
ADAPTER
DAISY CHAIN
DAISY CHAIN
ELECTRICAL
ELECTRICAL CABLE
CABLE
155
®
TO ADDITIONAL
FAUCETS
(6 MAX.)
