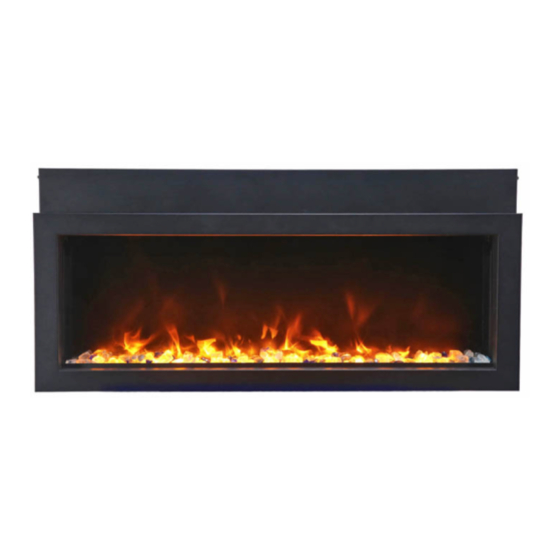

INSTALLATION /OWNER'S MANUAL
BI-30-XTRASLIM (BI-X190030-1)
BI-40-XTRASLIM (BI-X190040-1)
BI-50-XTRASLIM (BI-X190050-1)
BI-60-XTRASLIM (BI-X190060-1)
SAFETY INFORMATION
WARNING
For your safety, always comply with all
warnings and safety instructions
contained in this manual to prevent
personal injury or property damage.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this appliance.
INSTALLER: LEAVE OWNER'S MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN OWNER'S MANUAL FOR FUTURE REFERENCE.
Version:202210
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amantii BI-X190030-1
Summary of Contents for Amantii BI-X190030-1
- Page 1 INSTALLATION /OWNER’S MANUAL BI-30-XTRASLIM (BI-X190030-1) BI-40-XTRASLIM (BI-X190040-1) BI-50-XTRASLIM (BI-X190050-1) BI-60-XTRASLIM (BI-X190060-1) SAFETY INFORMATION WARNING For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS ............................FCC CAUTIONS .................................. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use. -
Page 4: Fcc Cautions
FCC CAUTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Unpacking And Testing The Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components are operating correctly. -
Page 6: Bi-30-Xtraslim (Bi-X190030-1)
BI-30-XTRASLIM (BI-X190030-1) This appliance has been tested in accordance with the UL Standard 2021 Description BI-30-XTRASLIM for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need... -
Page 7: Bi-40-Xtraslim (Bi-X190040-1)
BI-40-XTRASLIM (BI-X190040-1) This appliance has been tested in accordance with the UL Standard 2021 Description BI-40-XTRASLIM for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need NO HEATER assistance during installation, please MOTOR HEATER... -
Page 8: Bi-50-Xtraslim (Bi-X190050-1)
BI-50-XTRASLIM (BI-X190050-1) This appliance has been tested in Description BI-50-XTRASLIM accordance with the UL Standard 2021 Voltage 120V AC 60Hz for fixed and location dedicated electric Watts 1500W Max room appliances in the United States and NO HEATER Canada. If you need assistance during MOTOR HEATER installation, please contact your local Appliance Width... -
Page 9: Bi-60-Xtraslim (Bi-X190030-1)
BI-60-XTRASLIM (BI-X190060-1) Description BI-60-XTRASLIM This appliance has been tested in accordance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and Watts 1500W Max location dedicated electric room appliances NO HEATER in the United States and Canada. If you need MOTOR HEATER assistance during installation, please contact your local dealer. -
Page 10: Safety Drill Screw Area
SAFETY DRILL SCREW AREA There is a safety drill screw area as show below. Please make sure that the fix screws are in this area. Sa fe ty d rill s cre w a re a (Da rk a re a ) OUTDOOR INSTALLATION This electric fireplace is suitable for installation in outdoor areas protected from direct water impingement. -
Page 11: Mantel Clearance
MANTEL CLEARANCE The clearance to the mantel should be 4” minimum when a mantel is applied (Measurement is taken from the trim). Wall (Combustible facing allowed) Mantel Fireplace Fireplace Floor FOR BATHROOM USE If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If If this unit is installed in a bathroom it must be receptacle is used it must be readily accessible. -
Page 12: Hardware Installation
HARDWIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. -
Page 13: Installation
It is recommended that two people remove the surround. The rough wall opening size of the fireplace : W(“) D(“) H(“) BI-30-XTRASLIM 4 1/2 20 3/8 (BI-X190030-1) BI-40-XTRASLIM 4 1/2 20 3/8 (BI-X190040-1) BI-50-XTRASLIM 4 1/2 20 3/8 (BI-X190050-1) - Page 14 2. Remove the optional trim from the unit as illustrated below. Remove the wall framing plates from the unit. 3. Re-attach the framing plates to the unit as shown below.
- Page 15 4. Bend the framing plates as shown. 5. Lift the unit into the wall opening. Note: Two people are required...
- Page 16 6. Drive the mounting screws threw the framing plates securing the unit into the wall studs. 7. Using desired materials, finish to the glass for a clean face installation OR re-attach the steel surround that was removed in STEP 1.
- Page 17 Wall-mount installation instructions Note: The mantel is available for Optional Purchase only and does not come with the unit. 1. Take out the unit from the box. Please do the pre-test before you install the fireplace. 2. Pull out the optional trim from the unit as shows below. Remove the framing plates from the unit.
- Page 18 3. Fix the brackets as the picture shows below. You can find the brackets in the plastic bag with the manual. 4. Make sure the brackets are fixed the right way as the picture shows below.
- Page 19 5. Put the fireplace into the back of the wooden frame. 6. Screw the brackets with the wooden frame and make sure the fireplace and the wooden frame are firmly fixed.
- Page 20 7. Take the hanger from the back of the fireplace by removing screws. Select a location for the hanger to be fixed that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains, drapes, furniture, bedding, paper, etc.
- Page 21 Fix a bracket beneath the fireplace to ensure the fireplace won’t move.
-
Page 22: Media Options
MEDIA OPTIONS The only media that comes with this version is Clear glass. Consumers may purchase optional decorative media if they choose. See dealer for more details. Clear glass Removing the front glass Unplug the unit from the power and make sure it is switched off. Unscrew the adjustable screws to take off the front glass. -
Page 23: Operation
OPERATION The Fireplace operates by using either the touch panel located on the upper left hand corner or by remote control. Plug the fireplace into a 15 Amp wall socket. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION Press to turn on and off the fireplace. -
Page 24: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes some time for the receiver to respond to the transmitter. - Page 25 AUTO means fireplace can automatically adjust to the temperature you set. When in AUTO, you can set the desired temperature with keys. You can switch temperature between Celsius and Fahrenheit with keys.When it is on Auto mode,fireplace operate at 1500W. Press this button to adjust the speed of the flame.
-
Page 26: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1. - Page 27 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
- Page 28 6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi. FIG.7 NOTE: Turn off the flashing blue Wifi indicator light Touch the (power button) once, the blue light will stop flashing.
-
Page 31: Exploded View
EXPLODED VIEW... -
Page 32: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 33: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES:... -
Page 34: Warranty
Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this warranty, Amantii warrants such products to be free from defects in material and workmanship for a period of five (5) years from the date of the first purchase of such products. - Page 35 The provisions of the United Nations Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of products covered by this limited warranty. GENERAL Amantii reserves the right to make changes at any time without notice, in design, material, specifi cations, prices and the right to discontinue styles and products. GLASS...
