- Page 1 SURROUND INSTALLATION GUIDE BI-40-XTRASLIM Series...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Read all instructions before installing or using this fireplace. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the fireplace. Always unplug heater when not in use. - Page 3 STEP 1: Carefully remove the fireplace from the box. NOTE: There may be Prior to installing the fireplace, test to make sure it operates properly by trace of odor during the plugging the power supply cord into a 120 Volt grounded outlet. first few minutes of Test all aspects of its operation (manual switches, remote and heater) to make sure all components initial use.
- Page 4 STEP 2: Carefully remove the screws and framing plates from the sides of your fireplace. Store with manual and warranty , these framing plates will not be used with the surround.
- Page 5 STEP 3: Using the provided screws secure the mantel brackets to the sides of the fireplace in place of the framing plates. When securing the surround brackets, ensure that you are inserting the screws into the proper pilot holes. Shown in diagram below. If you do not attach the screws in the correct pilot holes, the surround will not properly attach to the fireplace.
- Page 6 STOP AND CHECK When you completed step 1 through step 3, your fireplace should look like the pictures shown with the surround plates attached. Please ensure your plates are flush with the trim and securely screwed into the pilot holes. If they are not as shown, remove the screws and repeat step 3.
- Page 7 STEP 4: Insert the fireplace into the opening of the surround ensuring the flange (circled above) fits into the opening. STEP 5: Secure the fireplace to the surround using the attached surround brackets and screws.

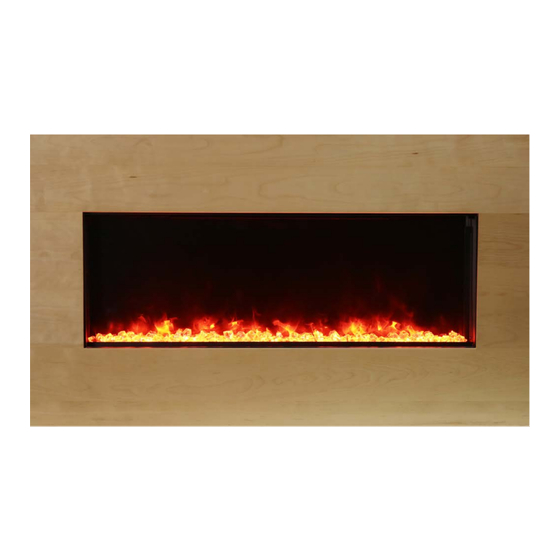

- Page 8 Disclaimer: Amantii’s newest line of birch wood surrounds bring the beauty of genuine wood into your home or business. Each of these surrounds have been crafted from birch wood and a paint wash applied, reflecting the variety of colors found in a birch tree forest.
- Page 9 WARNING: Be sure that the bolts have been properly anchored to withstand the weight. NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this fireplace on a wall. As it appears in your manual: Using a spirit level select a Select a location that is not prone to...
- Page 10 HEAVY: The unit is heavy, make sure 2 people handle the whole set and operate with care.
- Page 11 As it appears in your manual: Secure the fireplace to the hanger mounted on the wall. To prevent fireplace from moving, use the provided safety bracket to fasten the fireplace to the wall.
- Page 12 You have successfully completed the installation. Enjoy your Amantii products! For complete instruction guide and more info:...
