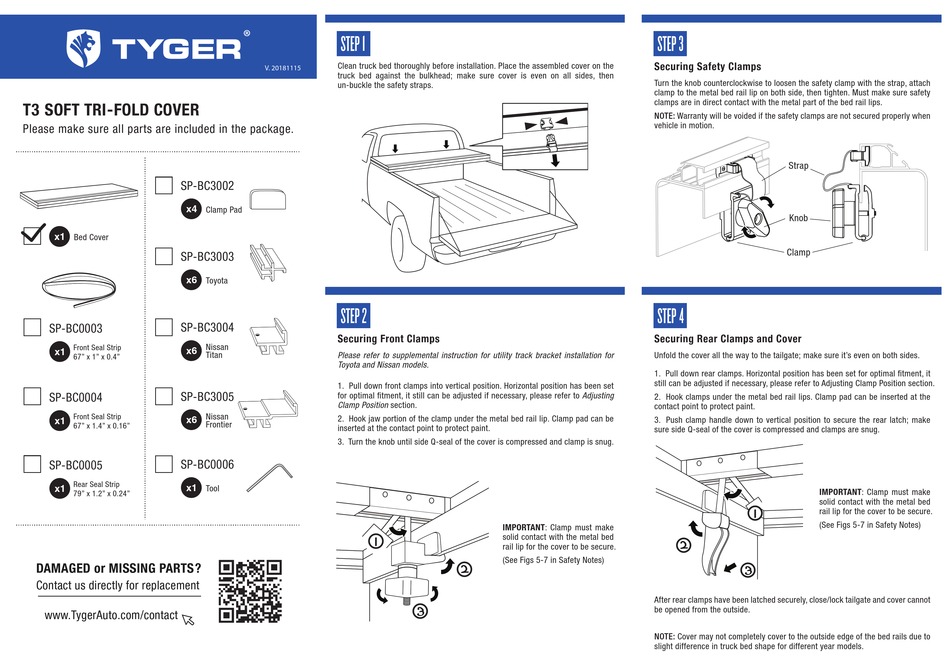

Tyger T3 Quick Start Manual

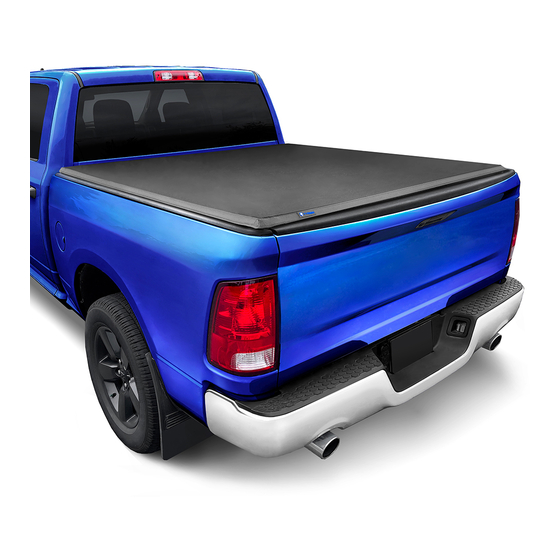

T3 SOFT TRI-FOLD COVER
Please make sure all parts are included in the package.
SP-BC3002
x4
x1
Bed Cover
SP-BC3003
x6
SP-BC3004
SP-BC0003
Front Seal Strip
x6
x1
67" x 1" x 0.4"
SP-BC3005
SP-BC0004
Front Seal Strip
x6
x1
67" x 1.4" x 0.16"
SP-BC0006
SP-BC0005
Rear Seal Strip
x1
x1
79" x 1.2" x 0.24"
DAMAGED or MISSING PARTS?
Contact us directly for replacement
www.TygerAuto.com/contact
1
Clean truck bed thoroughly before installation. Place the assembled cover on the
V. 20181115
truck bed against the bulkhead; make sure cover is even on all sides, then
un-buckle the safety straps.
Clamp Pad
Toyota
2
Securing Front Clamps
Nissan
Titan Please refer to supplemental instruction for utility track bracket installation for
Toyota and Nissan models.
1. Pull down front clamps into vertical position. Horizontal position has been set
for optimal fitment, it still can be adjusted if necessary, please refer to Adjusting
Clamp Position section.
Nissan
2. Hook jaw portion of the clamp under the metal bed rail lip. Clamp pad can be
Frontier
inserted at the contact point to protect paint.
3. Turn the knob until side Q-seal of the cover is compressed and clamp is snug.
Tool
3
Securing Safety Clamps
Turn the knob counterclockwise to loosen the safety clamp with the strap, attach
clamp to the metal bed rail lip on both side, then tighten. Must make sure safety
clamps are in direct contact with the metal part of the bed rail lips.
NOTE: Warranty will be voided if the safety clamps are not secured properly when
vehicle in motion.
4
Securing Rear Clamps and Cover
Unfold the cover all the way to the tailgate; make sure it's even on both sides.
1. Pull down rear clamps. Horizontal position has been set for optimal fitment, it
still can be adjusted if necessary, please refer to Adjusting Clamp Position section.
2. Hook clamps under the metal bed rail lips. Clamp pad can be inserted at the
contact point to protect paint.
3. Push clamp handle down to vertical position to secure the rear latch; make
sure side Q-seal of the cover is compressed and clamps are snug.
IMPORTANT: Clamp must make
solid contact with the metal bed
rail lip for the cover to be secure.
(See Figs 5-7 in Safety Notes)
After rear clamps have been latched securely, close/lock tailgate and cover cannot
be opened from the outside.
NOTE: Cover may not completely cover to the outside edge of the bed rails due to
slight difference in truck bed shape for different year models.
Strap
Knob
Clamp
IMPORTANT: Clamp must make
solid contact with the metal bed
rail lip for the cover to be secure.
(See Figs 5-7 in Safety Notes)
