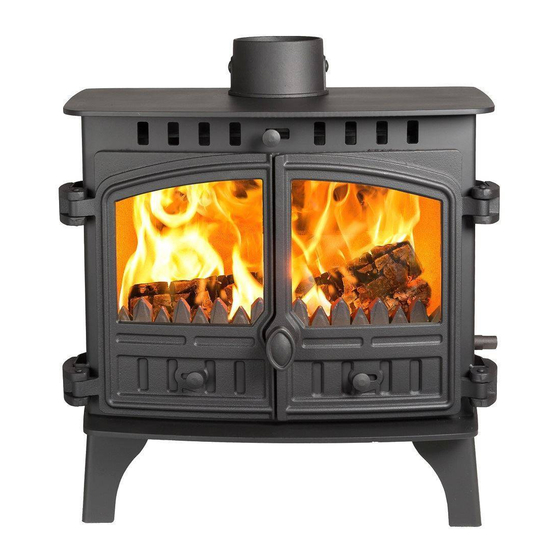

Multifuel cleanburn stove
Hide thumbs
Also See for Herald 8 Slimline CE:
- Installation and operating instructions manual (18 pages) ,
- Installation, operating and maintenance manual (40 pages) ,
- Instructions manual (36 pages)
Table of Contents
Advertisement
Quick Links
H E R A L D 8
S L I M L I N E
C E
M U L T I F U E L
C L E A N B U R N
S T O V E
Installation and Operating Instructions
A Hetas certified engineer must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-certified engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these
instructions to the stove user when the installation is complete. Leave the
system ready for operation and instruct the user in the correct use of the
appliance and operation of controls.
Advertisement
Table of Contents
Related Manuals for Hunter Stoves Herald 8 Slimline CE
Summary of Contents for Hunter Stoves Herald 8 Slimline CE
- Page 1 H E R A L D 8 S L I M L I N E M U L T I F U E L C L E A N B U R N S T O V E Installation and Operating Instructions A Hetas certified engineer must carry out the installation of this appliance;...
- Page 2 Herald 8 Slimline CE Technical Specification Stove Mass 108 kg Wood Total Efficiency 73.0 % Nominal Heat Output 6.0 KW Mean CO Emission (at 13% O2) 0.38 % Mean Flue Gas Temperature 293 °C Flue Gas Mass Flow 6.4 g/s...
-
Page 3: Flue Collar
Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Flue Collar Place the Flue Gasket on the top, or rear outlet as required. Place the Flue Collar on top of the Gasket. -
Page 4: Fire Bricks
Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter stove. Side Bricks Remove all the Riddling Bars, Cam Bar, Catch Bar and Ashpan. -
Page 5: Installation Instructions
Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove. -
Page 6: Installation
Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method. -
Page 7: Material Clearances
Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove. -
Page 8: Commissioning And Handover
Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere. Do not run the stove at full output for at least 24 hours. -
Page 9: Aerosol Sprays
Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove. -
Page 10: Multifuel Grate
Damper Assembly (Optional) When burning wood, the flue damper assembly may be fitted. When the damper is set in the open position the chimney draws at full draught, increasing the volume of airflow through the stove and flue. Shutting the damper restricts the flow, slowing the rate of burning. Warning! The flue damper must not be fitted when burning solid mineral fuel. -
Page 11: Lighting The Stove
HETAS approved list. Hunter Stoves recommend wood logs for use on this appliance. Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above, nor does it cover instructions for the use of other fuels. -
Page 12: Safety Notes For Your Guidance
Safety notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances. DO NOT OVERFIRE –... -
Page 13: General Maintenance
Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from... -
Page 14: Chimney And Flue Ways
Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. -
Page 15: Stove Spares
STOVE SPARES RIGHT HAND DOOR Right Hand Door (HHR08/084) Door Glass (HHR08/082) Glass Gasket Glass Clip (HHR08/081) (HHR08/046) Glass Clip Screw (FSJM05008SS) Door Knob (HCR06/059) M8 Full Nut (FNFN08) Catch Shaft (HHR08/111) Circlip (FLRX07) Door Slider (HHR08/119) M8 Full Nut (FNFN08) Slider Knob (HHR08/045) Catch (HMSS04/037) LEFT HAND DOOR...
