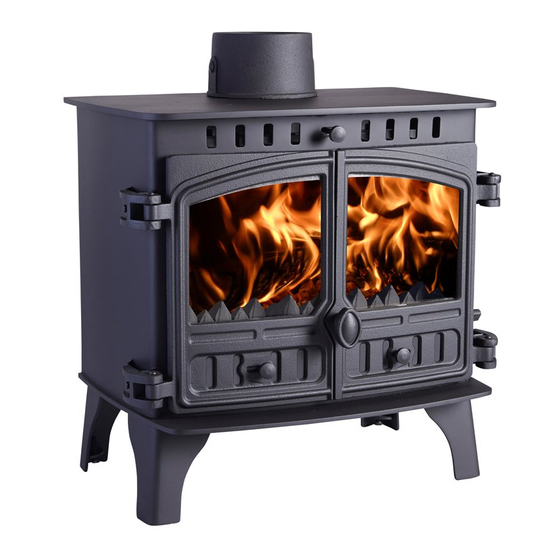

H E R A L D 8
S L I M L I N E
C L E A N B U R N
Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these instructions
to the stove user when the installation is complete. Leave the system ready for
operation and instruct the user in the correct use of the appliance and operation of
controls.
JINHHW08 Rev B 24/01/13
C E
S T O V E
I I
V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Herald 8 Slimline CE vII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunter Stoves Herald 8 Slimline CE vII

Summary of Contents for Hunter Stoves Herald 8 Slimline CE vII

  • Page 1 H E R A L D 8 S L I M L I N E C L E A N B U R N S T O V E Installation and Operating Instructions An accredited competent person must carry out the installation of this appliance; alternatively, your local Building Control Officer can approve the completed installation, should a non-accredited engineer undertake the installation.
  • Page 2 Herald 8 Slimline CE vII Technical Specification Stove Mass 108 kg Wood Total Efficiency 72.4 % Nominal Heat Output 5.0 KW Mean CO Emission (at 13% O2) 0.25 % Mean Flue Gas Temperature 271 °C Flue Gas Mass Flow 6.2 g/s...

  • Page 3: Important Warning

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.

  • Page 4: Fire Bricks

    Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter stove. Side Bricks Remove all the Riddling Bars, Cam Bar, Catch Bar and Ash pan.

  • Page 5: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.

  • Page 6: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method.
  • Page 7 Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm on top and 50mm (although we recommend 150mm) around the sides and 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.

  • Page 8: Commissioning And Handover

    Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere.

  • Page 9: Operating Instructions

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.

  • Page 10: Notes On Wood Burning

    Grate Your Hunter Stove is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.

  • Page 11: Safety Notes For Your Guidance

    Recommended Fuels Hunter Stoves recommend that wood logs are burnt in this appliance. This appliance is designed and approved to burn wood logs with a moisture content not exceeding 20%. Burn only dry, well seasoned wood, which should have been cut, split and stacked for at least 12 months, with free air movement around the sides of the stack to enable it to dry out.
  • Page 12 periods without first adjusting the controls to a safe setting – careful air supply control should be exercised at all times. WARNING – FUME EMISSION Properly installed and operated, this appliance will not emit fumes. Occasional fumes from de-ashing and refuelling may occur.

  • Page 13: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter Stoves spares range.

  • Page 14: Chimney And Flue Ways

    Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle brick will need to be removed from its supports in order to sweep the chimney (see assembly instructions).

  • Page 15: Stove Spares

    STOVE SPARES SINGLE DOOR Door Glass (HHR08/074) Single Door (HHR08/072) Glass Gasket (HHR08/075) Glass Clip (HHR08/164) Glass Clip Screw Door Handle (FSJM05008SS) (HCR06/059) Door Catch Assembly (DCH4) Door Cover (HHR08/073) Rope Sealing Kit Door Slider (CH08/003) (SCPH8SDSK) Slider Knob (HHR08/045) JINHHW08 Rev B 24/01/13...
  • Page 16 STOVE SPARES RIGHT HAND DOOR Right Hand Door (HHR08/084) Door Glass (HHR08/082) Rope Sealing Kit (SCPH8NDSK) Glass Gasket (HHR08/081) Glass Clip RH Door Cross (HHR08/164) (HHR08/080B) Glass Clip Screw (FSJM05008SS) Door Handle (HCR06/059) Door Slider (HHR08/119) Door Catch Assembly Slider Knob (HHR08/045) (DCH4) LEFT HAND DOOR Left Hand Door...
  • Page 17 BODY ASSEMBLY – PART SECTION - MULTIFUEL Flue Gasket (CH05/042) Hinge (HHR08/041) Hinge Pin (FRRE08-2.00) Baffle Side Brick (HHW08/039) (HHW08/030) Tertiary Air Bar Riddling Bar – Upper (HHR08/140) (HHW05/034) Riddling Bar – Lower Rear Brick (HHW08/032) (HHW05/033) Riddling Support Catch Bar (HHR08/009) Single-Door (HHR08/183) Double-Door (HHR08/083)
