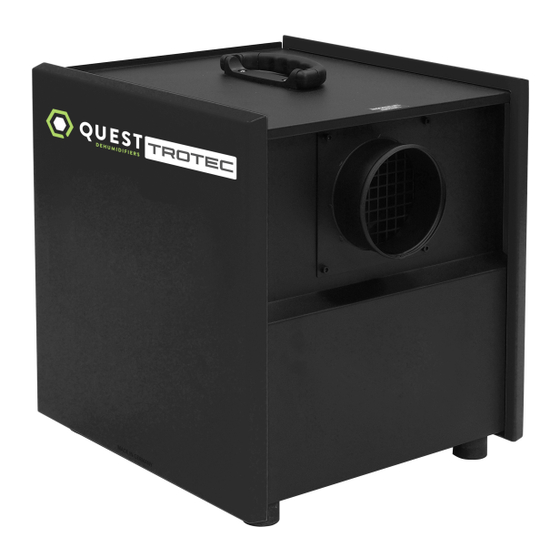

Quest TR 80 / TR 110
Installation, Operation and Maintenance Instructions
Installation, Operation and Maintenance Instructions
– Read and Save These Instructions –
This manual is provided to acquaint you with the dehumidifier so that installation, operation and maintenance can
proceed successfully. Ultimate satisfaction depends on the quality of installation and a thorough understanding of
this equipment. The dehumidifier is built around tested engineering principles and has passed a thorough inspection
for quality of workmanship and function.
Specifications subject to change without notice.
4201 Lien Rd
Madison, WI 53704
www.QuestClimate.com
1
Toll-Free 1-877-420-1330
info@QuestClimate.com
08/20 Rev. A
Advertisement
Table of Contents
Related Manuals for Therma-Stor Quest TR 80
Summary of Contents for Therma-Stor Quest TR 80
- Page 1 Quest TR 80 / TR 110 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions – Read and Save These Instructions – This manual is provided to acquaint you with the dehumidifier so that installation, operation and maintenance can proceed successfully.
-
Page 2: Table Of Contents
Description of symbols Table of contents WARNING SYMBOL. This symbol is followed by haz- 1. Notes on how to use the manual..........2 ard warning instructions whose non-compliance Description of symbols ......2 may cause serious injuries and/or death and/or Typographical conventions . -
Page 3: General Safety Instructions
• Do not apply any liquids to the interior of the device. If this does 4. General safety instructions happen nevertheless, pull out the power cord and have the device checked and/or repaired by the Trotec customer service. Please observe the following safety instructions! • The device may only be opened, cleaned on the inside and repaired Any non-compliance with these instructions may by authorised and appropriately trained personnel. -
Page 4: Functional Principle
Functional principle TTR 400D/500D Adsorption dehumidifiers work with a drying wheel (rotor) consisting of layers of flat and corrugated fibres with a chemically bound silica gel. This generates a honeycomb structure with numerous axial air channels with a large surface and direct connections to the inner pore structure of the silica gel. -
Page 5: Description Of Device
Optional accessories 7. Description of device For operation of the dehumidifier, the following accessories are available: • Hose adapter for installation at the intake cover (12) Structure and components • Air filter box with tube/hose port for Z line filter G4 to F9 • Hygrostat with Tuchel plug for connection socket (9) • Combined meter for operating hours and energy consumption For the technical data and order conditions, please contact the Trotec... -
Page 6: Operation
upstream of the fan. However, this leads to an unnecessary and often operation may only be performed by a trained electrician. If necessary, considerable increase in noise and energy consumption. please contact the Trotec customer service. This device is equipped with a variable-speed high performance fan Air volume adjustment for each air stream to supply the nominal drying and regeneration air flows at maximum speed with connected air hoses (each approx. -
Page 7: Replacing The Filter
12. Dangerous substances Caution! Damage to the device due to improper handling. When operating the dehumidifier in rooms that are contaminated by cer- Cleaning, maintenance and repair of electric and tain chemical substances, the dehumidification unit (rotor) may be dam- mechanical components may only be carried out by aged permanently. -
Page 8: Disposal
Additionally, the air that is taken in by the device must not contain any substances with melting points below 200 °C! Immediately before commissioning the dehumidifier, the following re- quirements must be fulfilled: • The dehumidifier may only be used according to the parameters specified in chapter "Technical data". -
Page 9: Troubleshooting
15. Troubleshooting Error Diagnosis Possible cause Remedy No dehumidification Drying air does not show any Rotor drive defective Check the rotor drive and repair if temperature increase necessary Ampere meter displays consider- Heating unit defective Replace heating unit ably deviating values Ampere meter displays deviating Insufficient regeneration air flow Check free air flow,... - Page 10 Circuit diagram TTR 400...
- Page 11 Circuit diagram TTR 400D...
- Page 12 Circuit diagram TTR 500D...
- Page 13 Dimensions TTR 400 Ø 124(DN125) Dimensions TTR 400D Ø 124(DN125) Dimensions TTR 500D Ø 124(DN125)
- Page 14 Spare parts TTR 400 Item Designation Article number Item Designation Article number Housing P 1000 1276 Ampere meter P 1000 0179 Cover P 1000 1276 Operating hour counter P 1000 1137 Panel P 1000 1276 Cable bushing P 1000 1247 Rotor cartridge P 1000 1276 Filter mat...
- Page 15 Spare parts TTR 400D Item Designation Article number Item Designation Article number Housing P 1000 1276 Ampere meter P 1000 0179 Cover P 1000 1276 Operating hour counter P 1000 1137 Panel P 1000 1276 Cable bushing P 1000 1247 Rotor cartridge P 1000 1276 Filter mat...
- Page 16 Spare parts TTR 500D Item Designation Article number Item Designation Article number Housing P 1000 1277 Ampere meter P 1000 1234 Cover P 1000 1277 Operating hour counter P 1000 1137 Panel P 1000 1277 Cable bushing P 1000 1247 Rotor cartridge P 1000 1277 Filter mat...
- Page 17 EC Declaration of Conformity TROTEC GmbH & Co. KG ® Grebbener Straße 7 D-52525 Heinsberg hereby declares that dryers described below conformi- with guidelines stated herein with respect their conception construction, as well as the type of model placed on the market. Important notice: improper use,...
- Page 20 trotec GmbH & co. KG Grebbener str. 7 d-52525 heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
