NAL RESEARCH CORPORATION SHOUT nano 100 Quick Start Manual

Hide thumbs Also See for SHOUT nano 100:
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

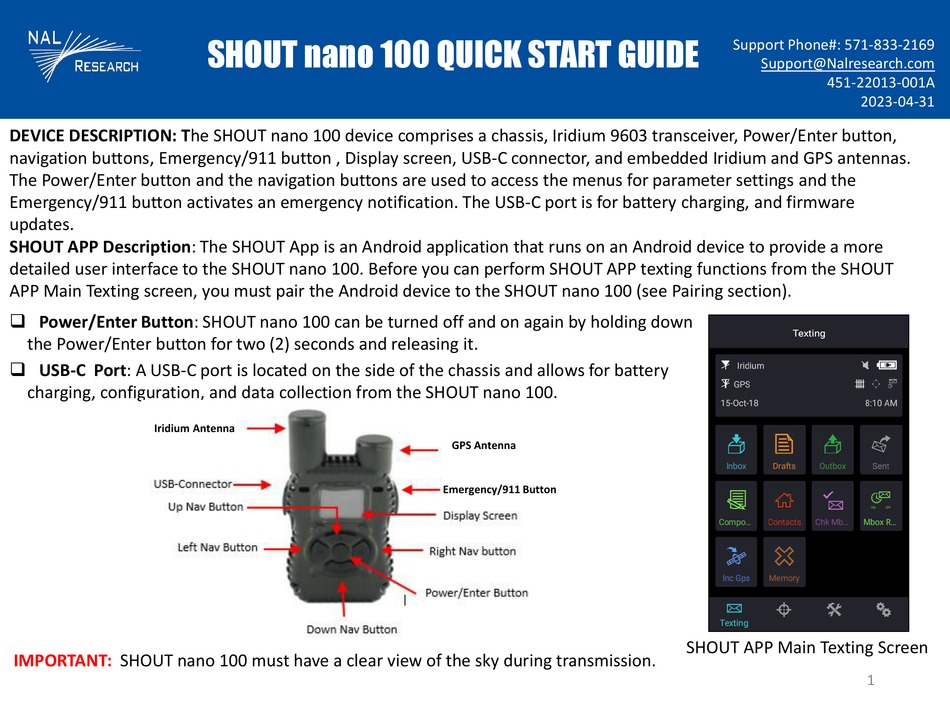

DEVICE DESCRIPTION: The SHOUT nano 100 device comprises a chassis, Iridium 9603 transceiver, Power/Enter button,
navigation buttons, Emergency/911 button , Display screen, USB-C connector, and embedded Iridium and GPS antennas.
The Power/Enter button and the navigation buttons are used to access the menus for parameter settings and the
Emergency/911 button activates an emergency notification. The USB-C port is for battery charging, and firmware
updates.
Shout App Description: The SHOUT App is an Android application that runs on an Android device to provide a more
detailed user interface to the SHOUT nano 100. Before you can perform SHOUT APP texting functions from the SHOUT
APP Main Texting screen, you must pair the Android device to the SHOUT nano 100 (see Pairing section).
 Power/Enter Button: SHOUT nano 100 can be turned off and on again by holding down
the Power/Enter button for two (2) seconds and releasing it.
 USB-C Port: A USB-C port is located on the side of the chassis and allows for battery
charging, configuration, and data collection from the SHOUT nano 100.
Iridium Antenna
IMPORTANT:
SHOUT nano 100 must have a clear view of the sky during transmission.
SHOUT nano 100 QUICK START GUIDE
GPS Antenna
Emergency/911 Button
Support Phone#: 571-833-2169
Support@Nalresearch.com
451-22013-001A
2023-04-31
SHOUT APP Main Texting Screen
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOUT nano 100 and is the answer not in the manual?

Questions and answers

Related Manuals for NAL RESEARCH CORPORATION SHOUT nano 100

Summary of Contents for NAL RESEARCH CORPORATION SHOUT nano 100

  • Page 1 SHOUT APP Description: The SHOUT App is an Android application that runs on an Android device to provide a more detailed user interface to the SHOUT nano 100. Before you can perform SHOUT APP texting functions from the SHOUT APP Main Texting screen, you must pair the Android device to the SHOUT nano 100 (see Pairing section).
  • Page 2 SHOUT nano 100 QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-22013-001A 2023-04-31 EMERGENCY/911 MODE ACTIVATION: Activation immediately sends a location report with the Emergency bit set, and thereafter sends location reports with the Emergency bit set at a rate configured in the Emergency Report Rate parameter until the emergency/911 mode is canceled.
  • Page 3 SHOUT nano 100 QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-22013-001A 2023-04-31  DEVICE FEATURES (CONTINUED)  Press Configuration to display Enable Tracking, Trk Rep Rate, ChkMbox Rate, Contrast, Back Light, and Reset Settings o Press Enable Tracking to enable or disable tracking.
  • Page 4 NOTE: If the battery LED starts blinking in a 1.25 sec on and 0.25 sec off pattern, this indicates the battery requires charging. CHARGING BATTERY Fully charge the SHOUT nano 100 before use. It must be kept in environments between 0°C (32°F) and 45°C (113°F) when charging. The SHOUT nano 100 can be charged with the supplied AC wall adapter or connect to a standard USB device.
  • Page 5 SHOUT nano 100 QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-22013-001A 2023-04-31 SHOUT APP MESSAGES  Check Messages Select Texting from the Home screen. Select Inbox from the Texting screen. • Read messages have a white opened envelope symbol next to them.
