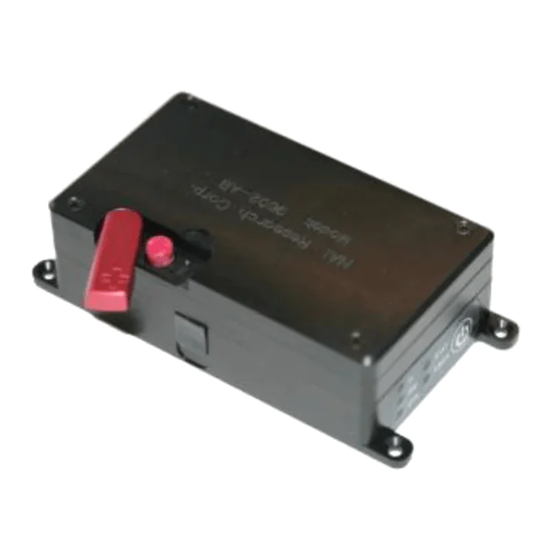

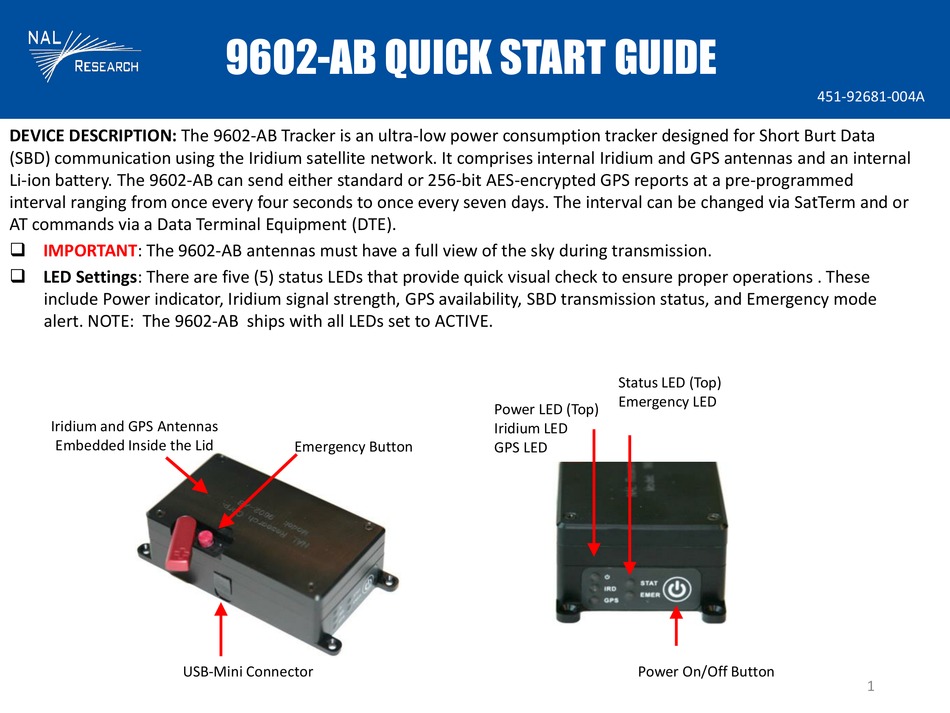

DEVICE DESCRIPTION: The 9602-AB Tracker is an ultra-low power consumption tracker designed for Short Burt Data
(SBD) communication using the Iridium satellite network. It comprises internal Iridium and GPS antennas and an internal
Li-ion battery. The 9602-AB can send either standard or 256-bit AES-encrypted GPS reports at a pre-programmed
interval ranging from once every four seconds to once every seven days. The interval can be changed via SatTerm and or
AT commands via a Data Terminal Equipment (DTE).
 IMPORTANT: The 9602-AB antennas must have a full view of the sky during transmission.
 LED Settings: There are five (5) status LEDs that provide quick visual check to ensure proper operations . These
include Power indicator, Iridium signal strength, GPS availability, SBD transmission status, and Emergency mode
alert. NOTE: The 9602-AB ships with all LEDs set to ACTIVE.
Iridium and GPS Antennas
Embedded Inside the Lid
USB-Mini Connector
9602-AB QUICK START GUIDE
Emergency Button
Status LED (Top)
Emergency LED
Power LED (Top)
Iridium LED
GPS LED
Power On/Off Button
451-92681-004A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9602-AB and is the answer not in the manual?

Questions and answers

Related Manuals for NAL RESEARCH CORPORATION 9602-AB

Summary of Contents for NAL RESEARCH CORPORATION 9602-AB

  • Page 1 9602-AB QUICK START GUIDE 451-92681-004A DEVICE DESCRIPTION: The 9602-AB Tracker is an ultra-low power consumption tracker designed for Short Burt Data (SBD) communication using the Iridium satellite network. It comprises internal Iridium and GPS antennas and an internal Li-ion battery. The 9602-AB can send either standard or 256-bit AES-encrypted GPS reports at a pre-programmed interval ranging from once every four seconds to once every seven days.
  • Page 2 9602-AB QUICK START GUIDE 451-92681-004A EMERGENCY MODE  Activate: Quickly press and release the Emergency button to trigger emergency tracking. The Emergency LED illuminates.  Deactivate: Press/hold the Emergency button longer than three (3) seconds to take the 9602-LP out of emergency tracking.
