NAL RESEARCH CORPORATION 9602-LP Quick Start Manual

DEVICES DESCRIPTION

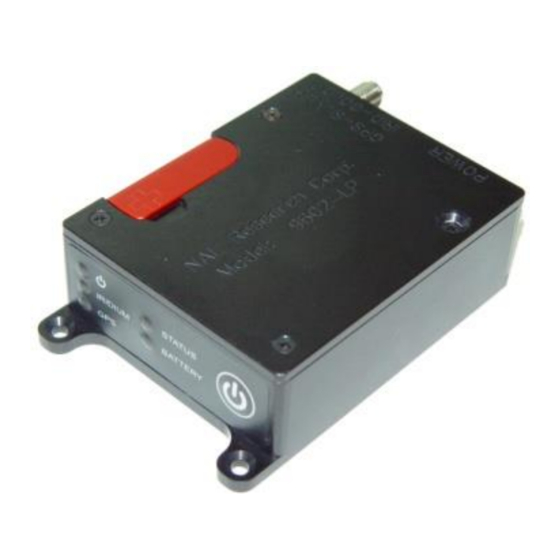

 9602-LP: The 9602-LP is a satellite tracker designed to operate with the Iridium low-Earth orbit satellite network. It
comprises an Iridium 9602 transceiver module; and a 50-channel GPS receiver. The 9602-LP allows only SBD
connectivity to the Iridium satellite network.
 9602-BTI: The 9602-BTI
sealing to be waterproof and weather-resistant in order to endure more hostile environments.
 LED Settings: There are five (5) status LEDs that provide quick visual check to ensure proper operations . These
include Power indicator, Iridium signal strength, GPS availability, SBD transmission status, and Emergency mode
alert. NOTE: The 9602-LP ships with all LEDs set to ACTIVE.
 Connectors: On the backside of the 9602-LP there is a DB-15 multi-interface connector, an Iridium SMA female
50-ohm antenna connector, and a GPS SMA female 50-ohm antenna connector. The Emergency button is located
on the top side of the device.
Emergency Button
9602-LP / 9602-BTI QUICK START GUIDE
is a variation of the original 9602-LP. It functions the same as the 9602-LP, but has improved
Power LED (Top)
Iridium LED
GPS LED
Status LED (Top)
Emergency LED
Power On/Off Button
Multi-Interface Connector
Iridium Antenna Connector
451-92750-002B
2023-03-31
GPS Antenna Connector
1
