DEVICE DESCRIPTION: The SHOUT mcc is a pocket-sized, low-cost, IP67 rated, handheld satellite tracker and messaging
device. The SHOUT mcc comprises a chassis, touchscreen, a Power/Back button, an LED Status Display, a guarded
Emergency button, a Micro-B USB port, and an Iridium antenna. The touchscreen allows for quick access to menus and ease
of text entry via on-screen soft keyboards. In addition, the M-Code PLI data is streamed to the SHOUT mcc device when
connected to an Army DAPs A-PNT device with a M-Code USB supplied cable.

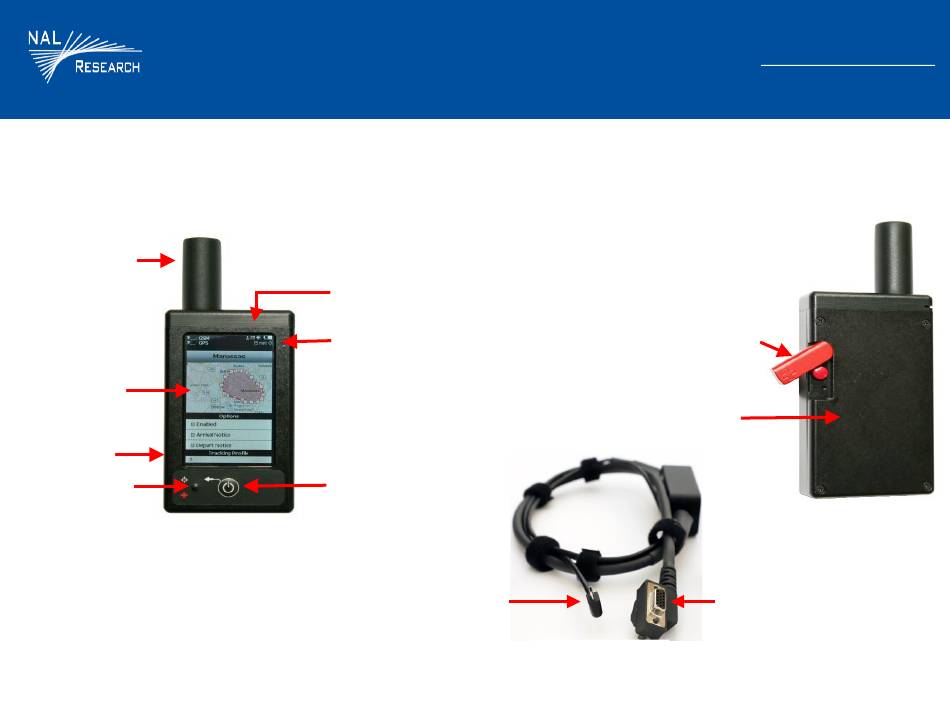

Iridium Antenna
Resistive
Touchscreen
Micro-B
USB
Interface
LED Status
Display
IMPORTANT: The SHOUT mcc must have a clear view of the sky during transmission.
SHOUT mcc QUICK START GUIDE
GPS Antenna
(embedded)
Device Status
Power/Back Button
Micro- B USB Connector
Rotating
Guard
Emergency
Button
DE-15 Connector
M-Code USB Cable
Support Phone#: 571-833-2169
Support@Nalresearch.com
451-22012-002A
2023-03-31
1
Advertisement
Related Manuals for NAL RESEARCH CORPORATION SHOUT mcc
Summary of Contents for NAL RESEARCH CORPORATION SHOUT mcc
- Page 1 Emergency button, a Micro-B USB port, and an Iridium antenna. The touchscreen allows for quick access to menus and ease of text entry via on-screen soft keyboards. In addition, the M-Code PLI data is streamed to the SHOUT mcc device when connected to an Army DAPs A-PNT device with a M-Code USB supplied cable.
- Page 2 SHOUT mcc QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-22012-002A 2023-03-31 DEVICE STATUS BAR: Device status bar displays status symbols along the top three lines of all screens. Some symbols do not appear until an event is initiated, such as sending or receiving a message.
-
Page 3: Power On/Off Device
Cancel 911 Emergency: Navigate to the Tracking Menu and select Cancel 911 NOTE: The Cancellation message is queued in the Outbox to be transmitted, and the Emergency mode ends immediately. Turning the SHOUT mcc off does not cancel the Emergency mode. You MUST select the Cancel 911 option to cancel the emergency. - Page 4 Connect the DE-15 connector on the M-Code USB cable to the DE-15 connector port on the DAPS device, and connect the Micro-B USB connector on the M-Code USB cable to the Micro-B USB connector port on the SHOUT mcc device. “M-Code” displays in the Device Status Bar.
-
Page 5: Charging Battery
Fully charge the SHOUT mcc before use. The SHOUT mcc must be kept in environments between 0°C (32°F) and 45°C (113°F) when charging. The SHOUT mcc can be charged with an AC wall adapter or connect to a standard USB device.
