DEVICE DESCRIPTION OVERVIEW: The SHOUT tsM is a handheld, global, satellite personal tracker designed to operate with
the Iridium low-Earth orbit satellite network. It provides location information determined by the selected receiver. It
comprises an Iridium 9603 transceiver module; a Military GPS receiver; a GNSS receiver; an embedded 3800 mA-Hr battery,
an Iridium antenna, an L1/L2 GNSS/M-Code antenna; and an IP67 screen display w/ protective overlay. The SHOUT tsM
allows only SBD connectivity to the Iridium satellite network.
IMPORTANT: The SHOUT tsM antennas must have a clear view of the sky during transmission.
SHOUT tsM QUICK START GUIDE

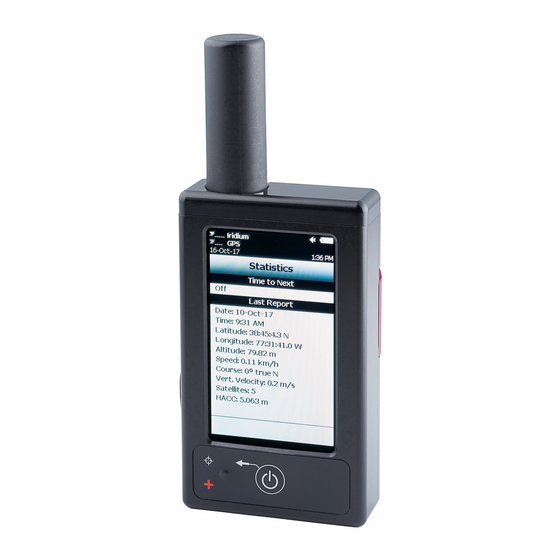

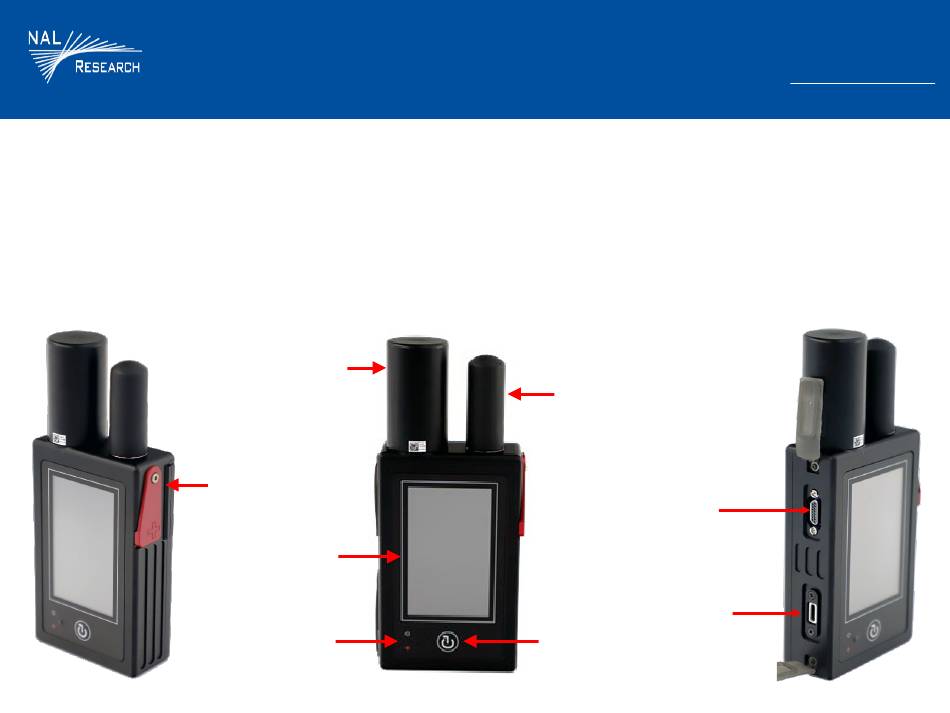

GNSS/M-Code L1/L2
Antenna (SMA)
Emergency Switch Cover
3.0" Resistive
Touch Display
Indicator LEDs
Iridium Antenna (SMA)
Micro DB-15
Connector Port
(Key Fill/1-PPS)
USB-C (Power/Data)
Connector Port
Power Button
Support Phone#: 571-833-2169
Support@Nalresearch.com
451-22012-002A
2023-03-31
