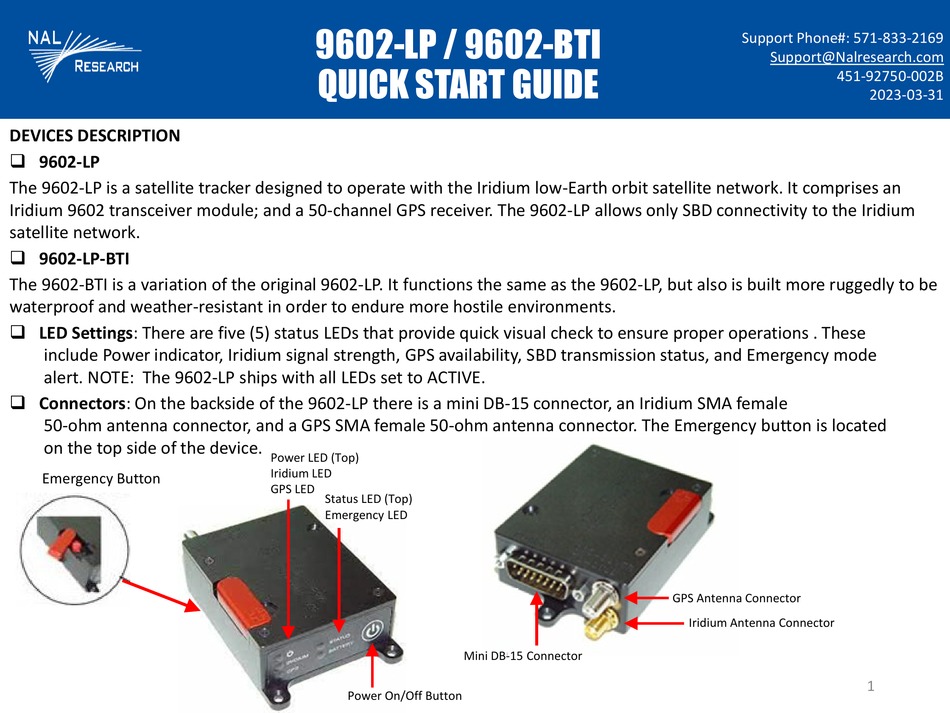

DEVICES DESCRIPTION

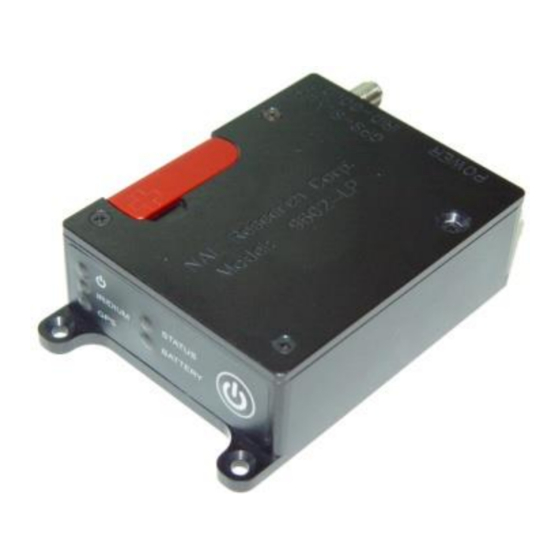

 9602-LP
The 9602-LP is a satellite tracker designed to operate with the Iridium low-Earth orbit satellite network. It comprises an
Iridium 9602 transceiver module; and a 50-channel GPS receiver. The 9602-LP allows only SBD connectivity to the Iridium
satellite network.
 9602-LP-BTI
The 9602-BTI is a variation of the original 9602-LP. It functions the same as the 9602-LP, but also is built more ruggedly to be
waterproof and weather-resistant in order to endure more hostile environments.
 LED Settings: There are five (5) status LEDs that provide quick visual check to ensure proper operations . These
include Power indicator, Iridium signal strength, GPS availability, SBD transmission status, and Emergency mode
alert. NOTE: The 9602-LP ships with all LEDs set to ACTIVE.
 Connectors: On the backside of the 9602-LP there is a mini DB-15 connector, an Iridium SMA female
50-ohm antenna connector, and a GPS SMA female 50-ohm antenna connector. The Emergency button is located
on the top side of the device.
Emergency Button
9602-LP / 9602-BTI
QUICK START GUIDE
Power LED (Top)
Iridium LED
GPS LED
Status LED (Top)
Emergency LED
Power On/Off Button
Mini DB-15 Connector
