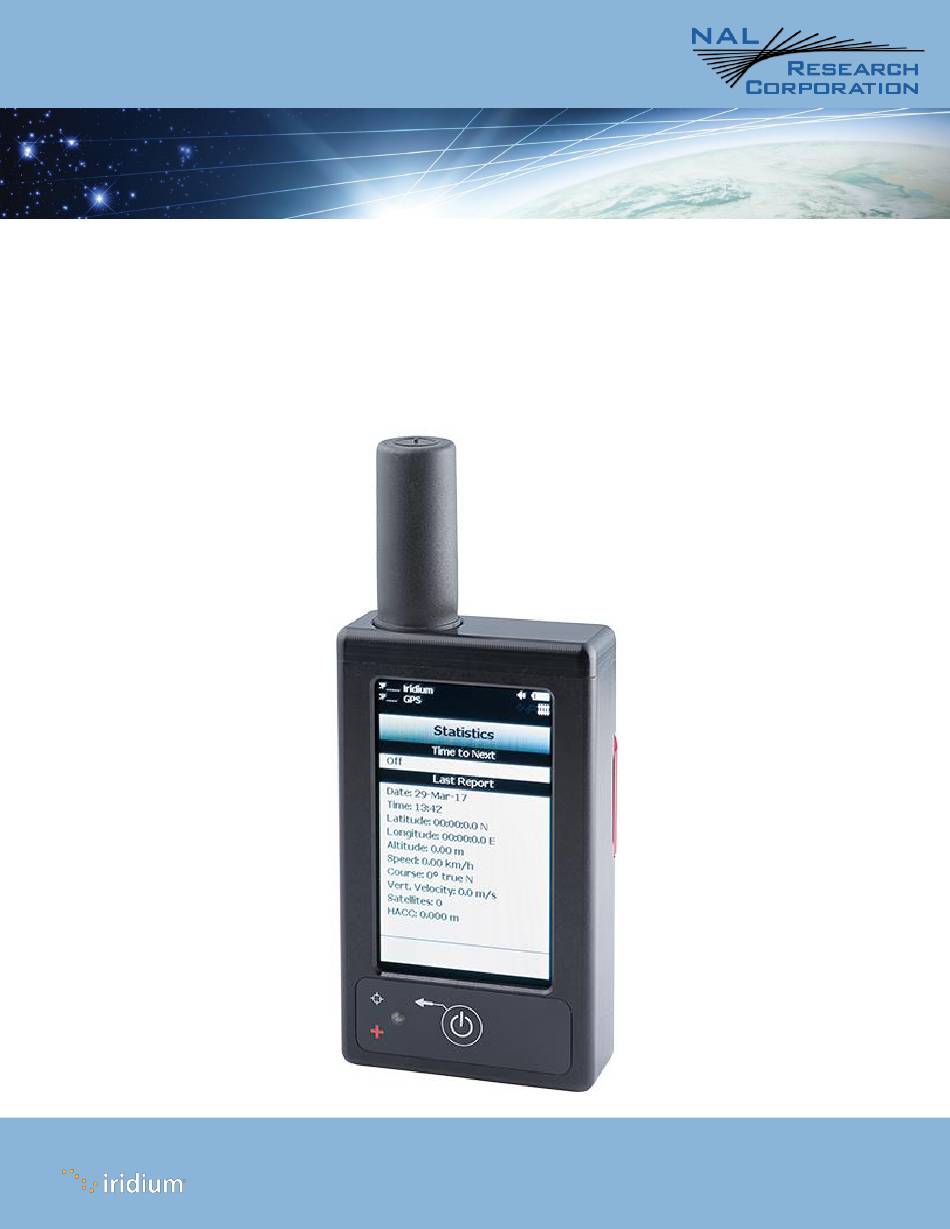

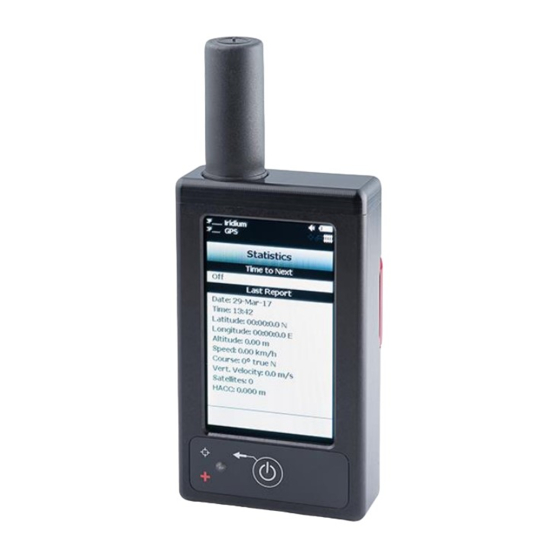

- Page 1 451-93218-002B SHOUT 3G User Guide Version B March 16, 2022 Copyright © 2021 by NAL Research Corporation Powered by 11100 Endeavor Ct., Suite 300 Manassas, Virginia 20109 USA Phone: 703-392-1136 Email: contact@nalresearch.com...
- Page 2 ISCLAIMER AND ONDITION OF This document contains information for the SHOUT 3G personal satellite tracking device and accompanying accessories (“Product”), which is provided “as is.” Reasonable effort has been made to make the information in this document reliable and consistent with specifications, test measurements and other information.
- Page 3 SHOUT 3G User Guide Version B EVISION ISTORY Revision Date Description 1.0.0 5/16/2017 Draft 9/10/2019 Initial released version Updated to new template 03/16/2022 Performed editorial review Document Number: 451-93218-002B 3 of 69...
- Page 4 SHOUT 3G User Guide Version B EFERENCE OCUMENTS The latest revisions of the NAL documents are available from the NAL Research website at https://www.nalresearch.com/support/documentation-downloads/. Reference Title Revision/Date Version 1.7 PECOS Message Definition Specification, 200907-001 July 29, 2009 Version 8.8.6, SatTerm for SHOUT 3G...
-
Page 5: Table Of Contents
SHOUT 3G User Guide Version B ABLE OF ONTENTS Introduction ....................... 12 Using the SHOUT 3G ....................15 Device Description ......................15 Accessories .......................... 16 Charging the Battery ......................17 Cellular SIM Card ......................... 18 Touchscreen ........................18 Basic Navigation ........................19 Using the Keyboards ...................... - Page 6 SHOUT 3G User Guide Version B 5.10 Memory ..........................40 Tracking Menu ......................41 Tracking ..........................41 Rpt Rate ..........................41 Format ..........................42 Link ............................43 SMS Rt ..........................44 Geofences ........................... 44 Brevity ..........................46 Man Down ........................... 46 Call Out ..........................
- Page 7 SHOUT 3G User Guide Version B Reset ........................... 57 8.10 Search ..........................57 8.11 Security ..........................57 8.12 Time/Date ........................... 57 8.13 Unit Info ..........................58 8.14 User Info ..........................58 Additional Features ....................59 Emergency (911) Button ..................... 59 Status LED ...........................
- Page 8 SHOUT 3G User Guide Version B ABLE OF IGURES Figure 1: SHOUT 3G Exterior Components ................... 16 Figure 2: SHOUT 3G Accessories ....................16 Figure 3: Resistive Touchscreen ....................19 Figure 4: Keyboard Screen ......................20 Figure 5: Keyboard Hand-position ....................21 Figure 6: Hold and Slide on Keyboard ...................
- Page 9 SHOUT 3G User Guide Version B ABLE OF ABLES Table 1: Status Symbols ........................ 27 Table 2: Standard Compliance ...................... 68 Document Number: 451-93218-002B 9 of 69...
- Page 10 SHOUT 3G User Guide Version B LOSSARY 3G .......Third generation ABS ......Acrylonitrile Butadiene Styrene AES ......Advanced Encryption Standard BIS ......Bureau of Industry and Security CE .......Conformité Européenne CEP ......Circular Error Probable DCS ......Distributed Control Systems DISA ......Defense Information Systems Agency DoD ......Department of Defense...
- Page 11 SHOUT 3G User Guide Version B LTE ......Long-Term Evolution NDA ......Non-Disclosure Agreement NOC ......Network Operation Center OFAC ......Office of Foreign Asset Controls PCS ......Process Control Systems PDOP ......Position (3D) Dilution of Precision PIN ......Personal Identification Number PMS ......PECOS Message Structure POP ......Post Office Protocol...
-
Page 12: Introduction
When using the Iridium link, the SHOUT 3G protocol is 100% backward compatible with the SHOUT, SHOUT nano, SHOUT ts, and SHOUT gsm. In this document, the terms SHOUT 3G and 3G are used interchangeably. - Page 13 Data Logger — The 3G has a circular buffer and can be programmed to store up to 4,000 positions for later retrieval. Important: NAL Research can enable the SHOUT 3G for use on the Department of Defense (DoD) Enhanced Mobile Satellite Services (EMSS) Iridium Gateway (only for the Iridium network...
- Page 14 However, accessing the EMSS Iridium Gateway is not authorized until the SHOUT 3G is provisioned (signed up for airtime). Unauthorized attempts to access the EMSS Gateway will result in immediate disabling of the offending device, which must then be returned to NAL Research for repair.
-
Page 15: Using The Shout 3G
The Universal Serial Bus (USB) Micro-B port is for charging, firmware updates, and setting parameters using the NAL Research SatTerm application. Important: Unlike the cellular link that can be used indoors, the SHOUT 3G must have full view of the sky when the Iridium link is used. -
Page 16: Accessories
AT&T and T-Mobile. Push micro-SIM to eject Figure 1: SHOUT 3G Exterior Components CCESSORIES The SHOUT 3G includes the following accessories. AC Wall Adapter USB-A to USB Micro-B Cable Figure 2: SHOUT 3G Accessories Document Number: 451-93218-002B... -
Page 17: Charging The Battery
SHOUT 3G User Guide Version B HARGING THE ATTERY The SHOUT 3G is shipped with its internal Li-ion battery partially charged. Fully charge the 3G before use. There are two ways to charge the 3G: Use the supplied AC wall adapter. -
Page 18: Cellular Sim Card
The SHOUT 3G has a cellular micro- Subscriber Identification Module (SIM) card slot on the side of the chassis next to the USB Micro-B port. For cellular services, the SHOUT 3G accepts any cellular micro-SIM with services on a network that supports 2G Global System for Mobile Communications (GSM)/GPRS and 3G Universal Mobile Telecommunications System (UMTS)/ High-Speed Downlink Packet Access (HSPA) services. -
Page 19: Basic Navigation
Figure 3: Resistive Touchscreen ASIC AVIGATION Turn on the SHOUT 3G by holding down the Power/Back button for approximately two seconds. Note: A delay in displaying time and date is normal because the unit must first check its internal clock against the GPS receiver. -
Page 20: Using The Keyboards
SHOUT 3G User Guide Version B SING THE EYBOARDS Some menu options require the use of on-screen keyboards to enter information. Three different keyboards are available in landscape orientation—lower case, upper case, and number/special characters. Switch between keyboards with special designated keys next to the Done key. -
Page 21: Figure 5: Keyboard Hand-Position
SHOUT 3G User Guide Version B Enter Text Remaining:309 Meet me at the next stop. n m @ Done Clear Figure 5: Keyboard Hand-position Edit entered text by tapping anywhere inside the text box. It is much easier to use a fingernail or a stylus to accurately position the cursor over the character to be edited. -
Page 22: Using The Search Box
SHOUT 3G User Guide Version B SING THE EARCH Some menu options have a Search box to search for specific keywords or phrases. The search parameters are defined using Settings > Search menu. Touching the Search box opens a keyboard to enter the search item. -
Page 23: Network Operation Center (Noc)
PERATION ENTER The SHOUT 3G comprises a 9603 module capable of Short-Burst Data (SBD) connectivity to the Iridium satellite network and a 2G/3G cellular module capable of Short Message Service (SMS) and Internet Protocol (IP) connections. As a messaging and tracking device, its function is to send GPS reports and text messages to a Network Operation Center (NOC). -
Page 24: Server For Trackers Software
Iridium transceiver, or to any wireless network. A NOC is required to implement the logic necessary to receive and analyze messages from the SHOUT 3G and determine the appropriate response, as well as to formulate and transmit messages to the SHOUT 3G. -
Page 25: Nal Vue Management Tool
SHOUT 3G User Guide Version B 2.13 NAL VUE M ANAGEMENT NAL Vue is a web-based locating, tracking, and communication management system that provides your team with situational awareness and control to make timely and effective mission decisions. NAL Vue is an integrated system bringing satellite, cellular, and other data together into a single and simple-to-manage display and control platform. -
Page 26: Home Screen
SHOUT 3G User Guide Version B CREEN 1. Immediately after turning on the device, select the Press To Unlock bar located at the bottom of the screen. Note: A delay in displaying time and date is normal because the unit has to check its internal clock against the GPS receiver. -
Page 27: Status Symbols
During transmission and with the Iridium link, the antenna must have a clear view of the sky. The SHOUT 3G cannot send messages or reports via the Iridium network from inside a building. -
Page 28: Date/Time
GPS receiver. CONS The SHOUT 3G displays four main icons on its home screen (as shown in Figure 10 below), each representing a menu option—Texting, Tracking, Utilities, and Settings. Detailed descriptions of each of these menu options and their submenus are included in the next section. -
Page 29: Favorite Icons
SHOUT 3G User Guide Version B AVORITE CONS The bottom of home screen has a favorites bar to provide quick and easy access to the most frequently used options. You can configure any of the menu icons to appear on the favorites bar using Settings >... -
Page 30: Quick Start
SIM card, including prepaid SIM cards, on a network that supports 2G GSM/GPRS and 3G UMTS/HSPA services is required for the SHOUT 3G. A 4G LTE-only network will not support the SHOUT 3G. NAL has validated SHOUT 3G operation on both AT&T and T-Mobile networks. -
Page 31: Texting Menu
SHOUT 3G User Guide Version B EXTING Use the Texting menu to compose, save, view, and send canned or free-text messages, check the mailbox for incoming messages, and set up an automatic mailbox check frequency. Figure 11: Texting Menu NBOX The Inbox folder contains all incoming read and unread messages with the newest at the top of the list. -
Page 32: Outbox
Failed messages can be deleted or resent (enqueue). However, if you resend a failed message and if the failed message is successfully retransmitted, the SHOUT 3G automatically attempts to resend as many remaining failed messages in the Outbox as possible in the following order of priority. -
Page 33: Sent
SHOUT 3G User Guide Version B If there are multiple items in the same category, the oldest will be sent first. The SHOUT 3G automatically resends failed messages in the order stated above after a successful transmission (by accessing the network through methods such as Tracking, Test Report, Waypoint, etc.). To avoid draining the battery, maintain the Outbox frequently and delete unwanted failed reports. -
Page 34: Figure 12: Choose Contacts Or Enter Emails
SHOUT 3G User Guide Version B Figure 12: Choose Contacts or Enter Emails o You can slide a finger back and forth between these two options. o Remember to apply moderate pressure on the touchscreen while sliding the finger. DO NOT lift the finger until the right choice is selected. -
Page 35: Figure 13: Choose Contacts
Multiple email addresses can be entered separated by a comma. Note: All email addresses, including the commas, must be a total of 255 characters or less. The SHOUT 3G keeps track of the limit and prevents entering email addresses longer than allowed. Email addresses and free-text messages share the same memory space with a maximum allowable length of 309 characters. -
Page 36: Figure 14: Choose Can'd Msg And Enter Text Options
SHOUT 3G User Guide Version B Figure 14: Choose Can'd Msg and Enter Text Options 6. If Choose Can’d Msg is selected and if canned messages were entered with SatTerm, a list of canned messages appears in the order they were entered with SatTerm. -
Page 37: Contacts
Note: As with the contact list, SatTerm is used to create and save canned messages into the SHOUT 3G’s memory. During setup, SatTerm requires connectivity between the 3G and a NOC server to synchronize the lookup table of short codes. Sending canned messages saves bandwidth and airtime cost because only short codes are being transmitted instead of the entire message body. -
Page 38: Chk Mbox
Figure 16: Formatted Contact The Check Mailbox [Chk Mbox] option is available ONLY when the Iridium link is enabled. There are three ways the SHOUT 3G can initiate a mailbox check for any pending messages at the Iridium gateway: Manually force the 3G to check the mailbox at any time using Chk Mbox menu. -
Page 39: Mbox Rate
SHOUT 3G User Guide Version B When tracking mode is enabled, the 3G automatically checks the mailbox each time it wakes up and successfully sends a position report. Using the Mbox Rate menu (see below for detailed description), the 3G can be set to automatically wake up and check the mailbox at a preset frequency. -
Page 40: Inc Gps
Settings > LED menu. The Include GPS [Inc GPS] option forces the SHOUT 3G to attach GPS location to Check-In and canned and free-text messages. Under the default setting, these messages do not have GPS information included. -
Page 41: Tracking Menu
RACKING RACKING The Tracking menu for the SHOUT 3G is shown in Figure 19 below. Some options are very complex and require SatTerm to set up, including Geofences, cellular IP routing, and Call Out. For these options, refer to the “SatTerm for SHOUT 3G” manual [2]. -
Page 42: Format
For more information, see Appendix C: Power Consumption. Important: The SHOUT 3G automatically resends all failed messages in the Outbox after a successful position report transmission. To avoid draining the battery unnecessarily, carry out frequent maintenance on the Outbox and delete unwanted failed messages. -
Page 43: Link
The SHOUT 3G always uses the primary network to transmit reports and messages. The secondary network is only used if the primary network is not available. Switching between primary and secondary networks is managed by the SHOUT 3G automatically. -
Page 44: Sms Rt
50. Each fence has a unique tracking profile that triggers the SHOUT 3G to change its tracking behavior while inside a specific fence; e.g., it allows the SHOUT 3G to use Iridium, cellular, both Iridium and cellular, or to turn off all transmitting radio links (Iridium and cellular) for regions that require radio silence. -
Page 45: Figure 21: Geofences Enabled/Disabled
SHOUT 3G User Guide Version B Labels are dimmed on fences that are disabled Enable/Disable a fence Enabled fences Figure 21: Geofences Enabled/Disabled The Geofences menu provides a few options including: (1) browsing a list of fences loaded into the device through SatTerm, (2) viewing the map of each fence and its type of notification (arrival or departure), and (3) enabling/disabling a fence. -
Page 46: Brevity
The Man Down option allows you to set the options used by the Man Down Alert feature. The Man Down Alert detects when the SHOUT 3G is motionless for a configurable amount of time and triggers up to 3 different alerts if you do not respond affirmatively to an “Are You OK?”... -
Page 47: Call Out
Sends a text message with a Man Down short code and GPS location information. The Call Out option allows the SHOUT 3G to send a scheduled daily tracking report at a defined Greenwich Mean Time (GMT) time using a specific link. Scheduled times are entered via SatTerm software, and are listed under the Call Out menu. -
Page 48: Q Rpt
SHOUT 3G User Guide Version B The Call Out option is useful when you need the device to transmit at a specific time and/or want to generate a daily heart beat message for each link. Refer to the “SatTerm for SHOUT 3G” manual [2]. - Page 49 SHOUT 3G User Guide Version B mode ends immediately. The emergency LED is turned off and the top bar turns from red back to black. Turning the 3G off does not cancel the emergency mode. You MUST select the Cancel 911.
-
Page 50: Utilities Menu
Figure 24: Utilities Menu The Check GPS [Chk GPS] option forces the SHOUT 3G to turn on its GPS receiver and to continuously update and display GPS data in real-time. The GPS receiver remains on until you leave this screen by pressing the back button. -
Page 51: Figure 25: Reset Ephemeris Key
SHOUT 3G User Guide Version B Figure 25: Reset Ephemeris Key Monitor the accuracy of the position by observing the Horizontal Accuracy (HACC). HACC is measured in meters. HACC is defined as the radius of a circle centered on the true value that contains the GPS measurement. -
Page 52: Chk Iridium
The Check GSM [Chk GSM] option forces the SHOUT 3G to turn on its cellular transceiver and continuously update and display signal strength in real-time; ensure the device has an active cellular SIM card. -
Page 53: Chk-In
A waypoint is a GPS location that you want to identify and mark with a specific name tag for future reference. 1. Select New. The SHOUT 3G immediately turns the GPS receiver on to acquire a fix. 2. Select one of the following options: a. -
Page 54: Settings Menu
Use Preview to test the audio volume and sound before selecting. ACKLIGHT Use the Backlight option to set the period of inactivity, after which the SHOUT 3G turns the Liquid-crystal display (LCD) backlight off. Set the backlight to Always On for nighttime use, but note that it will increase power consumption and reduce battery life. -
Page 55: Contrast
SHOUT 3G User Guide Version B or reset to factory settings, with the 3G powered off, hold the Power/Back button for ~7 seconds or until the reset calibration screen opens. DO NOT connect the 3G’s USB port to any device. -
Page 56: Language
SHOUT 3G User Guide Version B Pedestrian: Applications with low acceleration and low speed, as a pedestrian would move; assuming low accelerations; maximum altitude of 9 km; maximum velocity of 30 m/sec; maximum vertical velocity of 20 m/sec; sanity check type: altitude and velocity;... -
Page 57: Led
SHOUT 3G User Guide Version B The SHOUT 3G has a status LED at the bottom-left corner to indicate whether the device is in emergency mode, tracking mode, geofence tracking, mailbox check, or call out. Except for the emergency mode, the LED flashes once every five seconds when other modes are enabled and the device sleeps. -
Page 58: Unit Info
SHOUT 3G User Guide Version B 8.13 U The Unit Info option displays the model number, Iridium module’s International Mobile Equipment Identification (IMEI) number, Iridium FCC ID, Iridium IC ID, GSM FCC ID, GSM IC ID, 3G’s firmware version, and 3G’s bootloader version. -
Page 59: Additional Features
The Emergency 911 button is located underneath a red, rotating guard at the back of the SHOUT 3G. Use it at any time regardless of the tracking status (enabled or disabled) or power status (on or off). When pressed, the emergency LED immediately turns solid green to indicate that the device is in emergency mode. -
Page 60: Status Led
SHOUT 3G User Guide Version B TATUS There is one status LED at the bottom-left of the SHOUT 3G. The LED turns solid green when the 3G is in emergency mode, which can be turned off to save power using the Settings > LED menu, as shown in section 8.8. -
Page 61: Appendix A: Pms Features
A.1 T RACKING The SHOUT 3G is capable of sending position reports in PECOS Message Structure (PMS). PMS complies with the Blue Force Tracking Data Format Specification as defined in the document PECOS 200907-001 Version 1.7 [1]. The 3G is shipped without PMS features activated and can only be enabled by NAL Research at the request of an authorized user. -
Page 62: Contacts
SHOUT 3G User Guide Version B A.4 C ONTACTS With PMS enabled, use the Contacts menu (refer to section 5.6) to enter and save a contact(s) via the keyboard. The contact(s) can only have two fields—Name and IMEI number. Document Number: 451-93218-002B... -
Page 63: Appendix B: Upgrading The Firmware
PPENDIX PGRADING THE IRMWARE The SHOUT 3G firmware can be upgraded using a PC connected to the USB port of the device. The device drivers support Windows XP, Windows 7, and Windows 10. To upgrade the firmware: 1. Run the NAL USB Firmware Loader program provided as part of the firmware download from the NAL Research website (https://www.nalresearch.com/support/documentation-downloads/). -
Page 64: Appendix C: Power Consumption
Important: Data presented here are only estimates and are highly dependent on the operating environment and Iridium antenna installed. Data are based on multiple measurements made with SHOUT 3G devices configured with the supplied Iridium antenna, placed on the roof of NAL Research’s facility with little to no blockage/shading. -
Page 65: Appendix D: Design Specifications
SHOUT 3G User Guide Version B D: D PPENDIX ESIGN PECIFICATIONS ECHANICAL PECIFICATIONS Dimensions: ...............4.97” x 2.51” x 0.88” (126 mm x 64 mm x 22 mm) (not including antenna) Weight: ..............~8.6 oz (244 g) Enclosure: ..............Hard anodized aluminum housing/EMI shielding, ABS plastic radome Connectors: ...............USB Micro-B, Micro SIM reader... -
Page 66: Cellular Transceiver
SHOUT 3G User Guide Version B D.4 C ELLULAR RANSCEIVER Receiver Type: ............u-blox LISA-U230, 3.75G RF Impedance: ............50 Supported Bands: ............UMTS/HSPA: I, II, IV, V, VI, VIII (2100, 1900, 1700, 850, 800, 900 MHz) GSM/GPRS/EDGE: quad band (850/900/1800/1900 MHz) GSM/GPRS power Class: ..........Class 4 (33 dBm) for GSM/EGSM (850/900... -
Page 67: Environmental Specifications
SHOUT 3G User Guide Version B Sensitivity: ..............–161 dBm (tracking) –160 dBm (hot-starts) –148 dBm (cold-starts) D.6 E NVIRONMENTAL PECIFICATIONS Operating Temperature: ..........–4°F to +140°F (–20°C to +60°C) Charge Temperature: ..........32°F to +113°F (0°C to +45°C) Operating Humidity: ..........≤ 75% RH Storage Temperature: ..........–4°F to +140°F (–20°C to +60°C) -
Page 68: Appendix E: Standards Compliance
TANDARDS OMPLIANCE The SHOUT 3G has an internal Iridium 9603 transceiver and u-blox LISA-U230 module. The 9603 is tested to the regulatory and technical certifications shown below. It is assigned to the FCC Identifier Q639603. The LISA-U230 is assigned to the FCC Identifier XPYLISAU230. -
Page 69: Appendix F: Export Compliance
XPORT OMPLIANCE The SHOUT 3G is controlled by the export laws and regulations of the United States of America (USA). It is the policy of NAL Research to fully comply with all U.S. export and economic sanction laws and regulations. The export of NAL Research products, services, hardware, software, and technology must be made only in accordance with the laws, regulations, and licensing requirements of the U.S.
