Hardware description

Dimensions

USB storage media
(USB 2.0)

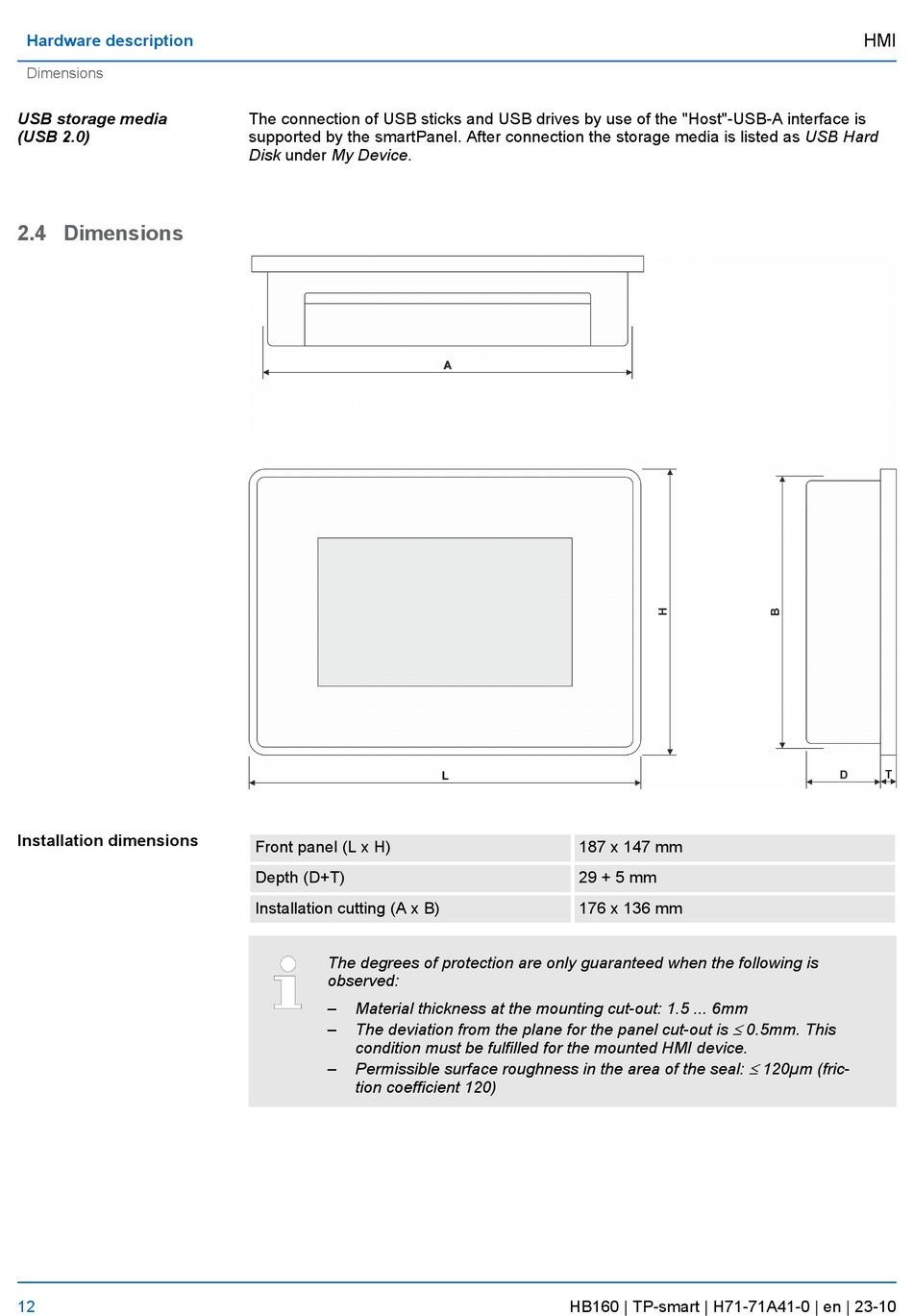

2.4 Dimensions
Installation dimensions
12
The connection of USB sticks and USB drives by use of the "Host"-USB-A interface is
supported by the smartPanel. After connection the storage media is listed as USB Hard
Disk under My Device.
Front panel (L x H)
Depth (D+T)
Installation cutting (A x B)
The degrees of protection are only guaranteed when the following is
observed:
– Material thickness at the mounting cut-out: 1.5 ... 6mm
– The deviation from the plane for the panel cut-out is
condition must be fulfilled for the mounted HMI device.
– Permissible surface roughness in the area of the seal:
tion coefficient 120)
187 x 147 mm
29 + 5 mm
176 x 136 mm
£ 0.5mm. This
HB160 | TP-smart | H71-71A41-0 | en | 23-10
HMI
£ 120µm (fric-
