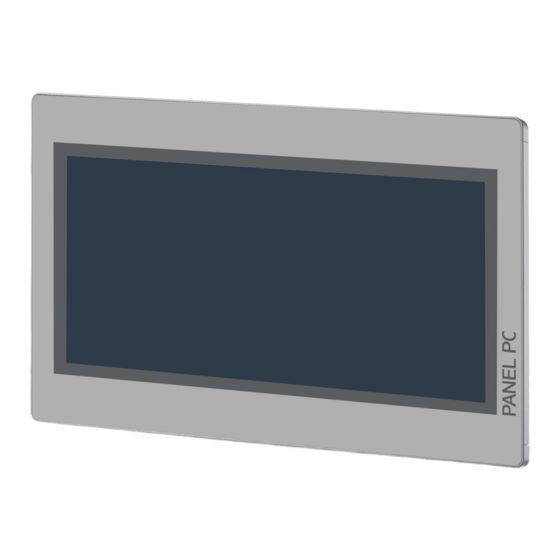

VIPA HMI PPC021 CE
PPC | 67S-PNJ0 | Manual
HB160 | PPC | 67S-PNJ0 | GB | 15-30

Advertisement

Table of Contents
loading

Related Manuals for YASKAWA VIPA HMI PPC021 CE

Summary of Contents for YASKAWA VIPA HMI PPC021 CE

  • Page 1 VIPA HMI PPC021 CE PPC | 67S-PNJ0 | Manual HB160 | PPC | 67S-PNJ0 | GB | 15-30...
  • Page 2 VIPA GmbH Ohmstr. 4 91074 Herzogenaurach Telephone: +49 9132 744-0 Fax: +49 9132 744-1864 Email: info@vipa.com Internet: www.vipa.com 67S-PNJ0_000_PPC021CE,3,GB - © 2015...

  • Page 3: Table Of Contents

    VIPA HMI PPC021 CE Table of contents Table of contents General..................4 1.1 Copyright © VIPA GmbH ........... 4 1.2 About this manual.............. 5 1.3 Safety information.............. 6 Hardware description.............. 8 2.1 Safety information for users..........8 2.2 Properties................9 2.3 Structure................

  • Page 4: General

    General VIPA HMI PPC021 CE Copyright © VIPA GmbH General 1.1 Copyright © VIPA GmbH All Rights Reserved This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agree- ments.

  • Page 5: About This Manual

    VIPA HMI PPC021 CE General About this manual Trademarks VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V, System 500S and Commander Compact are registered trademarks of VIPA Gesellschaft für Visualisierung und Prozessautomatisierung mbH. SPEED7 is a registered trademark of profichip GmbH.

  • Page 6: Safety Information

    General VIPA HMI PPC021 CE Safety information Guide to the document The following guides are available in the manual: An overall table of contents at the beginning of the manual References with page numbers Availability The manual is available in:...
  • Page 7 VIPA HMI PPC021 CE General Safety information CAUTION! The following conditions must be met before using or commissioning the components described in this manual: – Hardware modifications to the process control system should only be carried out when the system has been disconnected from power! –...

  • Page 8: Hardware Description

    Hardware description VIPA HMI PPC021 CE Safety information for users Hardware description 2.1 Safety information for users Handling of electro- VIPA modules make use of highly integrated components in MOS- static sensitive modules Technology. These components are extremely sensitive to over-vol- tages that can occur during electrostatic discharges.

  • Page 9: Properties

    VIPA HMI PPC021 CE Hardware description Properties 2.2 Properties General The VIPA Panel PC is a combination of industrial PC with state of the art performance features and a touch panel with ideal display capabil- ities. The Panel PC is a compact and modular embedded PC based Ò...

  • Page 10: Structure

    Hardware description VIPA HMI PPC021 CE Structure > Overview 2.3 Structure 2.3.1 Overview Front view Slot for voltage supply (DC 12-30V) VGA interface Reset button RS232/RS422/RS485 interface COM 2 RS232/RS422/RS485 interface COM 1 4x"Host"-USB-A interface RJ45 jack for Ethernet communication LAN 2 RJ45 jack for Ethernet communication LAN 1 3.5mm Audio Line out...
  • Page 11 VIPA HMI PPC021 CE Hardware description Structure > Overview Bottom view 1 Slot for voltage supply (DC 12-30V) 2 VGA interface 3 Reset button 4 RS232/RS422/RS485 interface COM 2 5 RS232/RS422/RS485 interface COM 1 6 4x"Host"-USB-A interface 7 RJ45 jack for Ethernet communication LAN 2 8 RJ45 jack for Ethernet communication LAN 1 9 3.5mm Audio Line out...

  • Page 12: Interfaces

    Hardware description VIPA HMI PPC021 CE Structure > Interfaces 2.3.2 Interfaces RS232/RS422/RS485 The 9-pin male SubD connector may be switched in the BIOS. Here interface (switchable) also the termination resistor of the RS422 and RS485 interface may be activated or deactivated.
  • Page 13 VIPA HMI PPC021 CE Hardware description Structure > Interfaces HB160 | PPC | 67S-PNJ0 | GB | 15-30...

  • Page 14: Memory Management

    Hardware description VIPA HMI PPC021 CE Structure > Memory management VGA interface VGA SubD HD15 jack to connect a second display. Line out 3.5 mm stereo jack to connect an active speaker system or an ear- phone. "Host"-USB-A Using the "Host"-USB-A interface USB mouse, keyboard, stick or USB hard discs can be connected.

  • Page 15: Dimensions

    VIPA HMI PPC021 CE Hardware description Dimensions Slot for CFast At the back of the Panel PC there is a card slot for a memory card. At this slot you can plug storage modules of the type CFast 2.0 - 600 MB/s (6GBit/s) - SATA protocol - not hot-swap compatible.
  • Page 16 Hardware description VIPA HMI PPC021 CE Dimensions 21.5" - 67S-PNJ0-... Front panel thickness 3 ... 12mm Installation cutting (W x H) 547 x 367mm Front panel (W x H x T) 562.4 x 382.4 x 6.7mm Rear panel (W x H x D) 542 x 362 x 54.2mm...

  • Page 17: General Data

    VIPA HMI PPC021 CE Hardware description General data 2.5 General data Conformity and approval Conformity 2006/95/EG Low-voltage directive 2004/108/EG EMC directive Approval UL 508 Approval for USA and Canada others RoHS 2011/65/EU Product is lead-free; Restriction of the use of...

  • Page 18: Technical Data

    Hardware description VIPA HMI PPC021 CE Technical data Mounting conditions Mounting place In the control cabinet Mounting position Horizontal and vertical Standard Comment Emitted interfer- EN 61000-6-4 Class A (Industrial area) ence Noise immunity EN 61000-6-2 Industrial area zone B...
  • Page 19 VIPA HMI PPC021 CE Hardware description Technical data Order no. 67S-PNJ0-EB User software Movicon 11 CE Standard Work memory 2 GB User memory 2 GB Available memory (user data) 1200 MB SD/MMC Slot CF Card Slot Typ II CFast Slot ü...
  • Page 20 Hardware description VIPA HMI PPC021 CE Technical data Order no. 67S-PNJ0-EB Technical data power supply Power supply (rated value) DC 24 V Power supply (permitted range) DC 20.4...28.8 V Reverse polarity protection ü Current consumption (no-load operation) 1.2 A Current consumption (rated value) 1.3 A...

  • Page 21: Deployment Panel Pc

    VIPA HMI PPC021 CE Deployment Panel PC Installation Deployment Panel PC 3.1 Installation Overview The Panel PC is suitable for the installation in operating tables and control cabinet fronts. The installation happens via the back. The Panel PC is provided with a fixing technique with not losable screws that allows an easy connection with a crosstip screwdriver.

  • Page 22: Installation Of The Cfast Card

    Deployment Panel PC VIPA HMI PPC021 CE Installation of the CFast card Connect power supply For the cabling of the power supply DC 12-30V a green plug is used. The connector is a plug with screw contacts. The plug has the fol-...

  • Page 23: Commissioning

    VIPA HMI PPC021 CE Deployment Panel PC Commissioning > VIPA Startup-Manager 3.3 Commissioning CAUTION! – Before commissioning the device must be brought to room temperature. – At condensation the device must be absolutely dry before connected to power. – To avoid overheat during operation the device must not be laid open to direct sun light.
  • Page 24 Deployment Panel PC VIPA HMI PPC021 CE Commissioning > VIPA Startup-Manager Backup Exit Back Settings In [Settings] under Change Settings you can set a password for the Startup-Manager. The password will be requested when interrupting the start countdown. By default, no password is defined. In [Settings] the system settings can be set exactly like via Windows ‘Start...
  • Page 25 VIPA HMI PPC021 CE Deployment Panel PC Commissioning > VIPA Startup-Manager At "Delay Time" you can adjust a delay time > 0 by using the buttons [+] and [-]. 5 seconds are default. Via "Program start" with [+] you can add programmes, which have to start automatically.

  • Page 26: Connection To A Plc System

    Deployment Panel PC VIPA HMI PPC021 CE Operating system Windows Embedded Compact 7 > General 3.4 Connection to a PLC system Overview For the inclusion into your PLC system several HMI/SCADA project- engineering platforms are at your disposal that has to be installed on an external PC.
  • Page 27 VIPA HMI PPC021 CE Deployment Panel PC Operating system Windows Embedded Compact 7 > General Differences to the Please regard that for the deployment of WEC7 a thorough knowl- Ò Ò standard Windows edge of operating Windows are assumed. Here are only shown the operation Ò...

  • Page 28: Structure

    Deployment Panel PC VIPA HMI PPC021 CE Operating system Windows Embedded Compact 7 > Structure 3.5.2 Structure Icon Via icons on the desktop you gain direct access to the application related to the icon. Desktop Ò The desktop is the screen that is shown after login to Windows It contains e.g.
  • Page 29 VIPA HMI PPC021 CE Deployment Panel PC Operating system Windows Embedded Compact 7 > Structure Show desktop All windows are minimized and the desktop is shown. Software keyboard This button displays a keyboard at the screen. "Hide Input Panel" hides the keyboard again.

  • Page 30: Integrated Server

    Deployment Panel PC VIPA HMI PPC021 CE Integrated server > General System setting (Control As many components of the Control Panel conform with the System Panel) Ò Control of Windows , most of the description is not necessary. The description of the control panel components relevant for operating the...

  • Page 31: Ftp Server

    VIPA HMI PPC021 CE Deployment Panel PC Integrated server > ftp server Host Computer within a network where at least one server is running. Data transfer Server ® Client Download Data transfer Client ® Server Upload 3.6.2 ftp server By means of a ftp server data between client and server can be exchanged.

  • Page 32: Telnet Server

    Deployment Panel PC VIPA HMI PPC021 CE Integrated server > Telnet server As soon as your Panel PC is connected via Ethernet, you can monitor the IP address data via in the taskbar. After you’ve confirmed the pre-settings, start your ftp client (e.g.

  • Page 33: Vnc Server

    VIPA HMI PPC021 CE Deployment Panel PC Integrated server > VNC server Enter the following: Login: wince Password: vipatp (entry is hidden) ð After entering valid user data a command line for entries appears: By entering Exit res. closing the window you can terminate the Telnet connection at any time.
  • Page 34 Deployment Panel PC VIPA HMI PPC021 CE Integrated server > VNC server Because you can deactivate all safety attitudes with the VNC server, you should use these exclusively for start-up! For this reason the VNC server is on delivery deactivated.

  • Page 35: Access To The Network Resources

    VIPA HMI PPC021 CE Deployment Panel PC Access to the network resources 3.7 Access to the network resources Overview The Panel PC allows you to access shared resources in a Microsoft network like drives and printer. Here you may assign existing public directories or printer in the network to local directories or printer in the Panel PC.

  • Page 36: Bios Setup

    BIOS setup VIPA HMI PPC021 CE Overview BIOS setup 4.1 Overview In this chapter you will find information, required for calling the BIOS setup and the possible settings. The BIOS (Basic Input and Output System) setup program is a menu driven utility that enables you to make changes to the system configu- ration and tailor your system to suit your individual work needs.

  • Page 37: Main

    VIPA HMI PPC021 CE BIOS setup Main Selection boot medium Powering on the computer and immediately pressing [F7] allows you, as long as the loading screen is shown, to change to the boot medium selection. Legends Function ßà Moves the highlight left or right to select a menu áâ...

  • Page 38: Advanced

    BIOS setup VIPA HMI PPC021 CE Advanced Intel RC Version Display the Intel Reference Code version. System Date The date format is day month/date/year an. Day displays a day, from Monday to Sunday. Month displays the month, from January to December.
  • Page 39 VIPA HMI PPC021 CE BIOS setup Advanced Launch LAN1/2 PXE Enables or disables the boot option for legacy network devices con- OpROM nected to LAN1 or LAN2. Disabled - Starts no PXE OpROM Enabled - Starts the PXE OpROM, to be able to boot about PXE Submenu "CPU Config-...
  • Page 40 BIOS setup VIPA HMI PPC021 CE Advanced Limit CPUID Maximum The CPUID instruction of some newer CPUs will return a value greater than 3. The default is disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur.
  • Page 41 VIPA HMI PPC021 CE BIOS setup Advanced Legacy USB Support Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of periph- eral devices.
  • Page 42 BIOS setup VIPA HMI PPC021 CE Advanced Serial Port Enables or disables the serial port. Disabled - Serial port is not available Enabled - (default) Serial port is available Change Settings Selects an optimal setting for the super IO device.

  • Page 43: Chipset

    VIPA HMI PPC021 CE BIOS setup Chipset 4.4 Chipset This section is used to configure the system based on the specific features of the chipset. CAUTION! Setting incorrect field values may cause the system to malfunction. Host Bridge Display the memory information.
  • Page 44 BIOS setup VIPA HMI PPC021 CE Chipset IGFX-Boot Type This field is used to configure which video device will be activated during POST. This has no effect if external graphics present. The options are CRT, LVDS, DP-LVDS + CRT. Backlight Control Select The available options are ‘Pyroelectric sensor’...

  • Page 45: Boot

    VIPA HMI PPC021 CE BIOS setup Boot Fixed Graphics Memory This field is used to configure the memory size of the fixed graphics, Size the options are 128MB and 256MB. Submenu "South This field is used to configure the south bridge chipset.

  • Page 46: Security

    BIOS setup VIPA HMI PPC021 CE Security Setup Promt Timeout This section configures the number of seconds to wait for the setup activation key. Bootup NumLock State This allows you to determine the default state of the numeric keypad. On - (default) The function of the numeric keypad is the number keys.

  • Page 47: Save And Exit

    VIPA HMI PPC021 CE BIOS setup Save and exit If ONLY the User's If only the User's password is set, then this is a power on password password is set and must be entered to boot or enter setup. In Setup the user will have administrator rights.
  • Page 48 BIOS setup VIPA HMI PPC021 CE Save and exit Discard Changes and To exit the Setup utility without saving the changes, select this field Exit then press [Enter]. You may be prompted to confirm again before exiting. The BIOS setup exits and the POST continued.

  • Page 49: Installation Guidelines

    VIPA HMI PPC021 CE Installation guidelines Basic rules for the EMC-equitable assembly of installations Installation guidelines 5.1 Basic rules for the EMC-equitable assembly of installations General The installation guidelines contain information about the interference free deployment of a PLC system. There is the description of the...
  • Page 50 Installation guidelines VIPA HMI PPC021 CE Basic rules for the EMC-equitable assembly of installations Coupling mechanisms The following table shows the four different coupling mechanisms, and interference their causes and possible interference sources. sources Coupling mechanism Cause Typical source Galvanic coupling...

  • Page 51: Emc-Equitable Assembly

    VIPA HMI PPC021 CE Installation guidelines EMC-equitable assembly Basic rules for EMC In the most times it is enough to take care of some elementary rules to guarantee the EMC. Please regard the following basic rules when installing your PLC.

  • Page 52: Emc-Equitable Cabling

    Installation guidelines VIPA HMI PPC021 CE EMC-equitable cabling Grounding means the conducting connection of all inactive metal parts. The sum of all interconnected inactive parts is called ground. Inactive parts are all conductive parts electrically separated from all active parts by means of a basic isolation and that may only get voltage in case of an error.
  • Page 53 VIPA HMI PPC021 CE Installation guidelines EMC-equitable cabling Group A Group B Group C Group D Group A Group B Group C Group D The lines may be installed in common bundles or cable trusses. The lines have to be installed in different bundles or cable trusses (without min.
  • Page 54 Installation guidelines VIPA HMI PPC021 CE EMC-equitable cabling Equipotential bonding Potential differences can occur between different sections when con- trollers and peripheral equipment are connected by means of non-iso- lated connections or the screens of screened cables are connected at both ends and grounded on different sections of the plant.

  • Page 55: Special Precautions Providing High Noise Immunity

    VIPA HMI PPC021 CE Installation guidelines Special precautions providing high noise immunity You should always use metallic or metallised covers for serial data lines. Connect the screen of the data line to the cover. Do not con- nect the screen to PIN 1 of the connector! In case of stationary opera-...
  • Page 56 Installation guidelines VIPA HMI PPC021 CE Special precautions providing high noise immunity Connections of DC-activated Connections of AC-activated inductors inductors using a diode using a Z-diode using a varistor using RC-net- work Power outlet for PGs Every cubicle must be provided with a power outlet for the PU. These outlets must be wired to the distribution system, which is also used to connect the neutral conductor for the cubicle.

  • Page 57: Checklist For The Emc-Compliant Installation Of Controllers

    VIPA HMI PPC021 CE Installation guidelines Checklist for the EMC-compliant installation of controllers 5.5 Checklist for the EMC-compliant installation of controllers EMV-measures Space for Notes Connection of the inactive parts You should take special care to check the connections of:...
