E+E Elektronik EE364 Quick Manual

Quick Guide

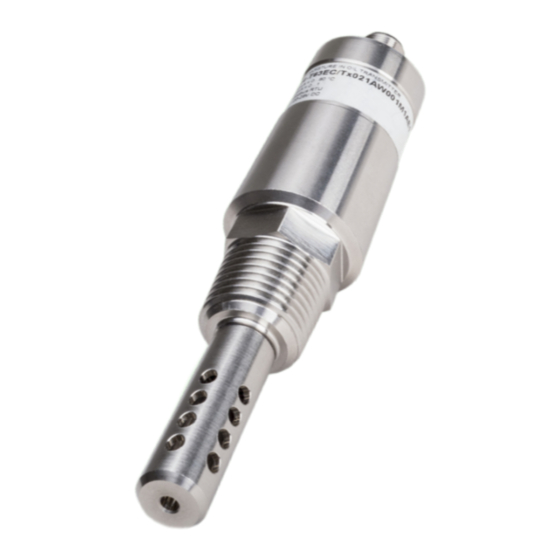

EE364 - Moisture in Oil Sensor
PLEASE NOTE
Find this document and further product information on our website at www.epluse.com/ee364.

Electrical Connection

WARNING
Incorrect installation, wiring or power supply may cause overheating and therefore personal injuries or damage to property.
For correct cabling of the device, always observe the presented wiring diagram for the product version used.
The manufacturer cannot be held responsible for personal injuries or damage to property as a result of incorrect handling,
installation, wiring, power supply and maintenance of the device.
5
4
6
Output 1: 4-20 mA
7 8 3
Output 2: 4-20 mA
1 2
EE364
M12 device plug
front view
PLEASE NOTE
In order to comply with the EMC Directive 2014/30/EU, a shielded cable must be used.

Setup and Adjustment

The EE364 is ready to use and does not require any user configuration. The factory setup of EE364 corresponds to the type
number ordered. If needed, the user can change the factory setup or make an adjustment with the help of the optional Modbus
configuration adapter and the free EE-PCS Product Configuration Software (www.epluse.com/configurator).

Installation

PLEASE NOTE
Continuous oil flow allows for short response time. In such installations, place the sensor with the perforated filter at least
partially within the oil.

Dimensions

mm (inch)
ISO
34 (1.36)
G1/2"
51 (2)
10 ...28V DC 10V+0.02*R
*) *)
8
4
mA
5
mA
6
3
2
10 ...28V DC 10V+0.02*R
*) *)
1
3
4
5
140 (5.5)
92 (3.6)
AD27
77 (3)
89 (3.5)
Output 1: 4-20 mA
Output 2: 4-20 mA
4
L
5
+
-
1
EE364 OEM Style
RS485 only
RS485 A
M12 device plug
RS485 B front view
L
+
-
RS485 A
RS485 B
34 (1.36)
G1/2"
NPT
51 (2)
1/2"NPT
10 ...28V DC
*)
8
4
5
mA
6
3
2
3
10 ...28V DC
*)
1
3
2
4
5
140 (5.5)
92 (3.6)
AD27
77 (3)
89 (3.5)
AD22
74 (2.9)
10V+0.02*R
*)
L
+
-
mA
RS485 A
RS485 B
10V+0.02*R
*)
L
+
-
RS485 A
RS485 B
