E+E Elektronik EE371 Quick Manual

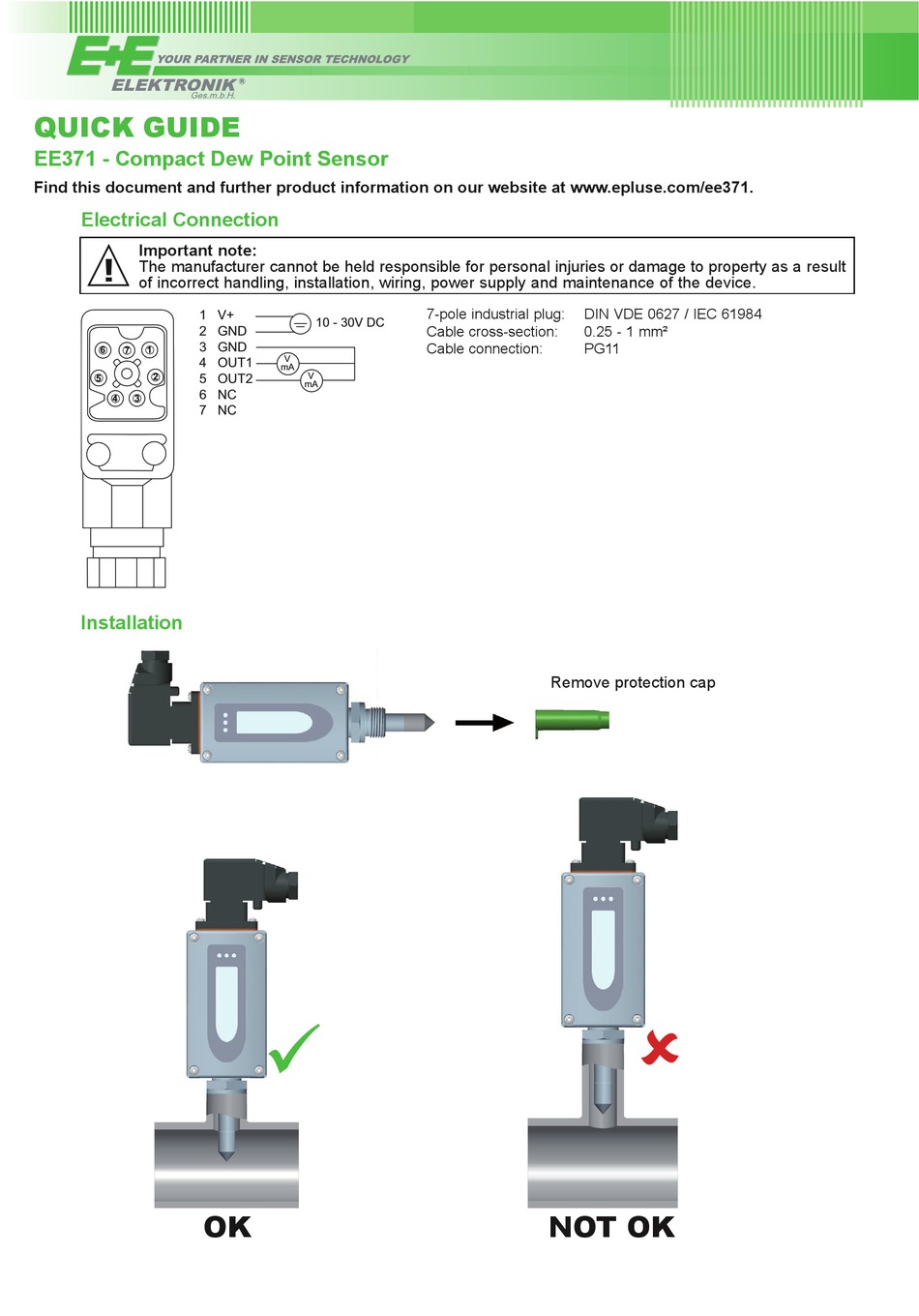

QUICK GUIDE

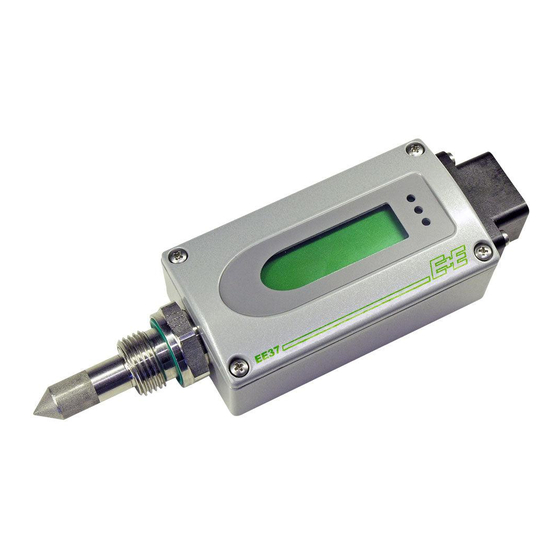

EE371 - Compact Dew Point Sensor
Find this document and further product information on our website at www.epluse.com/ee371.
Electrical Connection
Important note:
The manufacturer cannot be held responsible for personal injuries or damage to property as a result
of incorrect handling, installation, wiring, power supply and maintenance of the device.
1 V+
2 GND
3 GND
6 1
7
4 OUT1
5 OUT2
2
5
6 NC
3
4
7 NC
Installation
1
6 7
2
5
3
4
OK
7-pole industrial plug:
10 - 30V DC
Cable cross-section:
Cable connection:
V
mA
V
mA
1 V+
10...30V DC
2 GND
3 NC11
4 NC12
5 NC21
6 NC22
7 not connected
ü
DIN VDE 0627 / IEC 61984
0.25 - 1 mm²
PG11
Remove protection cap
û
NOT OK
