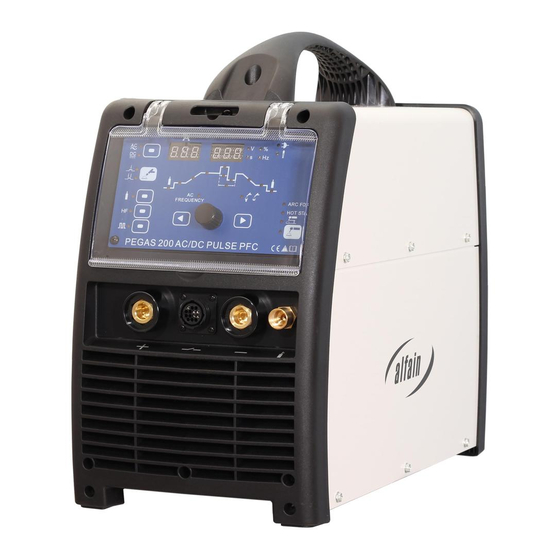

- Page 1 WELDING INVERTER PEGAS 200 AC/DC PULSE PFC OPERATING MANUAL ALFA IN a.s. © www.alfain.eu PEGAS 200 AC-DC PULSE PFC manual ENG 03...
-
Page 2: Table Of Contents
GETTING STARTED ................10 TWO STROKE AND FOUR STROKE IN TIG MODE ....... 13 BASIC SETTINGS FOR TIG WELDING ..........14 ROUTINE MAINTENANCE & INSPECTION ..........14 10. STATEMENT OF WARRANTY .............. 15 11. DISPOSAL ..................... 16 ALFA IN a.s. © www.alfain.eu... -
Page 3: Introduction
3/16 1. INTRODUCTION Congratulations on your new ALFA IN product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This Operating Manual has been designed to instruct you on the correct use and operation of your ALFA IN product. -
Page 4: Safety Instructions And Warnings
THERE IS A VERY HIGH RISK OF EXPLOSION. The operator must be aware of all the special regulations which he needs to conform to when welding in enclosed spaces with a high risk of explosion. ALFA IN a.s. © www.alfain.eu... - Page 5 The welding device is in terms of interference designed primarily for industrial areas. It meets the requirements of EN 60974-10 class A and it isn’t designed for using in residential areas, where the electrical energy is supplied by public ALFA IN a.s. © www.alfain.eu...
-
Page 6: Technical Data
25%=200 ta=40 °C ALFA IN continuously strives to produce the best product possible and therefore reserves the right to change, improve or revise the specifications or design of this or any product without prior notice. Such updates or changes do not entitle the buyer of equipment previously sold or shipped to the corresponding changes, updates, improvements or replacement of such items. -
Page 7: Equipment
Torch PARKER SGT 26 8m 35-50 FX AERO 26FSL8AUD Torch PARKER SGT 26 8m 35-50 FX AERO UD 6008 Pressure Reducer FIXICONTROL Ar 2 manometers GCE 5.0174 Foot Pedal Remote CTRL 3 m PEGAS incl. Connector ALFA IN a.s. © www.alfain.eu... -
Page 8: Operator Controls
LED ratio of the pulse current and the base current . 5 – 100 %. Default 5 %.Just for the pulse mode. Display Voltage, %, time and Hz. LED Main Welding Current in the pulse mode. 5 – 200 A DC, 10 – 200 TIG AC ALFA IN a.s. © www.alfain.eu... - Page 9 LED HF. If illuminated the HF ignition was set. LED Gas Test. If illuminated the mode of setting the gas flow was selected (by means of the gas valve on the gas cylinder). To turn it ALFA IN a.s. © www.alfain.eu...
-
Page 10: Getting Started
Prevent touching the electrode any metal material for in this mode the terminals 42 and 44 are under current. 7. Insert the coated electrode into the electrode holder, connect the clamps of the ground cable to the welding piece and you may start welding. ALFA IN a.s. © www.alfain.eu... - Page 11 The following table describes the influence setting the clearance effect. Clearance effect Value 20-30% Value 50% Shape of the current curve Penetration Deep Shallow Level of wear of the of Smaller Bigger ALFA IN a.s. © www.alfain.eu...
- Page 12 To reach the maximal current limited by potentiometer P2 requires to gently pressing to the lowest position of the stepping surface P1. The set current will be displayed on the current display 3. 3. The welding process ends after releasing the stepping surface P1. ALFA IN a.s. © www.alfain.eu...
-
Page 13: Two Stroke And Four Stroke In Tig Mode
To enter the second welding current press the torch button for a short time and release it. To get back to the main welding current press the torch button for a short time and release it. ALFA IN a.s. © www.alfain.eu... -
Page 14: Basic Settings For Tig Welding
Welder. If these parts are damaged for any reason, replacement is recommended. CAUTION Do not blow air into the welder during cleaning. Blowing air into the welder can cause metal particles to interfere with sensitive electronic ALFA IN a.s. © www.alfain.eu... -
Page 15: Statement Of Warranty
3. ALFA IN will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the warranty period. -
Page 16: Disposal
ALFA IN a.s. © www.alfain.eu...
