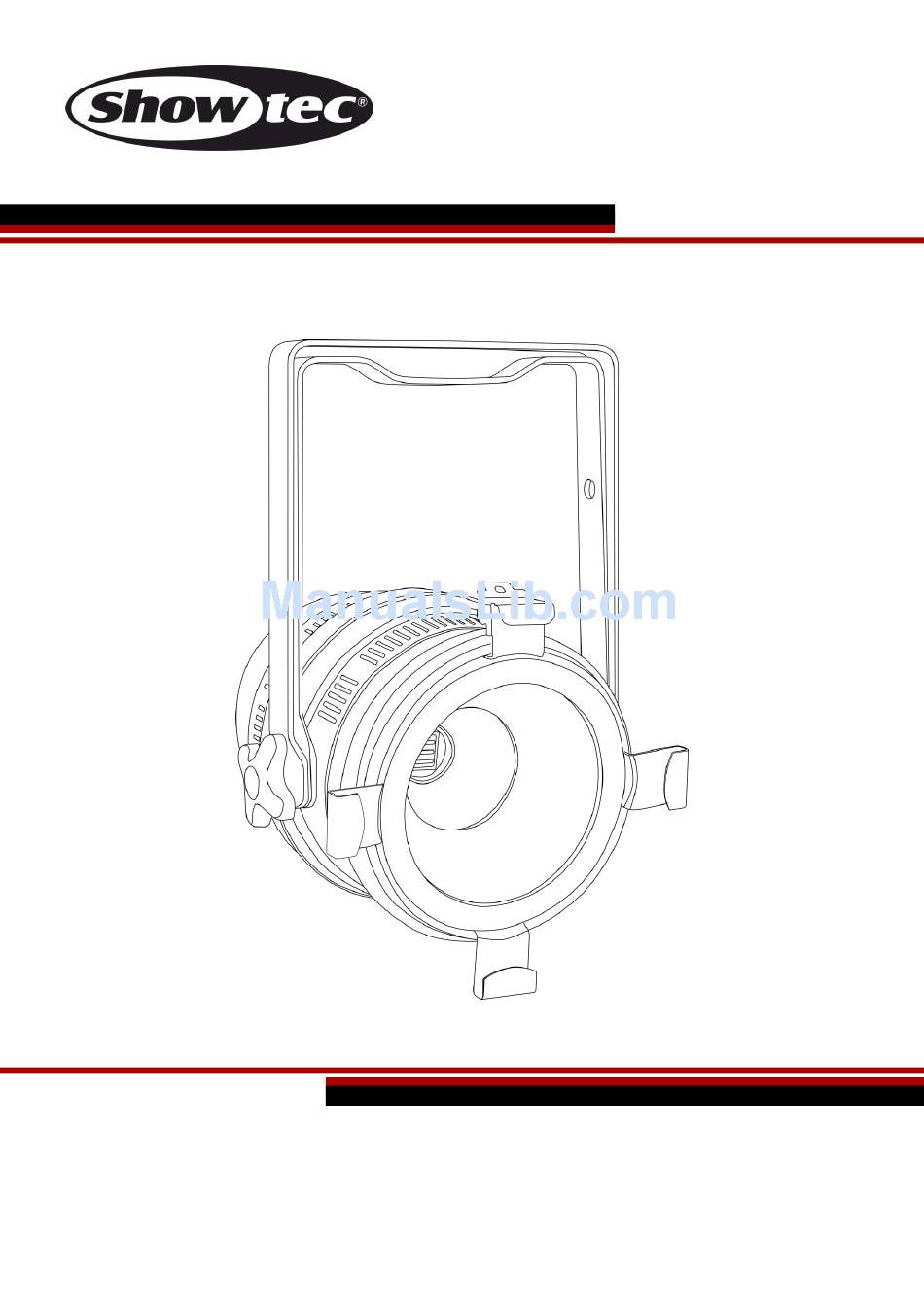

- Page 1 MANUAL ENGLISH LED Par 64 COB RGBW 200W V1 Ordercode: 43305 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
LED Par 64 COB RGBW 200W Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside.................................. -
Page 3: Warning
LED Par 64 COB RGBW 200W Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
LED Par 64 COB RGBW 200W • Repairs, servicing and electric connection must be carried out by a qualified technician. • WARRANTY: Till one year after date of purchase. Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. -
Page 6: Connection With The Mains
LED Par 64 COB RGBW 200W The LED Par 64 COB RGBW can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
LED Par 64 COB RGBW 200W Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

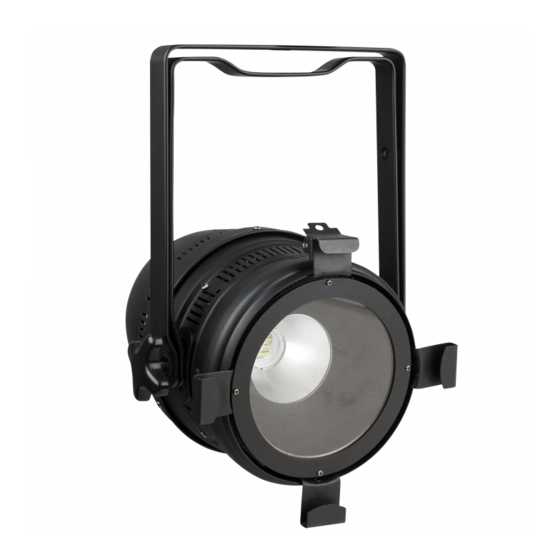

LED Par 64 COB RGBW 200W Description of the device Features The LED Par 64 COB RGBW is a compact light effect with high output and great effects. Light source: 1 x 200W RGBW COB LED Preprogrammed LEE color presets ... -
Page 9: Backside
LED Par 64 COB RGBW 200W Backside Fig. 02 05) LCD Display + 3 Menu buttons 06) Fuse T3,15AL/250V 07) Grey Pro Power connector OUT 08) 3-pin DMX signal connector OUT 09) 3-pin DMX signal connector IN 10) Blue Pro Power connector IN... -
Page 10: Control Modes
LED Par 64 COB RGBW 200W Control Modes There are 3 modes: • Built-in programs • Manual Mode • DMX-512 (4CH, 8CH or 15CH) One LED Par (Built-in programs and Manual Mode) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 11: Fixture Linking
LED Par 64 COB RGBW 200W Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
LED Par 64 COB RGBW 200W The LED Par 64 COB RGBW can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MODE button C) UP button D) DOWN button Fig. -
Page 13: Menu Overview
LED Par 64 COB RGBW 200W Menu Overview The LED Par 64 COB RGBW will only show its version number at start-up ! Ordercode: 43305... -
Page 14: Main Menu Options
LED Par 64 COB RGBW 200W Main Menu Options DMX-512 Mode Channel Mode Program Speed Built-in programs Sound-controlled Mode Static Color Mode Strobe Green Blue White Color Mode (LEE + Kelvin) The LED Par 64 will automatically detect the presence of a DMX signal. -
Page 15: Dimmer Green
LED Par 64 COB RGBW 200W 4. Dimmer Green With this menu you can set your desired dim value. 01) Press the MODE button, until the display shows 02) Press the Up/Down buttons to choose 255 different dimmer settings. 5. Dimmer Blue With this menu you can set your desired dim value. -
Page 16: Color Mode (Lee + Kelvin)
LED Par 64 COB RGBW 200W 12. Color Mode (LEE + Kelvin) With this menu, you can set a specific color. 01) Press the MODE button until the display shows 02) Press the UP/DOWN buttons to choose one of the following 38 color presets:... -
Page 17: Channels
LED Par 64 COB RGBW 200W 8 channels Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 3 – Green Dimmer must be open... - Page 18 LED Par 64 COB RGBW 200W Channel 8 – Blue Fine Dimmer must be open 0-255 Gradual adjustment Blue, from 0-100% Channel 9 – White Dimmer must be open 0-255 Gradual adjustment White, from 0-100% Channel 10 – White Fine...
-
Page 19: Maintenance
Suspect three potential problem areas as: the power supply, the LED, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LED. Return the LED Par to your Showtec dealer. 03) The fuse. Replace the fuse. See page 18 for replacing the fuse. -
Page 20: No Response To Dmx
LED Par 64 COB RGBW 200W No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 21: Product Specifications
LED Par 64 COB RGBW 200W Product Specifications Model: Showtec LED Par 64 COB RGBW Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 210W max @FO Refresh rate 400Hz DMX linking: 30pcs Protection rate: IP-20 Fuse: T3,15AL/250V Dimensions: 282 x 270 x 385 mm (LxWxH) -
Page 22: Dimensions
LED Par 64 COB RGBW 200W Dimensions Ordercode: 43305... -
Page 23: Notes
LED Par 64 COB RGBW 200W Notes Ordercode: 43305... - Page 24 ©2015 Showtec...
