Installing the Device
2.4 Connecting Power
2.
3.
4.
5.
2.4
Connecting Power
The RUGGEDCOM RMC8388 supports a single integrated high AC/DC power supply, a
48 V low DC power supply, and a 24 V low DC power supply.
Before installing the device, note the following:
•
•
•
14
Panel Adapter
1
Screw
2
Figure 2.3
Installing the Panel Adapters
For both adapters, align the slots with the screws and then slide the adapters
onto the device.
Tighten the screws to secure the adapters.
Place the device against the panel and align the adapters with the mounting
holes.
1
2
1
Screw
1
Panel Adapter
2

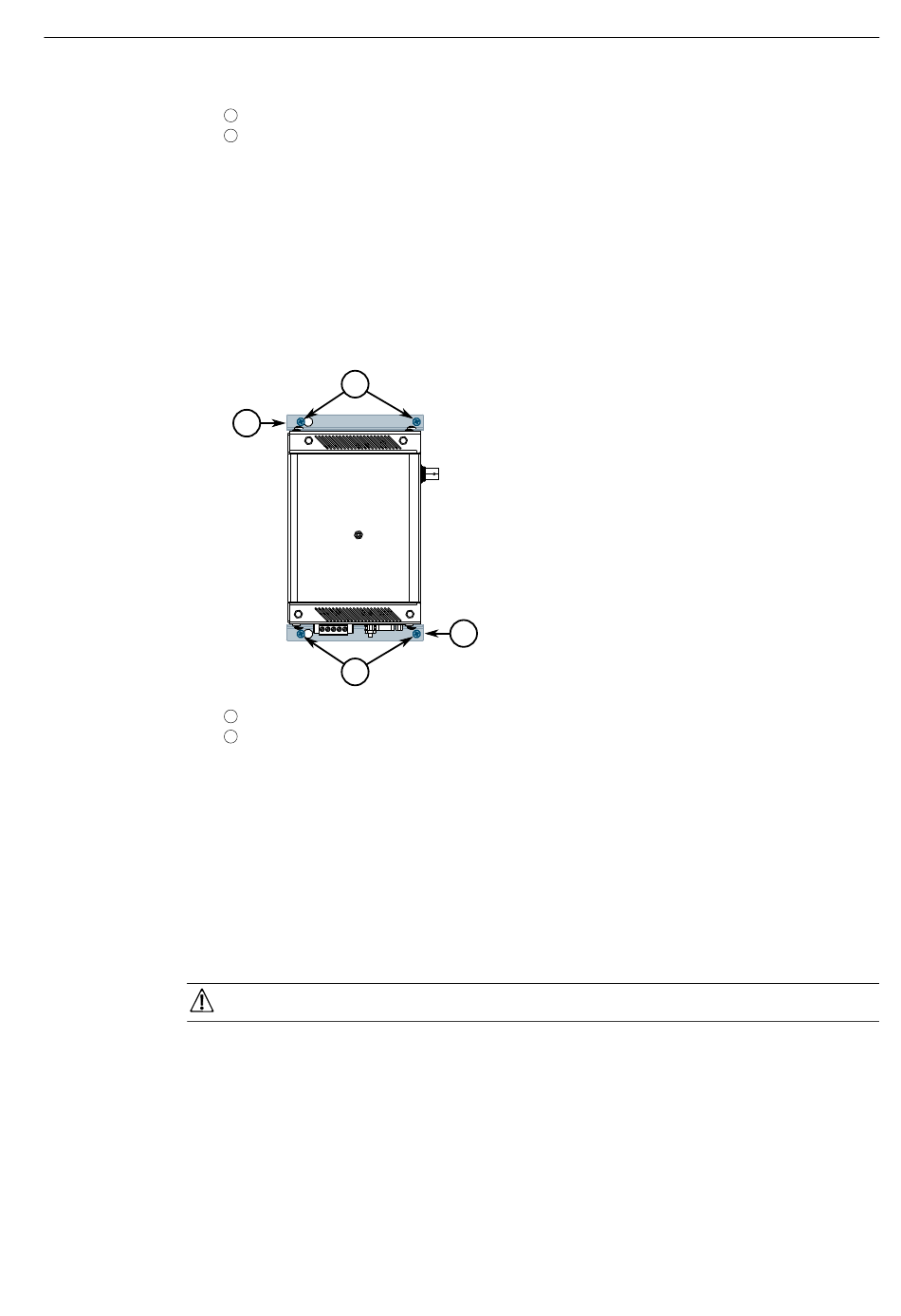

Figure 2.4
Panel Mounting
Using two #6-32 screws for each adapter, secure the device to the panel.
NOTICE
An appropriately rated AC or DC circuit breaker must be installed.
Use minimum #16 gage copper wiring when connecting terminal blocks.
Equipment must be installed according to applicable local wiring codes and
standards.
2
RUGGEDCOM RMC8388
Installation Manual, 11/2022, C79000-G8976-1188-05
