Ø1/2" Beam Shutters

Chapter 4 Specifications

Thorlabs recommends that the SH05 shutter only be controlled by the use of the
Thorlabs SC10 Shutter Controller or the Thorlabs KSC101 K-Cube Solenoid
Controller.
Interface Connector
The interface connector on the SH05 is a 6-pin HRS female connector (HR10A-
7R-6SB(73)). The pin descriptions are as follows:
Pin
1
Monitor Opto Anode
2
Solenoid
3
Solenoid
4
Monitor Opto Cathode
5
Monitor Opto Emitter
6
Monitor Opto Collector
Page 6
Description
Chapter 4: Specifications
6

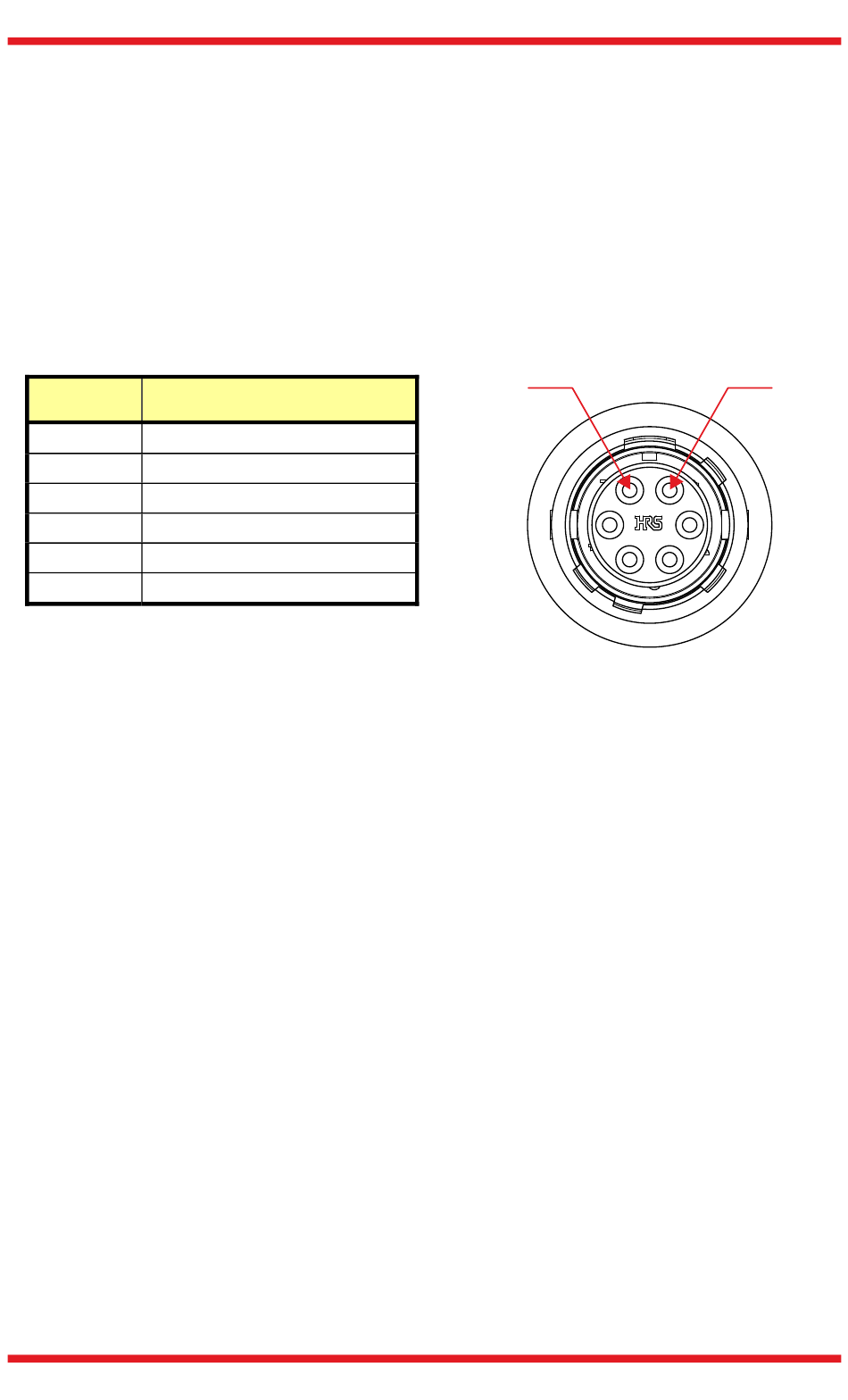

Figure 2
SH05 Connector
1
TTN012375-D02
