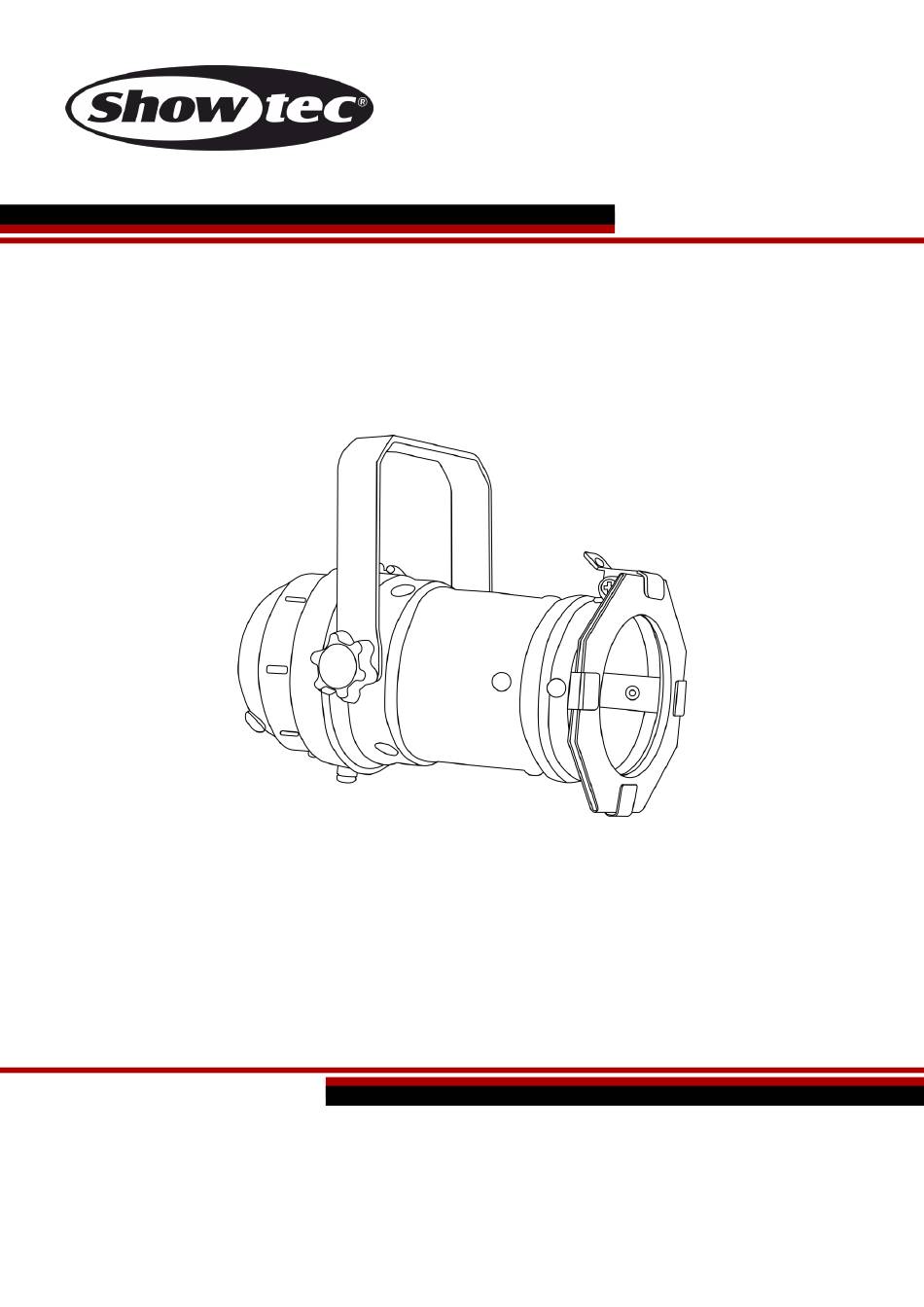

- Page 1 MANUAL ENGLISH Parcan 16 GU10D socket V1 Ordercode: 30115/30116 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Parcan 16 GU10D socket Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories .............................. -
Page 3: Warning
Your shipment includes: ● Showtec Parcan 16 GU10D with 0,4m Schuko power cable ● 1x Filter frame ● User manual... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Parcan 16 GU10D socket Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be bigger than 0,5 meter. -
Page 6: Connection With The Mains
Parcan 16 GU10D socket The Parcan 16 GU10D can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. -
Page 7: Return Procedure
Parcan 16 GU10D socket Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Parcan 16 GU10D socket Description of the device Features The Showtec Parcan 16 GU10D is a small parcan with high output and great effects. • Lamp: PAR 16 • Lamp socket: GU10D • Capacity: max 50W • Input voltage: 230V, 50Hz •... -
Page 9: Lamp Housing
Parcan 16 GU10D socket Lamp housing Fig. 02 03) Power cable 0,4m with Schuko connector 04) Lamp socket GU10D Installation Remove all packing materials from the Parcan 16 GU10D. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Installing The Lamp
Parcan 16 GU10D socket Installing the Lamp The Showtec Parcan 16 GU10D uses the GU10D (ordercode 80418/80425) as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Set Up And Operation
Parcan 16 GU10D socket Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Changing The Lamp
04) If you are unable to determine the cause of the problem, do not modify the Parcan 16 GU10D, as this may damage the unit and the warranty will become void. 05) Return the device to your Showtec dealer. Problem... -
Page 13: Product Specifications
Parcan 16 GU10D socket Product Specifications Model: Showtec Parcan 16 GU10D Input voltage: 230V, 50Hz Capacity: max 50W Lamp socket: GX10D Housing: Die-cast aluminum Cooling: Convection IP rating: IP20 Power cable 0,4m with Schuko connector Filter frame: Included Dimensions: 145 x 104 x 125 mm (LxWxH) -
Page 14: Dimensions
Parcan 16 GU10D socket Dimensions Ordercode: 30115/30116... -
Page 15: Notes
Parcan 16 GU10D socket Notes Ordercode: 30115/30116... - Page 16 ©2016 Showtec...
