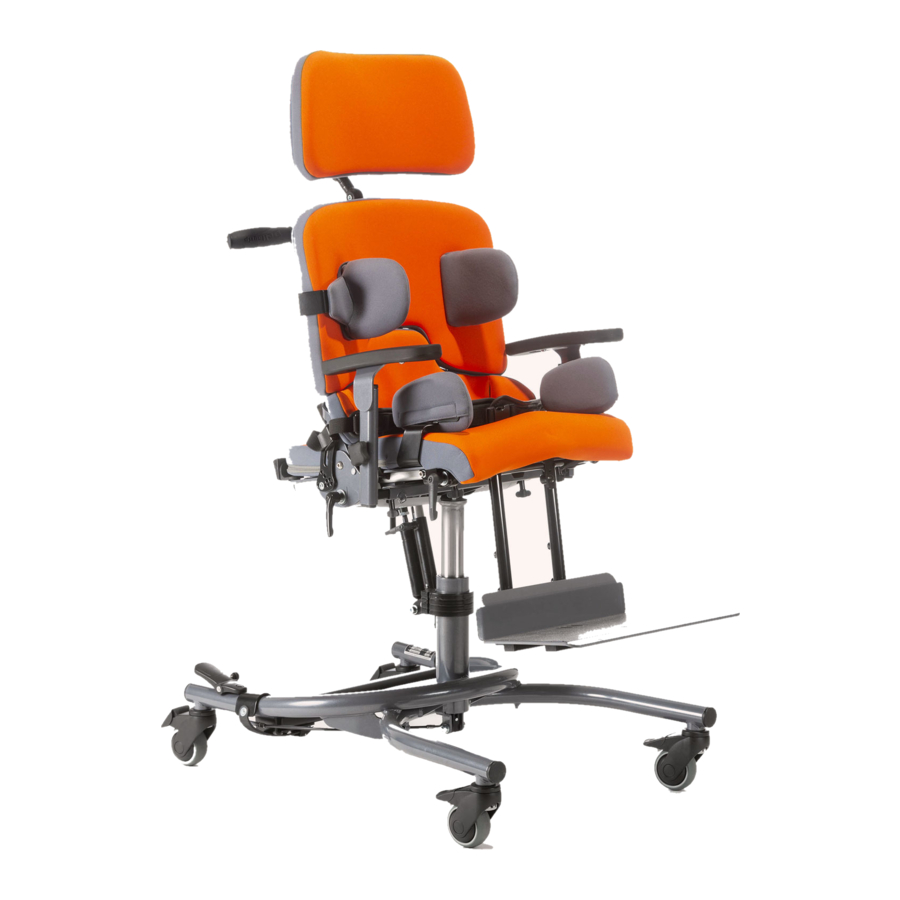

- Page 1 Instructions for use. madita hd. The strong therapy chair.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose ....06 2.3.1 Indications ......................06... - Page 4 Contents. 5.1.2 Disinfection ......................17 5.2 Servicing ........................17 5.3 Maintenance ....................... 17 5.3.1 Maintenance specifications ..............18 5.3.2 Maintenance plan ..................19 5.4 Spare parts .........................20 5.5 Duration of use and re-use .................20 6 . Technical data................21 7.
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Instructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de . -
Page 6: Product Description
The user must not be in the therapy chair while it is being transported! 2.3 Application areas, use according to the intended purpose The madita hd. growing therapy chair is a medical product of risk class 1 and designed for use at home, in nurseries and at school. It can be used for all ages from early childhood to teenage years. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui
• Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the therapy chair if all components have been correctly mounted and adjusted. -
Page 8: List Of Accessories
2. Product description. 2.6 List of accessories • Headrest • Weight (max. 3 weights • Thorax pelotte pads possible) (torso guide) • 4 castors - 100 mm (all with lo- • Reinforced bracket (for cking device) • Wheel base extension thorax pelotte pads) •... -
Page 9: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 10: Seat Angle
3. Settings. 3.2 Seat angle The release lever (A) for the seat angle ad- justment is mounted directly at the gas pres- sure spring and equipped with a child lock. To adjust the angle of the seat unit, first re- lease the clamping lever (B). -
Page 11: Back Height
3. Settings. 3.5 Back height Loosen the cylinder head screw (A) with an Allen key (M8) at the rear and bring the back into the desired height. Tighten the screw connection again after each adjustment! 3.6 Armrests The armrests can be adjusted in height and width. -
Page 12: Foot Support
3. Settings. 3.7 Foot support The angle and height of the foot support (A) can be adjusted. It has a non-slip surface (B) and has 8 slits (C) to attach straps such as foot cuffs or foot positioning aids. In order to adjust the knee angle, please loosen the clamping lever (D) under the seat surface, bring the foot support into the re- quired position and retighten the clamping... -
Page 13: Weight
3. Settings. 3.9 Weight The madita hd. in its basic model is already equipped with a weight (A) of about 8 kg. This is used for additional stabilisation of the therapy chair. In total, up to three weights can be placed, distributed at the front and back on the sub-frame. -
Page 14: Accessories
4. Accessories. 4.1 Headrest The headrest can be adjusted in height, depth and angle. To this end, loosen the three cylinder head screws (A) with an Allen key and bring the headrest into the desired position. After each adjustment, please retighten all screw connections! 4.2 Thorax pelotte pads The thorax pelotte pads (B) can be individu-... -
Page 15: Adjustable Pelvic Guide
4. Accessories. 15 15 4.4 Adjustable pelvic guide The adjustable pelvic guide can be adjusted in width, provides the user with a high level of security and positions the pelvis. At first, loosen the cylinder head screw (A) on the rear of the therapy chair at the bottom edge of the cover. -
Page 16: Knee Abduction Wedge
4. Accessories. 4.6 Knee abduction wedge The knee abduction wedge (A) must be mounted using a quick-release axle at the front of the seat plate. To do this, please press the knob on the quick-release axle, and the abduction part can easily be re- moved or inserted. -
Page 17: Cleaning And Servicing
Please also pay attention to 100% Polyester our general cleaning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 18: Maintenance Specifications
5. Cleaning and maintaining. 5.3.1 Maintenance specifications • Basic cleaning according to manufacturer instructions (see Point 5.1.1) • If necessary, disinfection according to manufacturer instructions (see Point 5.1.2) • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 19: Maintenance Plan
5. Cleaning and servicing. 5.3.2 Maintenance plan Maintenance specifications of the manufacturer (see Point 5.3.1) were car- ried out: Date Company Name signature Any defects or damage found must be repaired by the specialist dealer or the manufacturer before reuse. -
Page 20: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product. -
Page 21: Technical Data
6 . Technical data. Dimensions madita hd. Seat depth 30-42 cm Seat width 28-38 cm Back height with short back 42-52 cm Backrest height with long back 53-63 cm Seat height 46-58 cm Lower leg length 30-48 cm Total width... -
Page 22: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
