HEDS-9930PRGEVB User Guide

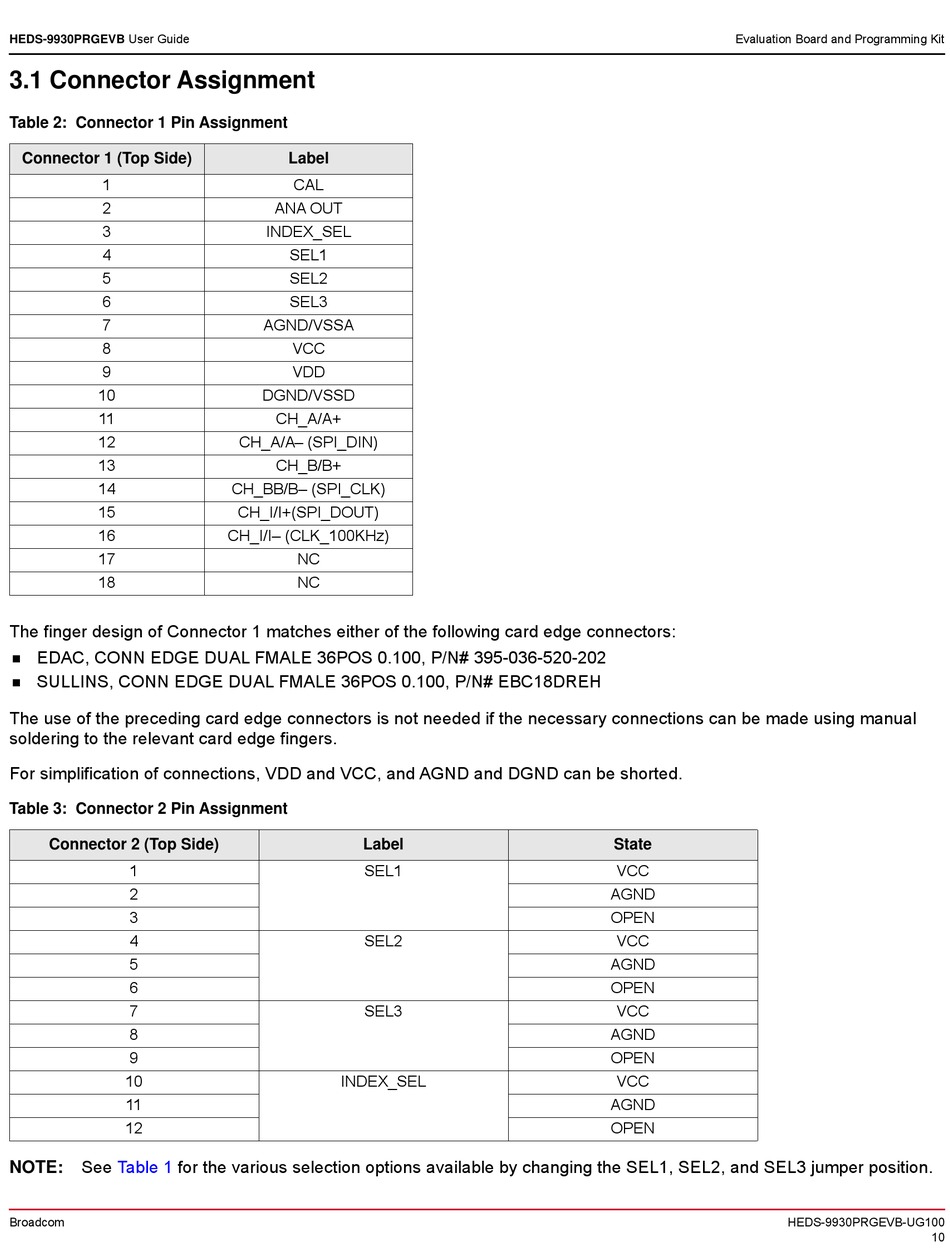

3.1 Connector Assignment

Table 2: Connector 1 Pin Assignment
Connector 1 (Top Side)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
The finger design of Connector 1 matches either of the following card edge connectors:
EDAC, CONN EDGE DUAL FMALE 36POS 0.100, P/N# 395-036-520-202

SULLINS, CONN EDGE DUAL FMALE 36POS 0.100, P/N# EBC18DREH

The use of the preceding card edge connectors is not needed if the necessary connections can be made using manual
soldering to the relevant card edge fingers.
For simplification of connections, VDD and VCC, and AGND and DGND can be shorted.
Table 3: Connector 2 Pin Assignment
Connector 2 (Top Side)
1
2
3
4
5
6
7
8
9
10
11
12
See Table 1 for the various selection options available by changing the SEL1, SEL2, and SEL3 jumper position.
NOTE:
Broadcom
Label
CAL
ANA OUT
INDEX_SEL
SEL1
SEL2
SEL3
AGND/VSSA
VCC
VDD
DGND/VSSD
CH_A/A+
CH_A/A– (SPI_DIN)
CH_B/B+
CH_BB/B– (SPI_CLK)
CH_I/I+(SPI_DOUT)
CH_I/I– (CLK_100KHz)
NC
NC
Label
SEL1
SEL2
SEL3
INDEX_SEL
Evaluation Board and Programming Kit
State
VCC
AGND
OPEN
VCC
AGND
OPEN
VCC
AGND
OPEN
VCC
AGND
OPEN
HEDS-9930PRGEVB-UG100
10
