HEDS-9930PRGEVB User Guide

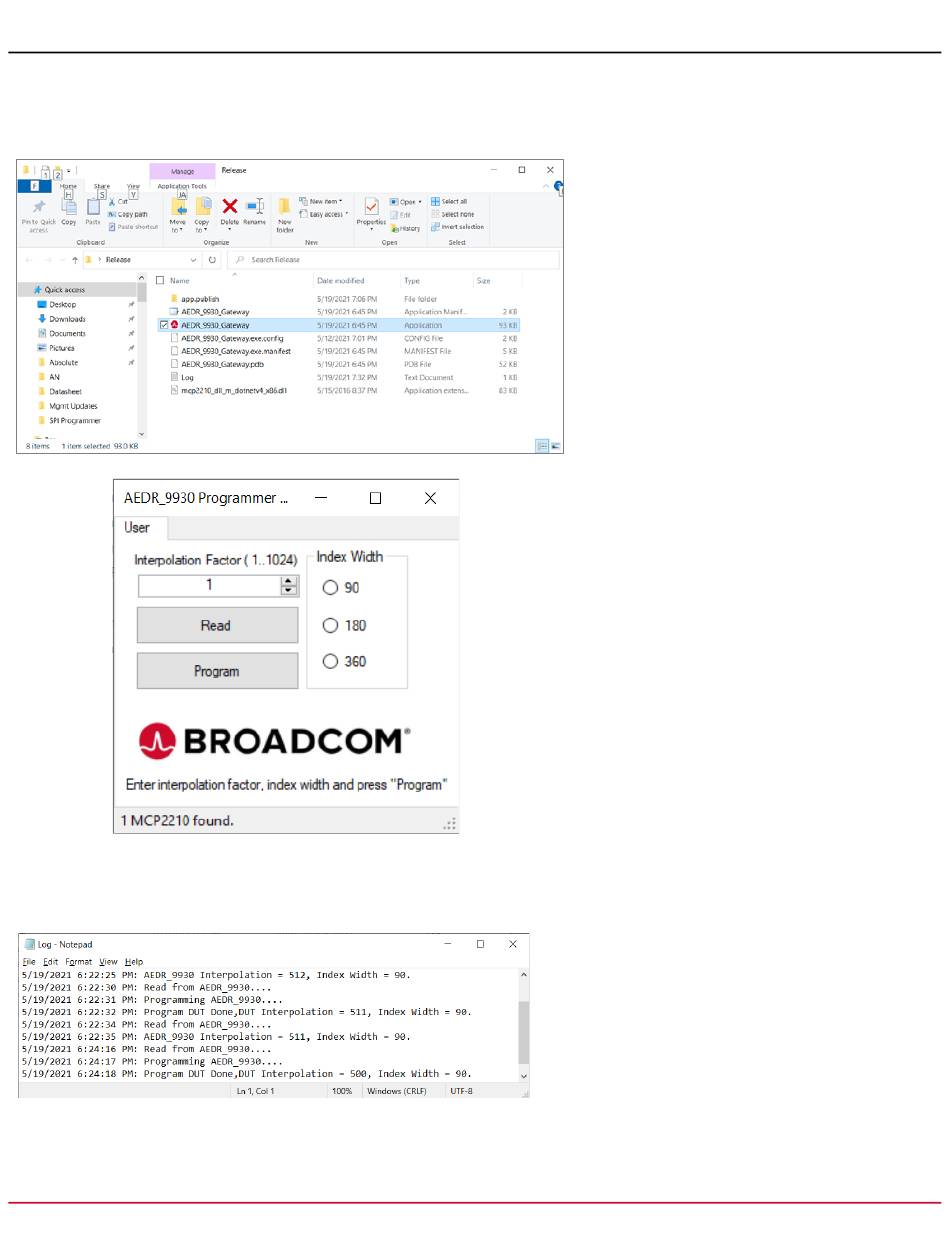

6. Click Read to read back the saved settings from AEDR-9930 encoder ASIC,
a. If the existing settings are read out successfully, the Interpolation Factor and Index Width settings saved message is
displayed as shown in the following example on the left.
b. If the AEDR-9930 is not connected or detected, the program terminates. Refer to the log.txt file in the same folder
to check the failure status.
Broadcom
Evaluation Board and Programming Kit
HEDS-9930PRGEVB-UG100
16
