KROHNE BATCHFLUX 3200 C Supplementary Instructions Manual

Electromagnetic flowmeter for volumetric ad blue filling stations
Hide thumbs
Table of Contents

Advertisement

Quick Links

BATCHFLUX 3200 C
BATCHFLUX 3200 C
BATCHFLUX 3200 C
BATCHFLUX 3200 C
Electromagnetic flowmeter for volumetric Ad Blue filling
stations
Equipment category II 2G, EPL Gb
Type of protection encapsulation "m"
© KROHNE 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C- R01- en [APPR MA 821166 ]
Supplementary Instructions
Supplementary Instructions
Supplementary Instructions
Supplementary Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATCHFLUX 3200 C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KROHNE BATCHFLUX 3200 C

Summary of Contents for KROHNE BATCHFLUX 3200 C

  • Page 1 Supplementary Instructions Supplementary Instructions Supplementary Instructions Electromagnetic flowmeter for volumetric Ad Blue filling stations Equipment category II 2G, EPL Gb Type of protection encapsulation "m" © KROHNE 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C- R01- en [APPR MA 821166 ]...

  • Page 2: Table Of Contents

    CONTENTS BATCHFLUX 3200 C 1 Safety instructions 1.1 General notes ........................3 1.2 EU conformity ........................3 1.3 Approval according to the IECEx scheme ................ 3 1.4 Safety instructions......................4 1.5 Specific conditions of use ....................4 2 Device description 2.1 Device description ......................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS BATCHFLUX 3200 C 1.1 General notes These additional instructions apply to explosion-protected versions of electromagnetic flowmeters in type of protection encapsulation "mb", equipment category II 2 G, EPL Gb. It completes the installation and operating instructions for the non-explosion protected versions.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS BATCHFLUX 3200 C 1.4 Safety instructions If these instructions are not followed, there is a risk of explosion. Assembly, installation, start-up and maintenance may only be performed by personnel trained in explosion protection! CAUTION! The operator or his agent is responsible for observing any additional standards, directives or laws if required due to operating conditions or place of installation.

  • Page 5: Device Description

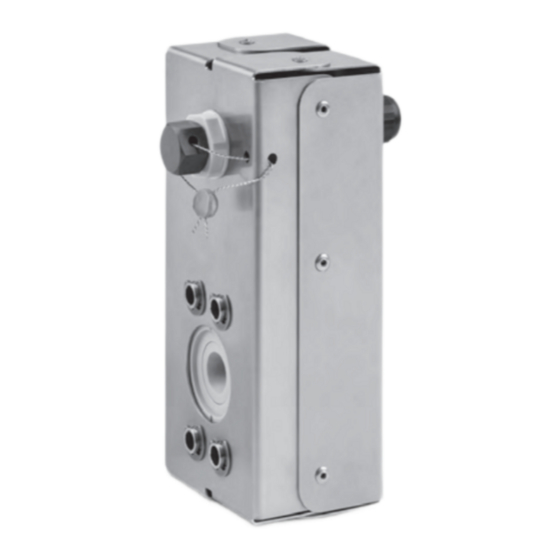

    BATCHFLUX 3200 C 2.1 Device description The electromagnetic flowmeter BATCHFLUX 3200 C is designed exclusively for measuring the volumetric flowrate of electrically conductive non-flammable liquids. The typical installation is within the cabinet of an Ad Blue filling station. The equipment consists of a measuring tube with the process connections, an inner plastic housing where the complete electronic is placed and an outer stainless steel cover housing for protection purpose.

  • Page 6: Device Category

    DEVICE DESCRIPTION BATCHFLUX 3200 C 2.3 Device category The electromagnetic flowmeter is designed in category II 2 G (EPL Gb) for use in zone 1 or zone 2. The inside of the measuring tube is neither permitted for zone 1 nor for zone 2.

  • Page 7: Electrical Data

    DEVICE DESCRIPTION BATCHFLUX 3200 C 2.6 Electrical data The 24 VDC power supply circuit, the RS485 interface and the earth potential (housing) are galvanically conneted within the electromagnetic flowmeter. For both circuits the 24 VDC power supply and the RS485 interface a safety separation from hazardous voltage is required (SELV / PELV).

  • Page 8: Installation

    INSTALLATION BATCHFLUX 3200 C 3.1 Installation Installation and setup must be carried out according to the applicable installation standards (e.g. IEC 60079-14) by qualified personnel trained in explosion protection. The information given in the Installation and Operation Instructions and the Supplementary Installation and Operation Instructions must always be observed.

  • Page 9: Electrical Connections

    ELECTRICAL CONNECTIONS BATCHFLUX 3200 C 4.1 General notes The circuits are not galvanically isolated from ground (housing). The connecting cable is in conformity with the applicable installation standard EN 60079-14. The temperature rating of the cable is equal to or better than -40 ... +90 °C.

  • Page 10: Operation

    OPERATION BATCHFLUX 3200 C 5.1 Start-up Start-up is only permitted when the electromagnetic flowmeter: • is correctly installed in the system and connected. • has been checked for the proper state with regard to its installation and connection requirements. • is free of explosive atmosphere inside the measuring tube The user of the system must check before start-up in compliance with the national regulations for checks before start-up.

  • Page 11: Service

    SERVICE BATCHFLUX 3200 C 6.1 Maintenance Maintenance work of a safety-relevant nature within the meaning of explosion protection may only be carried out by the manufacturer, his authorised representative or under the supervision of authorised inspectors. To maintain proper condition, regular inspections are required for systems in hazardous areas.
