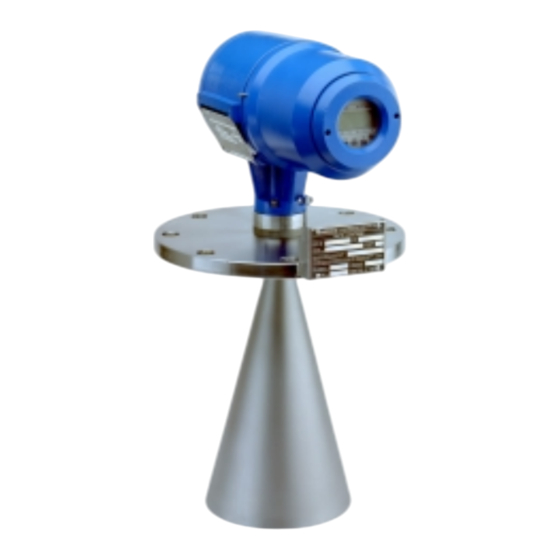

Remote Operation
Instructions
HART Communicator 275
Asset Management Solutions (AMS)
BM 70 A/P, BM 700, BM 702
KROHNE Messtechnik GmbH & Co. KG · Ludwig-Krohne-Str. 5 ! D-47058 Duisburg
1/10
Tel.: 0203-301 0 ! Fax: 0203-301 389 · e-mail: krohne@krohne.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM 70 A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KROHNE BM 70 A

Summary of Contents for KROHNE BM 70 A

  • Page 1 Remote Operation Instructions HART Communicator 275 Asset Management Solutions (AMS) BM 70 A/P, BM 700, BM 702 KROHNE Messtechnik GmbH & Co. KG · Ludwig-Krohne-Str. 5 ! D-47058 Duisburg 1/10 Tel.: 0203-301 0 ! Fax: 0203-301 389 · e-mail: krohne@krohne.de...

  • Page 2: Table Of Contents

    Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART General Information Configuring Instruments for Multidrop IDs and Revision numbers Implementation Peculiarities HART Communicator 275 (HC275) Installation Operating Known HC275 (4.9) Shortcomings Asset Management Solutions (AMS) Installation Operating Known AMS (5.0) Shortcomings KROHNE Messtechnik GmbH &...

  • Page 3: General Information

    Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART 1 General Information The BM 70 A/P, BM 700, BM 702 are all the two-wire transmitters with 4..20mA current output and HART® capability. General characteristics of the BM70 X HART® interface: •...

  • Page 4: Hart Communicator 275 (Hc275)

    5.1 Installation If the BM 70 A/P /700 /702 Device Description is not already installed on the AMS System a so called Installation Kit BM 70 A/P /700 /702 HART AMS is needed (available on floppy disk from KROHNE or as download from KROHNE Internet page).

  • Page 5: Operating

    “wide” configuration (e.g. any corresponding to BM 70 A) to a “narrow” one (e.g. any of BM 702) can lead to a so- called ‘Unknown enumerator’ situation (when transferred value is replaced with ‘**********’ in configuration- “receiver”...

  • Page 6: Known Ams (5.0) Shortcomings

    Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART instrument is in multidrop, changing of the ‘PV is’ value (Primary Variable code) affects only Primary Variable digital value (and corresponding settings) whilst the current output function (‘Function I’ on the “Analog Output”...

  • Page 7: Krohne Messtechnik Gmbh & Co. Kg · Ludwig-Krohne-Str. 5 ! D-47058 Duisburg

    Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART Attachment A BM 70 A/P /700 /702 Menu Tree HC275 1 Level 2 Distance 1 Hardware 3 Conversion 2 Test I 1 Interface Option 4 Reflection 1 Measurements 3 SW Output S...
  • Page 8 Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART Attachment B BM 70 A/P /700 /702 Menu Tree AMS • Level • Distance • Conversion • Reflection • Analog Output • PV Percent of Range • Relay State...
  • Page 9 Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART Attachment B (continued from the previous page) BM 70 A/P /700 /702 Menu Tree AMS Designations: – Optional, depends on device implementation; – Read-only variable; – Local AMS variable, affects only AMS faceplates and configuration tabs and is not read/written from/to instrument.
  • Page 10 Remote Operation Instructions BM 70 A/P, BM 700, BM 702 HART Attachment C AMS Transmitter Modes AMS device mode Hardware Setting of “PV is” “Number of Points” number (Primary Variable code) (in conversion table) BM70 A, BM70 P any, except “SW Output S”...
