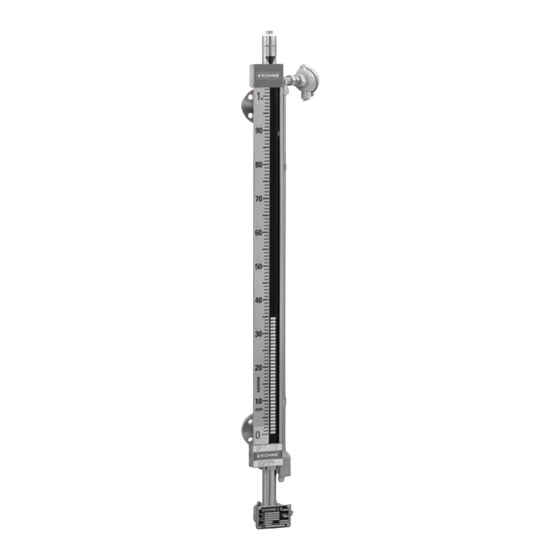

- Page 1 BM26A Supplementary Instructions BM26A-1000 series BM26A-6000 series BM26A-7000 series BM26A-8000 series Supplementary Instructions for UKEX applications © KROHNE 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en...
-
Page 2: Table Of Contents
5.3 Keep the device clean..................... 14 5.4 Manufacturer ........................14 5.5 Returning the device to the manufacturer..............15 5.5.1 General information......................15 5.5.2 Form (for copying) to accompany a returned device............16 6 Notes www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... -
Page 3: General Safety Information
UK-Type Examination Certificate CSAE 21UKEX6534X and the Type Examination Certificate CSAE 21UKEX6533X. You can download the certificates and the manufacturer's declaration of conformity from our internet site. WARNING! Carefully read the UKEX approval certificates. Obey the boundary conditions. 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com... -
Page 4: Equipment Categories
Gas Groups IIA, IIB and IIC. It is certified for applications requiring EPL Gb. INFORMATION! EPL Gb equipment can be installed in: • zone 1, or • zone 2 www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... -
Page 5: Nameplate: Measuring Chamber
VFPP0xxxxxx... or VFPP4xxxxxx... or SFPP9xxxxxx... BM26A-8000 PN250-1500LBS VFPR0xxxxxx... or VFPR4xxxxxx... or SFPR9xxxxxx... BM26A-8000 PN400-2500LBS VFPS0xxxxxx... or VFPS4xxxxxx... or SFPS9xxxxxx... INFORMATION! For more data about the nameplate, refer to the handbook. 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com... -
Page 6: Installation
Make sure that the conductivity of the liquid in the measuring chamber is more than 1000 pS/m. This will help prevent electrostatic discharge. www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... - Page 7 Figure 2-1: ESD warning (on the device nameplate) 1 Text: Warning! Potential electrostatic hazard – see instructions Figure 2-2: Risk of ESD 1 Glass tube (measuring scale) 2 Anti-freeze cover option 3 Painted surfaces 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com...
-
Page 8: Optional Heating/Cooling System
Equipment Protection Level (EPL) necessary for correct installation. The fluid temperature must also be between the minimum and maximum limits for the gasket. For more data, refer to the handbook. www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... -
Page 9: Electric Heat Tracing System
Make sure that the temperature setting of the electric heat tracing system is less than the temperature conditions necessary for the safe operation of mechanical equipment. For more data refer to Ambient and process connection temperatures on page 10 . 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com... -
Page 10: Other Electric Equipment
The temperature values in the tables that follow permit you to use the device safely in hazardous locations. The external surface temperature of the measuring chamber can be as low or as high as the process temperature. www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... - Page 11 If the measuring chamber has a PTFE lining, the maximum process temperature is +200°C / +392°F. If the measuring chamber has PTFE or Aramid gaskets, the maximum process temperature is +250°C / +482°F. 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com...
-
Page 12: Electrical Connections
You must use the ground connection at the bottom of the measuring chamber, on the side of the device nameplate. Makes sure that the electrical connection agrees with the applicable regulations (e.g. EN 60079-14). Figure 3-1: Location of ground terminal 1 Ground terminal www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... -
Page 13: Start-Up
• Does the information given on the nameplate agree with the application? • Did you connect the equipotential bonding system correctly? • Does the thermostat setting of the electric heat tracing system agree with the application? 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com... -
Page 14: Service
• Do not blow dust with compressed air. • Clean the device with a damp cloth. 5.4 Manufacturer This device is made by: KROHNE S.A.S. 2 Allée des Ors – B.P. 98 26103 Romans-sur-Isère CEDEX France If you need to return your device for inspection or repair, obey the instructions that follow. -
Page 15: Returning The Device To The Manufacturer
• to check and ensure, if necessary by rinsing or neutralising, that all cavities are free from such dangerous substances, • to enclose a certificate with the device confirming that it is safe to handle and stating the product used. 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en www.krohne.com... -
Page 16: Form (For Copying) To Accompany A Returned Device
We have flushed out and neutralized all cavities in the device. We hereby confirm that there is no risk to persons or the environment caused by any residual media contained in this device when it is returned. Date: Signature: Stamp: www.krohne.com 10/2021 - 4008956101 - AD UKEX BM26A-x000 R01 en... -
