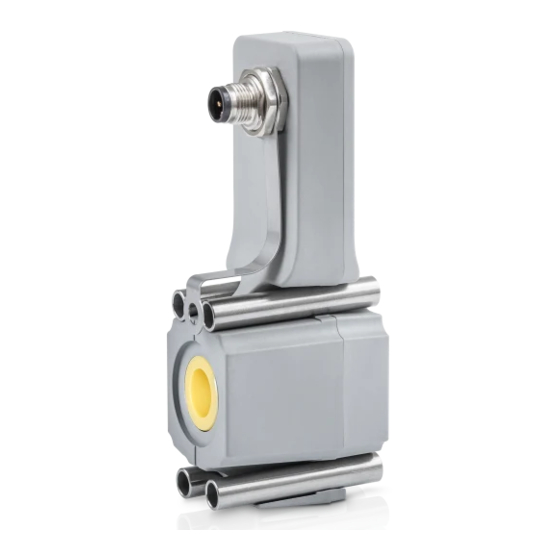

- Page 1 BATCHFLUX 3100 C BATCHFLUX 3100 C BATCHFLUX 3100 C BATCHFLUX 3100 C Quick Start Quick Start Quick Start Quick Start Electromagnetic flowmeter for volumetric filling machines © KROHNE 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en...
-
Page 2: Table Of Contents
3.4 Electrical connection...................... 18 3.4.1 Cable connector M12 - 5 pin ....................18 4 Technical data 4.1 Dimensions and weights ....................19 4.2 Counter flanges ......................20 5 Notes www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 3: Safety Instructions
If you need to return the device to the manufacturer or supplier, please fill out the form • contained in the manual and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 4: Installation
3 Calibration report (on request) INFORMATION! Assembly materials and tools are not part of the delivery. Use the assembly materials and tools in compliance with the applicable occupational health and safety directives. www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 5: Device Description
Product specific information and extensive product specification is available using PICK, the Product Information Center KROHNE web-tool. PICK can be found via the service menu button on the KROHNE.com website. The following compact versions are available: • Only available in size DN 15 Figure 2-2: Device version 2.3 Nameplate (example) -
Page 6: Storage
To facilitate servicing and/or exchanging of the device, please note that: it must be possible to shut off the flow through the pipeline (control valve upstream in • pipeline). Drain the pipeline before removing device (provide drain valve). • www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 7: General Requirements
Do not expose the flowmeter to intense vibration. The flowmeters are tested for a vibration • level in accordance with IEC 61298-3 2.6.1 Vibration Figure 2-4: Avoid vibrations 2.6.2 Magnetic field Figure 2-5: Avoid strong magnetic fileds 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 8: Installation Conditions
2.7.1 Inlet and outlet Figure 2-7: Inlet and outlet section 1 Refer to chapter "Bends in 2 or 3 dimensions" 2 DN 3 Drain valve (to empty pipeline) > 25° www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 9: Bends In 2 Or 3 Dimensions
Figure 2-9: Distance behind a T-section 10 DN 2.7.4 Open feed or discharge Figure 2-10: Installation in front of an open discharge > 25° 1 Drain valve (to empty pipeline) 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 10: Pump
Figure 2-11: Installation behind a pump > 25° 1 Drain valve (to empty pipeline) 2.7.6 Control valve Figure 2-12: Installation in front of a control valve > 25° 1 Drain valve (to empty pipeline) www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 11: Flange Deviation
Max. permissible deviation of pipe flange faces: 0.5 mm / 0.02" CAUTION! Install the device always with the 4 rods or bushes supplied. Non compliance will lead to damaging of the tube or leaking. 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 12: Mounting
Do not use a rotation force on the device once mounted between flanges. The device will be damaged! CAUTION! The (counter) flanges are installed with M6 studs and nuts, positioned and fastened through the four bushing rods. Do not exceed the specified torque! www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 13: Mounting Position
(meter can drain). CAUTION! To ensure a correct measurement, avoid draining or partial filling of the flow sensor during operation. INFORMATION! Vertical down position only in conjunction with a control valve. 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 14: Torques And Pressures
8 [bar] 4 x M8 solid spacer 4 x M6 open bush ½ [inch] 150 [lb] 116 [psi] 4 x M8 solid spacer ½" 4 x M6 open bush www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 15: Temperatures
3 Temperature area for continuous process 4 Temperature area for cleaning, up to 1 hour INFORMATION! For more information on temperatures, refer to the relevant Manual or the Technical specifications. 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 16: Electrical Connections
(including lines of outdoor installations). CAUTION! This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 17: Grounding
The installation requires metal piping and flanges on both sides of the process connections to ensure galvanic connection to the liquid. CAUTION! Do not use excessive force to tighten the M12 nut, when connecting the metal ground strip (maximum torque allowed 4 Nm). 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 18: Electrical Connection
Cables for electrical installation are available at request, please contact the supplier. When purchasing cables, make sure the material and protection class are suitable for the installation conditions. Contact the manufacturer support office, for suitable cables options. www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en... -
Page 19: Technical Data
2 Grounding strip - R (radius mounting hole) = 3.1 mm / 0.1 inch Weight: 0.18 kg - 0.39 lbs Dimensions [mm - inches] ± ½ mm - 0.1 DN15 136 22 1/2" 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... -
Page 20: Counter Flanges
BATCHFLUX 3100 C 4.2 Counter flanges The BATCHFLUX 3100 C must be mounted between counter flanges (as shown in the following drawing), to ensure that the device works correctly. Figure 4-1: Flange according DIN 11850 row 2 / DIN 11866 row / EN 10357 Serie A... -
Page 21: Notes
NOTES BATCHFLUX 3100 C 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com... - Page 22 NOTES BATCHFLUX 3100 C www.krohne.com 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en...
- Page 23 NOTES BATCHFLUX 3100 C 09/2020 - 4008472601 - QS BATCHFLUX 3100 - R01 en www.krohne.com...
- Page 24 Engineering, commissioning, calibration, maintenance and training services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
